Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

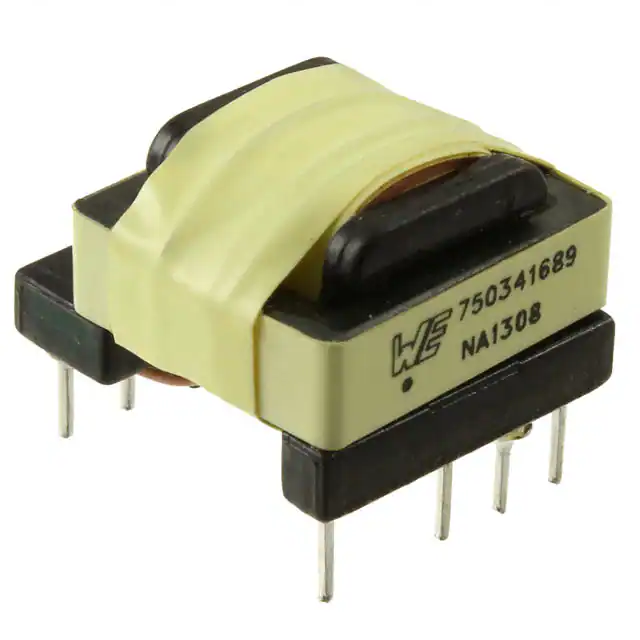

750341689 POWER TRANSFORMER MPS MP020-5 Würth Elektronik	2,107	-	запрос цен	Техническая	Tray	-	Active	For AC/DC Converters	Flyback Converters	MP020-5	Monolithic Power Systems Inc	90 ~ 375V	12V	3500Vrms	1.6mH @ 50kHz	65kHz	-40°C ~ 125°C	Through Hole	0.708 L x 0.740 W (18.00mm x 18.80mm)	0.556 (14.12mm)	0.709 L x 0.740 W (18.00mm x 18.80mm)

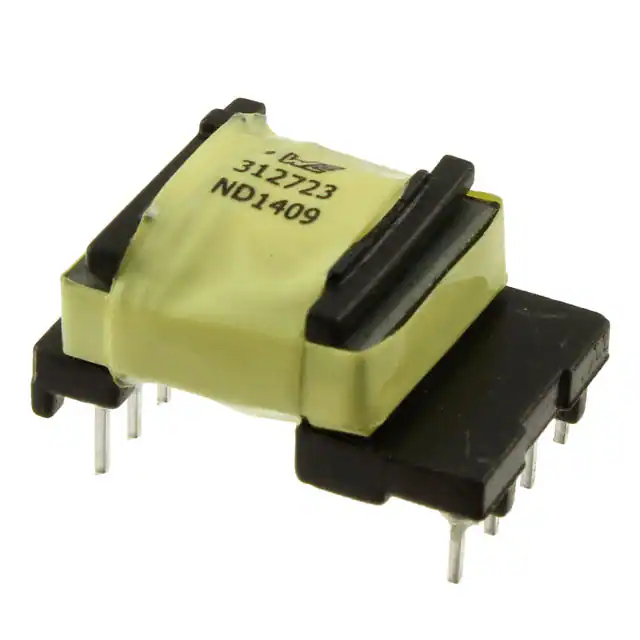

750312723 FLYBACK XFRM WE-FB T-WIN Würth Elektronik	135	-	запрос цен	Техническая	Tray	WE-FB, MID-OLTI	Active	For DC/DC Converters	Flyback Converters	UCC287xx, UCC289xx	Texas Instruments	85 ~ 265V	20V	4500Vrms	925µH @ 10kHz	130kHz	-40°C ~ 125°C	Through Hole	0.560 L x 0.805 W (14.22mm x 20.45mm)	0.415 (10.54mm)	0.560 L x 0.805 W (14.22mm x 20.45mm)
750315445 FLYBACK TRANSFORMER WE-FB Würth Elektronik	180	-	запрос цен	Техническая	Tray	MID-IBTI	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	-	-	2500Vrms	25µH @ 10kHz	300kHz	-40°C ~ 125°C	Surface Mount	-	0.335 (8.50mm)	-
750311439 TRANS FLYBACK LT3748LT3575 37UH Würth Elektronik	2,483	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	37 ~ 57V	12V @ 30mA	1500Vrms	37µH @ 10kHz	250kHz	-40°C ~ 130°C	Surface Mount	-	0.505 (12.83mm)	0.530 L x 0.699 W (13.46mm x 17.75mm)

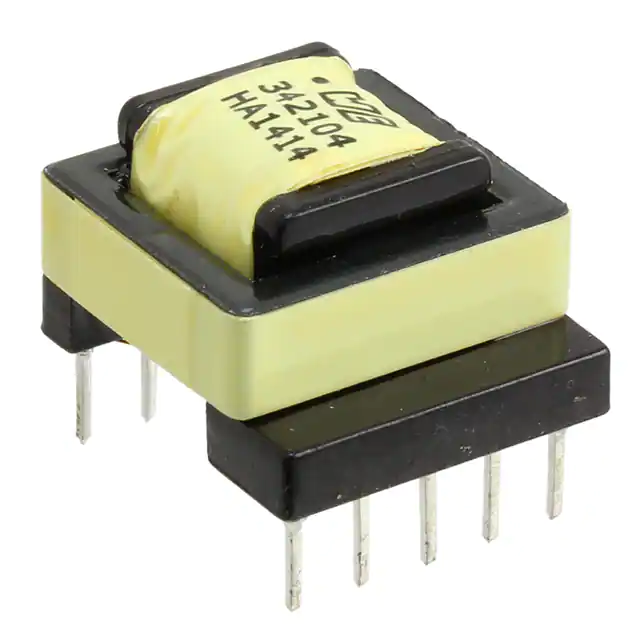

750342104 WE-FB FLYBACK TRANSFORMER Würth Elektronik	2,094	-	запрос цен	Техническая	Tray	WE-FB, MID-OLTI	Active	For AC/DC Converters	Flyback Converters	UCC287xx, UCC289xx	Texas Instruments	85 ~ 264V	12V @ 60mA	3750Vrms	1.3mH @ 50kHz	80kHz	-40°C ~ 125°C	Through Hole	0.665 L x 0.740 W (16.90mm x 18.80mm)	0.529 (13.44mm)	0.665 L x 0.740 W (16.90mm x 18.80mm)

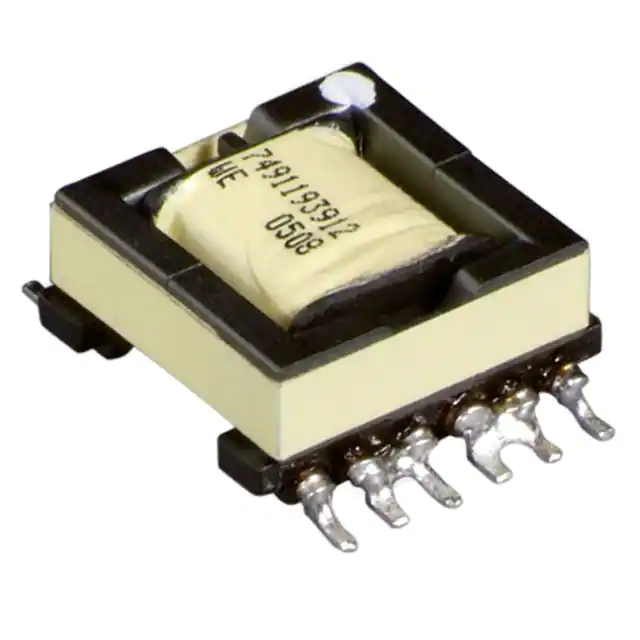

749119350 WE-POE POWER OVER ETHERNET TRANS Würth Elektronik	567	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-PoE	Active	For DC/DC Converters	Power Over Ethernet (PoE)	LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770	Linear Technology, Texas Instruments	36 ~ 57V	-	1500Vrms	120µH @ 100kHz	200 ~ 500kHz	-40°C ~ 125°C	Surface Mount	0.689 L x 0.630 W (17.50mm x 16.00mm)	0.327 (8.30mm)	0.689 L x 0.935 W (17.50mm x 23.74mm)
749196540 TRANSFORMER 3.4UH 1.91A SMD Würth Elektronik	222	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	3.4µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.425 (10.80mm)	0.827 L x 1.169 W (21.00mm x 29.70mm)
VP3-0055-R PULSE XFMR 4.5UH SMD Eaton - Electronics Division	461	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.673 L x 0.878 W (17.10mm x 22.30mm)	0.331 (8.40mm)	-
VPH3-0084-R PULSE XFMR 14.2UH SMD Eaton - Electronics Division	772	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.673 L x 0.878 W (17.10mm x 22.30mm)	0.331 (8.40mm)	-

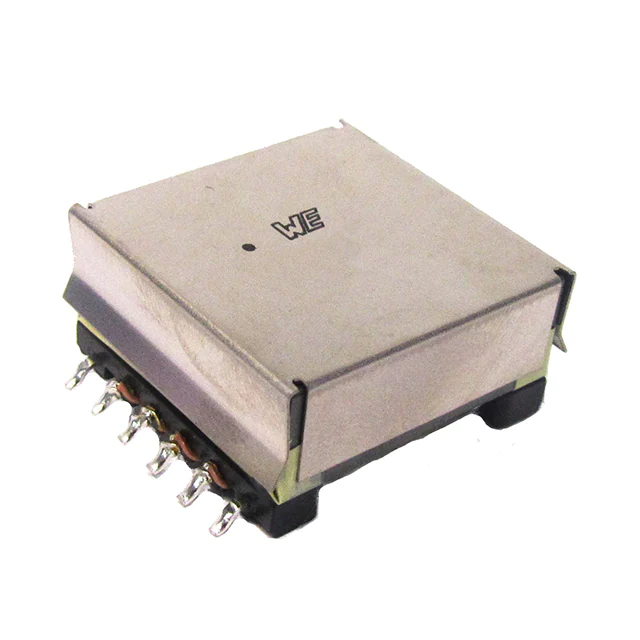

750313417 OFFLINE TRANSFORMER Würth Elektronik	976	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	Flyback Converters	-	Texas Instruments	120 ~ 375V	10V	1500VAC	-	70 ~ 130kHz	-40°C ~ 125°C	Surface Mount	-	0.550 (13.97mm)	-
SIT1253I DC-DC TRANSFORMER, FOR SCALE-IDR Power Integrations	181	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	SIT12xxI	Active	For DC/DC Converters	Flexible	SCALE-iDriver™ Ics	-	-	-	-	50µH @ 100kHz	-	-40°C ~ 105°C	Surface Mount	1.030 L x 0.925 W (26.15mm x 23.50mm)	0.650 (16.50mm)	1.043 L x 0.925 W (26.50mm x 23.50mm)
750313082 FLYBACK TRANSFORMER WE-FB Würth Elektronik	3,020	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	MID-POELT	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	Linear Technology	40 ~ 57V	12V @ 10mA	3000Vrms	37µH @ 10kHz	250kHz	-40°C ~ 125°C	Surface Mount	0.530 L x 0.699 W (13.46mm x 17.75mm)	0.500 (12.70mm)	-
POE13W2X12-R TRANSFRMR 100UH 13W 1.7A 12P SMD Eaton - Electronics Division	140	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PoE	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	Surface Mount	0.709 L x 0.709 W (18.00mm x 18.00mm)	0.404 (10.25mm)	0.709 L x 1.024 W (18.00mm x 26.00mm)
VP3-0084-R PULSE XFMR 6.8UH SMD Eaton - Electronics Division	292	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.673 L x 0.878 W (17.10mm x 22.30mm)	0.331 (8.40mm)	-

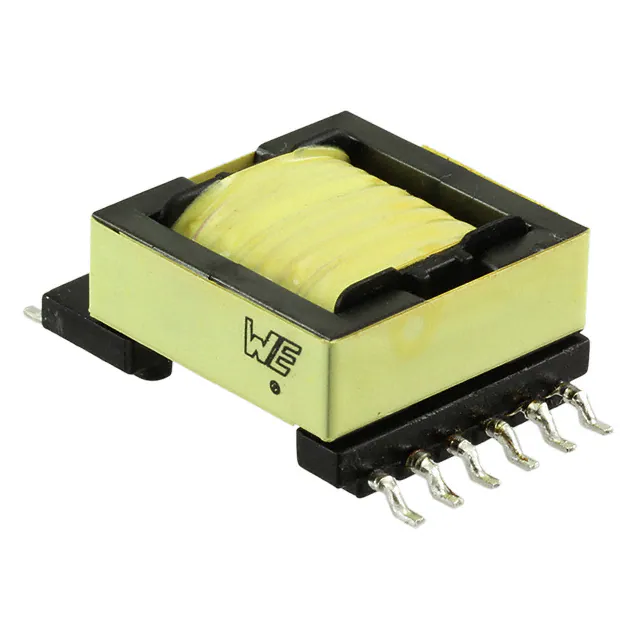

7508116312 SMD OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	579	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 120kHz	-40°C ~ 125°C	Surface Mount	-	0.477 (12.12mm)	0.846 L x 1.331 W (21.50mm x 33.80mm)

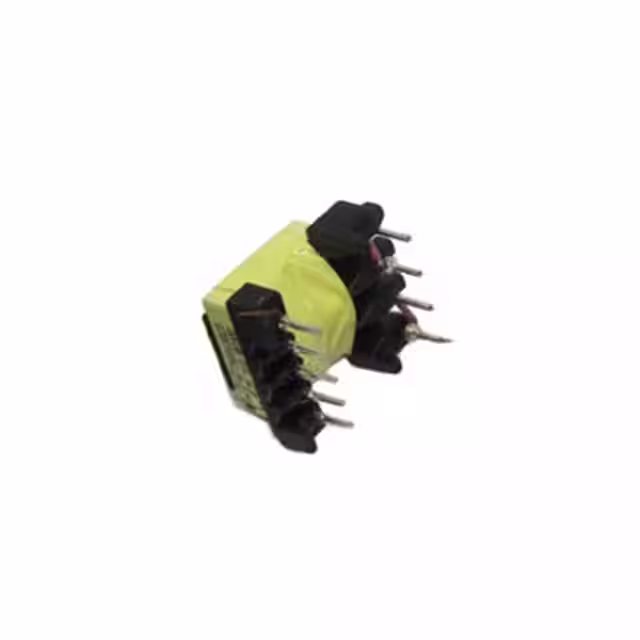

750313739 OFFLINE TRANSFORMER Würth Elektronik	2,819	-	запрос цен	Техническая	Tray	-	Active	-	Flyback Converters	-	Texas Instruments	-	-	-	-	115kHz	-40°C ~ 125°C	Through Hole	-	0.630 (16.00mm)	-
750871110 TRANS OFF LINE POWER ST VIPER28 Würth Elektronik	3,036	-	запрос цен	Техническая	Tray	WE-UNIT, MID-OLSTM	Active	For AC/DC Converters	Flyback Converters	VIPER28	STMicroelectronics	120 ~ 385V	10V @ 10mA	4000Vrms	1.6mH @ 10kHz	-	-40°C ~ 125°C	Through Hole	0.827 L x 0.984 W (21.00mm x 25.00mm)	0.635 (16.13mm)	0.827 L x 0.984 W (21.00mm x 25.00mm)
750315422 FLYBACK TRANSFORMER WE-FB Würth Elektronik	185	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	MID-POELT	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	Linear Technology	9 ~ 57V	10V @ 10mA	1875Vrms	9.07µH @ 10kHz	250kHz	-40°C ~ 125°C	Surface Mount	-	-	-
VPH3-0138-R PULSE XFMR 23.3UH SMD Eaton - Electronics Division	198	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.673 L x 0.878 W (17.10mm x 22.30mm)	0.331 (8.40mm)	-

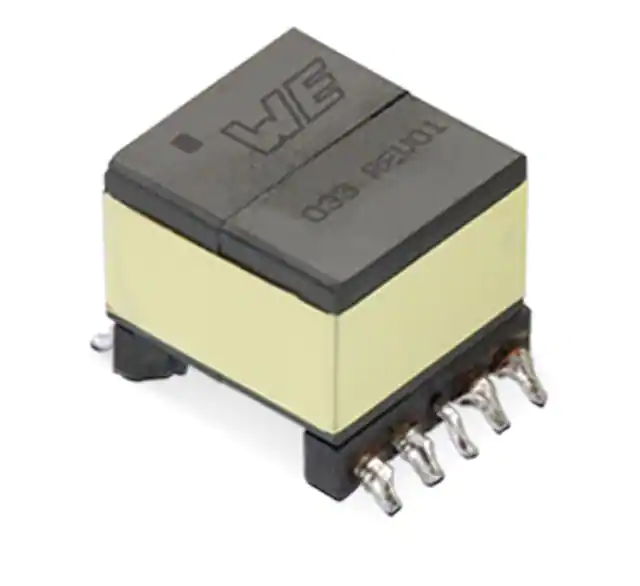

750311385 TRANS FLYBACK LT3748 15UH SMD Würth Elektronik	292	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	18 ~ 60V	14V @ 50mA	1500Vrms	15µH @ 100kHz	210kHz	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)

Общий 1400 Записывать«Предыдущая 1... 4 5 6 789 10 11...70 Следующий»
