+86 15815556552Транзистор - полевой транзистор, MOSFET - отдельный
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

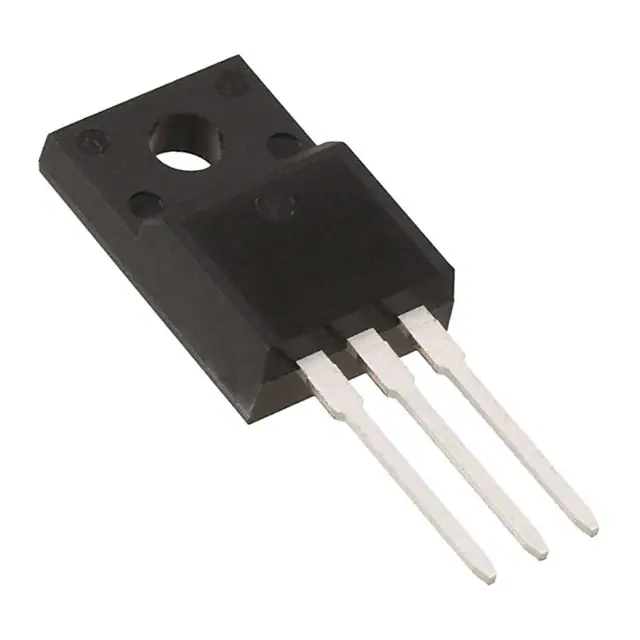

NDFP03N150CGMOSFET N-CH 1500V 2.5A TO220-3 |
3,235 | - |
|
Техническая |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 2W (Ta), 32W (Tc) | 150°C (TJ) | Through Hole |
|
NTMFS5C404NLT3GMOSFET N-CH 40V 52A/370A 5DFN |
2,346 | - |
|
Техническая |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 52A (Ta), 370A (Tc) | 4.5V, 10V | 0.75mOhm @ 50A, 10V | 2V @ 250µA | 181 nC @ 10 V | ±20V | 12168 pF @ 25 V | - | 3.2W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTMTSC4D2N10GTXG100V MVSOA IN DFNW8(PQFN8X8) PAC |
2,189 | - |
|
Техническая |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 21A (Ta), 178A (Tc) | 10V | 4.2mOhm @ 88A, 10V | 4V @ 450µA | 159 nC @ 10 V | ±20V | 10450 pF @ 50 V | - | 3.9W (Ta), 267W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
FQP9N30MOSFET N-CH 300V 9A TO220-3 |
1,014 | - |
|
Техническая |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 9A (Tc) | 10V | 450mOhm @ 4.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 98W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDMC2674MOSFET N-CH 220V 1A/7A 8MLP |
1,532 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 220 V | 1A (Ta), 7A (Tc) | 10V | 366mOhm @ 1A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 1180 pF @ 100 V | - | 2.1W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDD120AN15A0-F085MOSFET N-CH 150V 14A DPAK |
2,497 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 14A (Tc) | 10V | 120mOhm @ 4A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 743 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMS8026SMOSFET N-CH 30V 19A/22A 8PQFN |
2,595 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta), 22A (Tc) | 4.5V, 10V | 4.3mOhm @ 19A, 10V | 3V @ 1mA | 37 nC @ 10 V | ±20V | 2280 pF @ 15 V | - | 2.5W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

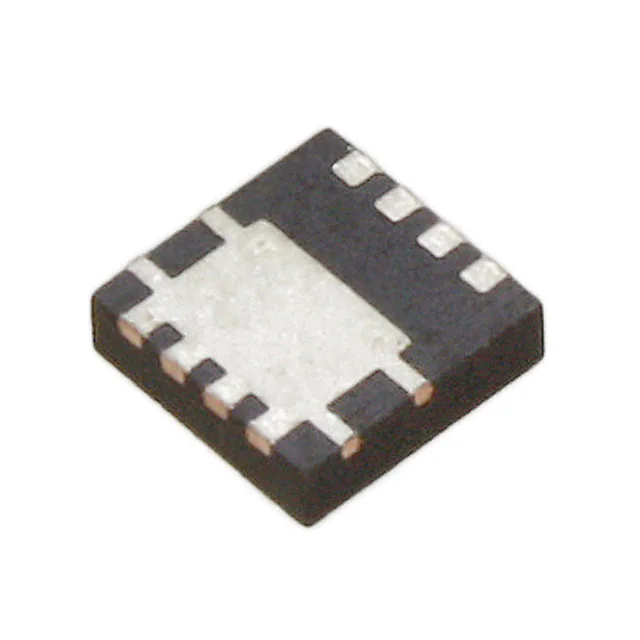

FDMC7660DCMOSFET N-CH 30V 30A/40A DLCOOL33 |
2,012 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta), 40A (Tc) | 4.5V, 10V | 2.2mOhm @ 22A, 10V | 2.5V @ 250µA | 76 nC @ 10 V | ±20V | 5170 pF @ 15 V | - | 3W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTD600N80S3ZMOSFET POWER, N-CHANNEL, SUPERFE |
1,532 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tj) | 10V | 600mOhm @ 4A, 10V | 3.8V @ 180µA | 15.5 nC @ 10 V | ±20V | 725 pF @ 400 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMJS0D7N03CGTWGWIDE SOA |
2,651 | - |
|
Техническая |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 59A (Ta), 410A (Tc) | 10V | 650µOhm @ 30A, 10V | 2.2V @ 280µA | 147 nC @ 10 V | ±20V | 12300 pF @ 15 V | - | 4W (Ta), 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFSS1D3N06CL60V T6 MAX DIE IN 5X6 SOURCE DOW |
2,821 | - |
|
Техническая |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Ta), 243A (Tc) | 4.5V, 10V | 1.3mOhm @ 50A, 10V | 2V @ 250µA | 117 nC @ 10 V | ±20V | 8190 pF @ 30 V | - | 2.5W (Ta), 153W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMTS1D5N08HT8-80V IN PQFN88 FOR INDU |
2,693 | - |
|
Техническая |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMT800152DCMOSFET N-CH 150V 8 DUAL COOL88 |
2,970 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 13A (Ta), 72A (Tc) | 6V, 10V | 9mOhm @ 13A, 10V | 4V @ 250µA | 83 nC @ 10 V | ±20V | 5875 pF @ 75 V | - | 3.2W (Ta), 113W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NDCTR05120AMOSFET N-CH 1200V 5A SMD |
2,951 | - |
|
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
NTMYS2D2N06CLTWGMOSFET N-CH 60V 31A/185A LFPAK4 |
3,842 | - |
|
Техническая |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Ta), 185A (Tc) | 4.5V, 10V | 1.9mOhm @ 50A, 10V | 2V @ 180µA | 69 nC @ 10 V | ±20V | 4850 pF @ 25 V | - | 3.9W (Ta), 134W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTD250N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
1,970 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | 10V | 250mOhm @ 6.5A, 10V | 4V @ 1.1mA | 24 nC @ 10 V | ±30V | 1261 pF @ 400 V | - | 106W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTD360N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
2,190 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 360mOhm @ 5A, 10V | 4V @ 700µA | 17.5 nC @ 10 V | ±30V | 916 pF @ 400 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FCMT080N65S3MOSFET N-CH 650V 38A 4TDFN |
3,437 | - |
|
Tape & Reel (TR) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 80mOhm @ 19A, 10V | 4.5V @ 880µA | 71 nC @ 10 V | ±30V | 2765 pF @ 400 V | - | 260W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
NTMJS2D5N06CLTWGMOSFET N-CH 60V 3.9A/113A 8LFPAK |
3,584 | - |
|
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.9A (Ta), 113A (Tc) | 4.5V, 10V | 2.4mOhm @ 50A, 10V | 2V @ 135µA | 52 nC @ 10 V | ±20V | 3600 pF @ 25 V | - | 3.9W (Ta), 113A (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|

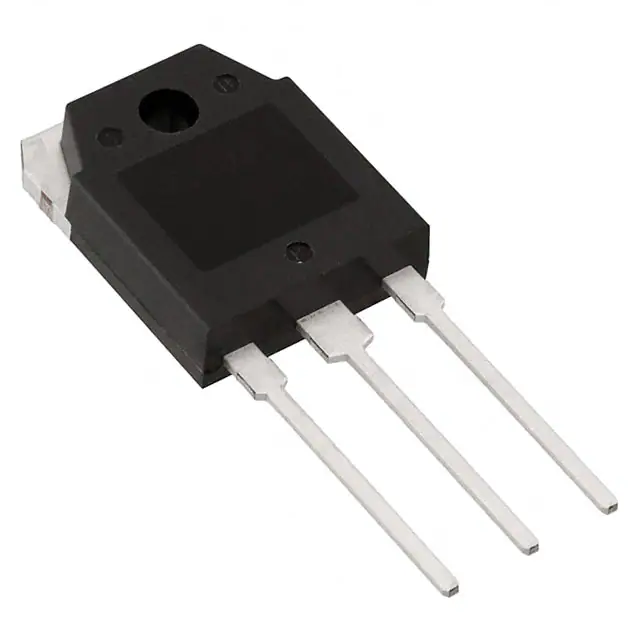

NDTL03N150CGMOSFET N-CH 1500V 2.5A TO3P |
3,609 | - |
|
Техническая |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1.25A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 2.5W (Ta), 140W (Tc) | 150°C (TJ) | Through Hole |
