+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

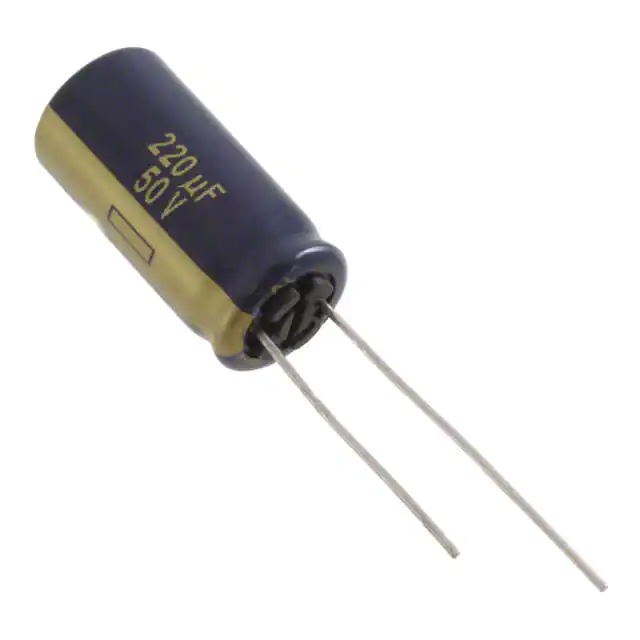

EEU-FC1H221BCAP ALUM 220UF 20% 50V RADIAL |
2,782 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 220 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 669.5 mA @ 120 Hz | 1.03 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-HA2A220PCAP ALUM 22UF 20% 100V SMD |
2,938 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-FK1J470PCAP ALUM 47UF 20% 63V SMD |
2,907 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 187.5 mA @ 120 Hz | 250 mA @ 100 kHz | 650 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FK1K330PCAP ALUM 33UF 20% 80V SMD |
3,221 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 33 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 130 mA @ 100 kHz | 1.3 Ohms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FK1J680UPCAP ALUM 68UF 20% 63V SMD |
3,249 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 68 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 187.5 mA @ 120 Hz | 250 mA @ 100 kHz | 650 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FC2A4R7CAP ALUM 4.7UF 20% 100V RADIAL |
1,637 | - |
|
Техническая |
Bulk | FC | Active | 4.7 µF | ±20% | 100 V | - | - | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 42.25 mA @ 120 Hz | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1AKS470CAP ALUM 47UF 20% 10V RADIAL |
3,119 | - |
|
Техническая |
Bulk | KS | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.197 (5.00mm) | - | Through Hole |
|
|
ECE-A1CKS470CAP ALUM 47UF 20% 16V RADIAL |
14,355 | - |
|
Техническая |
Bulk | KS | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.197 (5.00mm) | - | Through Hole |
|
|
EEE-FK1E221APCAP ALUM 220UF 20% 25V SMD |
3,838 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEU-FC1H220CAP ALUM 22UF 20% 50V RADIAL |
4,416 | - |
|
Техническая |
Bulk | FC | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100.8 mA @ 120 Hz | 155 mA @ 100 kHz | 1.3 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEU-FC1H100LCAP ALUM 10UF 20% 50V RADIAL |
10,193 | - |
|
Техническая |
Bulk | FC | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 81.25 mA @ 120 Hz | 125 mA @ 100 kHz | 1.3 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

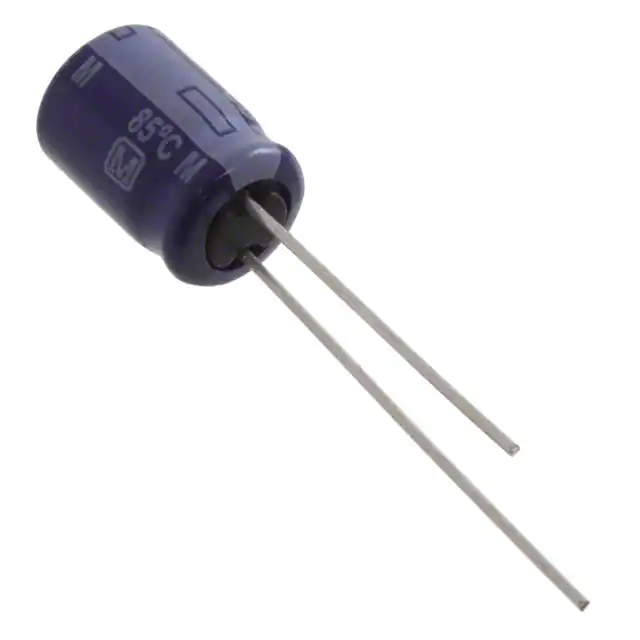

ECA-1HM101CAP ALUM 100UF 20% 50V RADIAL |
2,071 | - |
|
Техническая |
Bulk | M-A | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FM1C102BCAP ALUM 1000UF 20% 16V RADIAL |
325 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.635 A @ 120 Hz | 2.18 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-EB1H3R3SCAP ALUM 3.3UF 20% 50V RADIAL |
3,007 | - |
|
Техническая |
Bulk | EB-A | Active | 3.3 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 29.7 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-FC1E101APCAP ALUM 100UF 20% 25V SMD |
2,028 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 337.5 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FK1V221APCAP ALUM 220UF 20% 35V SMD |
3,889 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FC1E471PCAP ALUM 470UF 20% 25V SMD |
2,461 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 470 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1H221PCAP ALUM 220UF 20% 50V SMD |
2,209 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 375 mA @ 120 Hz | 500 mA @ 100 kHz | 300 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1V331PCAP ALUM 330UF 20% 35V SMD |
3,661 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 330 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEU-EB1H100SCAP ALUM 10UF 20% 50V RADIAL |
3,413 | - |
|
Техническая |
Bulk | EB-A | Active | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 44.55 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
