+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-1CA221PCAP ALUM 220UF 20% 16V SMD |
3,595 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 280 mA @ 120 Hz | 476 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1EA101PCAP ALUM 100UF 20% 25V SMD |
2,696 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1HA470UPCAP ALUM 47UF 20% 50V SMD |
2,695 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1VA101UPCAP ALUM 100UF 20% 35V SMD |
3,386 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 140 mA @ 120 Hz | 238 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ECA-2AM100CAP ALUM 10UF 20% 100V RADIAL |
17,089 | - |
|
Техническая |
Bulk | M-A | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-FC1E470APCAP ALUM 47UF 20% 25V SMD |
2,846 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FK1K100PCAP ALUM 10UF 20% 80V SMD |
2,074 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 10 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 2.4 Ohms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS0J182LBCAP ALUM 1800UF 20% 6.3V RADIAL |
2,915 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 1800 µF | ±20% | 6.3 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.248 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS1H221LBCAP ALUM 220UF 20% 50V RADIAL |
13,603 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 220 µF | ±20% | 50 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.001 A @ 120 Hz | 1.43 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-HA1V221UPCAP ALUM 220UF 20% 35V SMD |
2,803 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 170 mA @ 120 Hz | 289 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1HA101PCAP ALUM 100UF 20% 50V SMD |
3,793 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-1HA470PCAP ALUM 47UF 20% 50V SMD |
2,555 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-1VA221PCAP ALUM 220UF 20% 35V SMD |
3,397 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 310 mA @ 120 Hz | 527 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ECA-1HM2R2CAP ALUM 2.2UF 20% 50V RADIAL |
27,195 | - |
|
Техническая |
Bulk | M-A | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 34 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM4R7CAP ALUM 4.7UF 20% 50V RADIAL |
3,320 | - |
|
Техническая |
Bulk | M-A | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 76.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

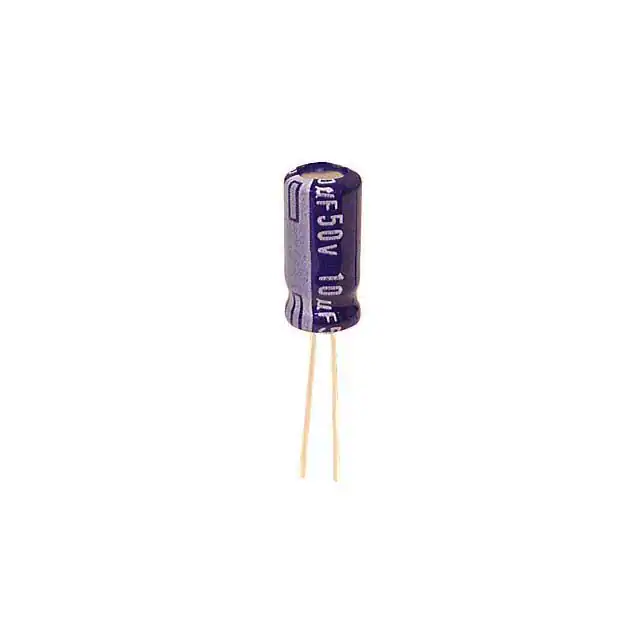

ECA-1HM100CAP ALUM 10UF 20% 50V RADIAL |
4,281 | - |
|
Техническая |
Bulk | M-A | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

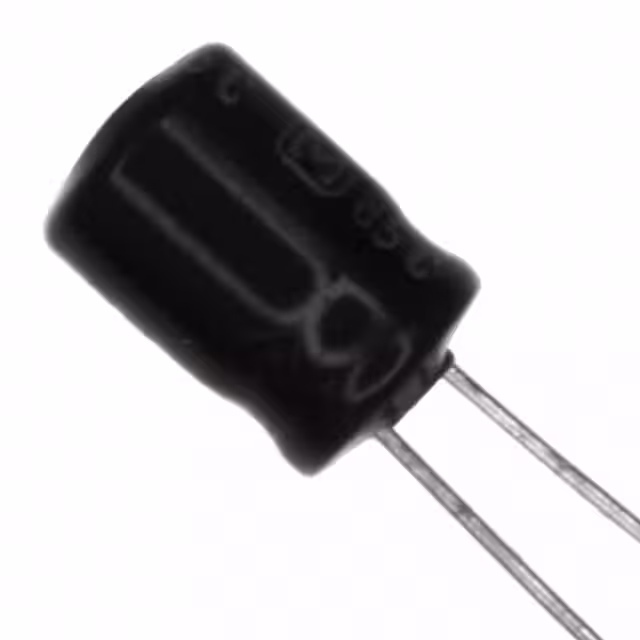

ECE-A1CKA470CAP ALUM 47UF 20% 16V RADIAL |
6,135 | - |
|
Техническая |
Bulk | KA | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1AKA470CAP ALUM 47UF 20% 10V RADIAL |
3,950 | - |
|
Техническая |
Bulk | KA | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 110.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1VKA100CAP ALUM 10UF 20% 35V RADIAL |
2,317 | - |
|
Техническая |
Bulk | KA | Active | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 51 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1HKA100CAP ALUM 10UF 20% 50V RADIAL |
3,546 | - |
|
Техническая |
Bulk | KA | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole |
