| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-1CA221UPCAP ALUM 220UF 20% 16V SMD |
3,216 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 200 mA @ 120 Hz | 340 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1EA101UPCAP ALUM 100UF 20% 25V SMD |
2,253 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-1VA470PCAP ALUM 47UF 20% 35V SMD |
3,616 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 165 mA @ 120 Hz | 280.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ECA-1AM102BCAP ALUM 1000UF 20% 10V RADIAL |
8,000 | - |
|
Техническая |
Tape & Box (TB) | M-A | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.071 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EEE-FK1E470APCAP ALUM 47UF 20% 25V SMD |
2,677 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FK1V470APCAP ALUM 47UF 20% 35V SMD |
3,561 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
ECA-1HM221BCAP ALUM 220UF 20% 50V RADIAL |
3,042 | - |
|
Техническая |
Tape & Box (TB) | M-A | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 680 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EEE-1JA220UPCAP ALUM 22UF 20% 63V SMD |
3,674 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 68 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-HA1E101UPCAP ALUM 100UF 20% 25V SMD |
2,623 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HA1H220PCAP ALUM 22UF 20% 50V SMD |
3,502 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
ECA-1EM471BCAP ALUM 470UF 20% 25V RADIAL |
3,706 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 816 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EEE-2AA100UPCAP ALUM 10UF 20% 100V SMD |
3,969 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | 85 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FC1C101PCAP ALUM 100UF 20% 16V SMD |
2,583 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FC1V470PCAP ALUM 47UF 20% 35V SMD |
2,192 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FK1C221XPCAP ALUM 220UF 20% 16V SMD |
223,422 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FK1E101XPCAP ALUM 100UF 20% 25V SMD |
49,325 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-HC1E470XPCAP ALUM 47UF 20% 25V SMD |
99,578 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HC | Active | 47 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-HA1J100PCAP ALUM 10UF 20% 63V SMD |
190 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 10 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 42.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FK1J220XPCAP ALUM 22UF 20% 63V SMD |
2,337 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 90 mA @ 120 Hz | 120 mA @ 100 kHz | 1.2 Ohms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

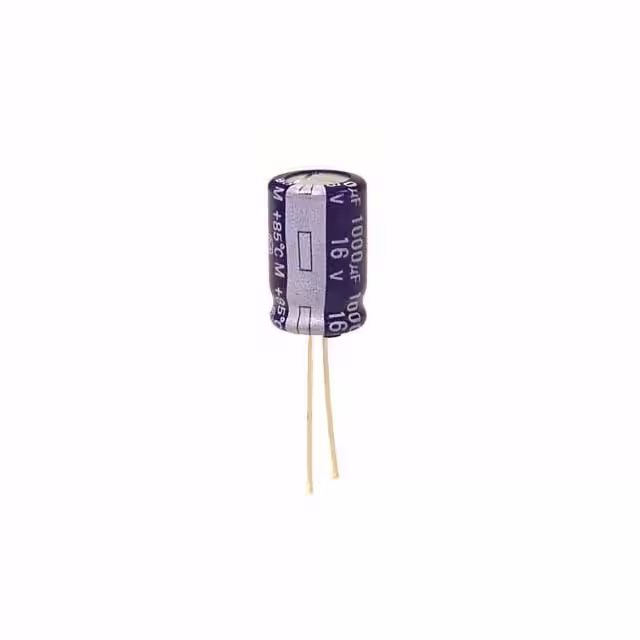

ECA-1CM102BCAP ALUM 1000UF 20% 16V RADIAL |
3,093 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.156 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
