+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS2A470LBCAP ALUM 47UF 20% 100V RADIAL |
9,988 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 47 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEU-FS2A680LBCAP ALUM 68UF 20% 100V RADIAL |
5,000 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 68 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 810 mA @ 100 kHz | 96 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

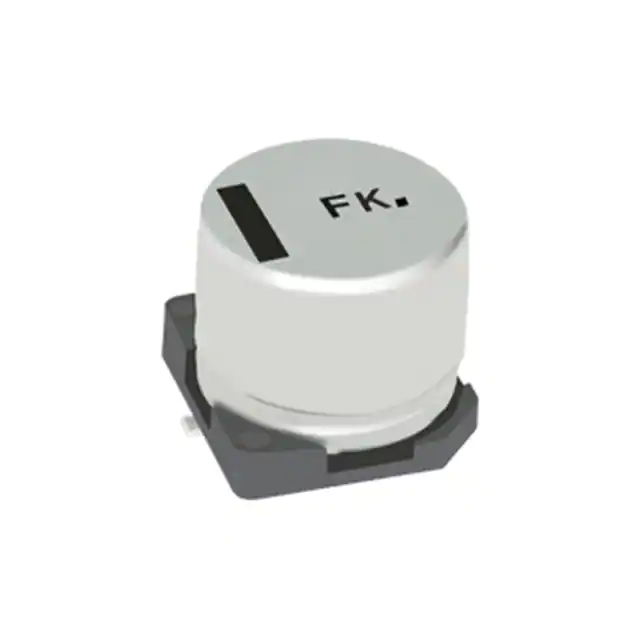

EEE-FK1C681ALCAP ALUM 680UF 20% 16V SMD |
1,500 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK, Halogen Free | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-FR0J332LBCAP ALUM 3300UF 20% 6.3V RAD TH |
1,987 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 3300 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FS1K181BCAP ALUM 180UF 20% 80V RADIAL |
1,907 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 784 mA @ 120 Hz | 1.12 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS1K391BCAP ALUM 390UF 20% 80V RADIAL |
1,871 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 390 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FS2A560LCAP ALUM 56UF 20% 100V RADIAL |
1,918 | - |
|
Техническая |
Bulk | FS-A | Active | 56 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 810 mA @ 100 kHz | 96 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FK1A122LCAP ALUM 1200UF 20% 10V RAD TH |
1,423 | - |
|
Техническая |
Bulk | FK | Active | 1200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 976 mA @ 120 Hz | 1.22 A @ 100 kHz | 44 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS2A680LCAP ALUM 68UF 20% 100V RADIAL |
1,220 | - |
|
Техническая |
Bulk | FS-A | Active | 68 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 810 mA @ 100 kHz | 96 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK1A821LCAP ALUM 820UF 20% 10V RADIAL TH |
1,233 | - |
|
Техническая |
Bulk | FK | Active | 820 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EEU-FK1A821CAP ALUM 820UF 20% 10V RADIAL TH |
1,857 | - |
|
Техническая |
Bulk | FK | Active | 820 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 675 mA @ 120 Hz | 900 mA @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEU-FS1J121CAP ALUM 120UF 20% 63V RADIAL |
1,460 | - |
|
Техническая |
Bulk | FS-A | Active | 120 µF | ±20% | 63 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 532.7 mA @ 120 Hz | 761 mA @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EEU-FK1A182LCAP ALUM 1800UF 20% 10V RAD TH |
1,986 | - |
|
Техническая |
Bulk | FK | Active | 1800 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.344 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-TK1K331AMCAP ALUM 330UF 20% 80V SMD |
1,294 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 330 µF | ±20% | 80 V | 280mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

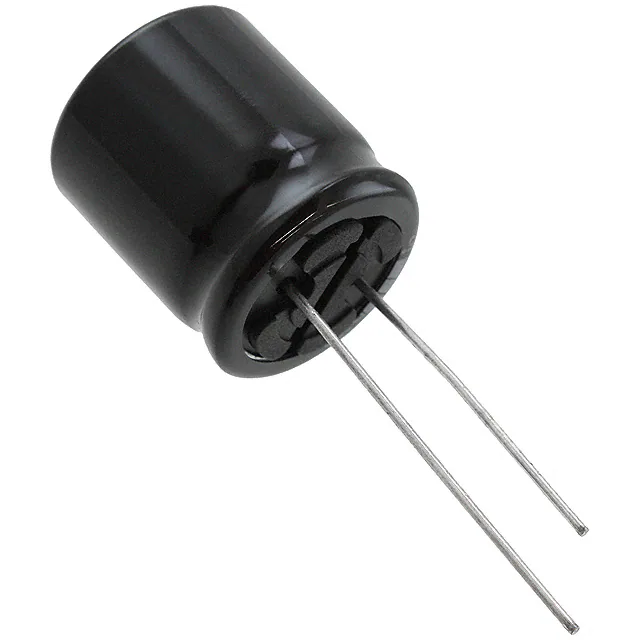

EEU-TP1E222SBCAP ALUM 2200UF 20% 25V RADIAL |
439 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK0J332CAP ALUM 3300UF 20% 6.3V RAD TH |
1,919 | - |
|
Техническая |
Bulk | FK | Active | 3300 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.512 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK1A272CAP ALUM 2700UF 20% 10V RAD TH |
1,792 | - |
|
Техническая |
Bulk | FK | Active | 2700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.512 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-TP1V202SBCAP ALUM 2000UF 20% 35V RADIAL |
250 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 2000 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V162BCAP ALUM 1600UF 20% 35V RADIAL |
903 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 1600 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-TP1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
427 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
