+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

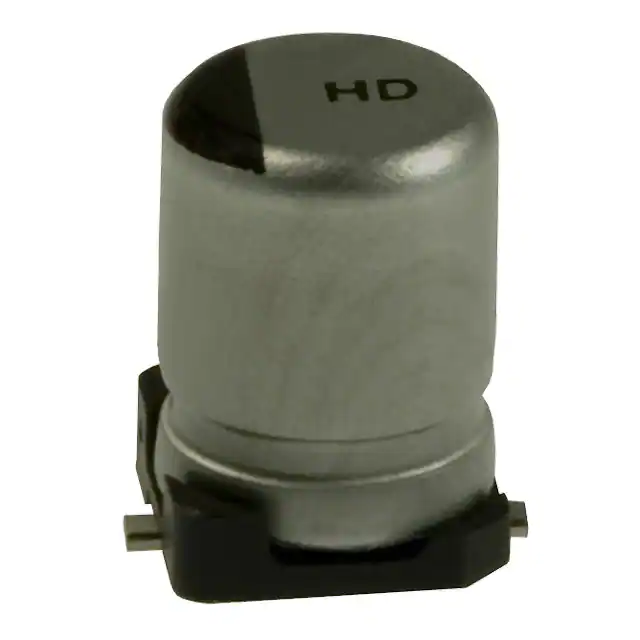

EEV-HD1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
8,088 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 3.3 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | 12 Ohms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEV-HA0J220RCAP ALUM 22UF 20% 6.3V SMD |
3,945 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 29 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

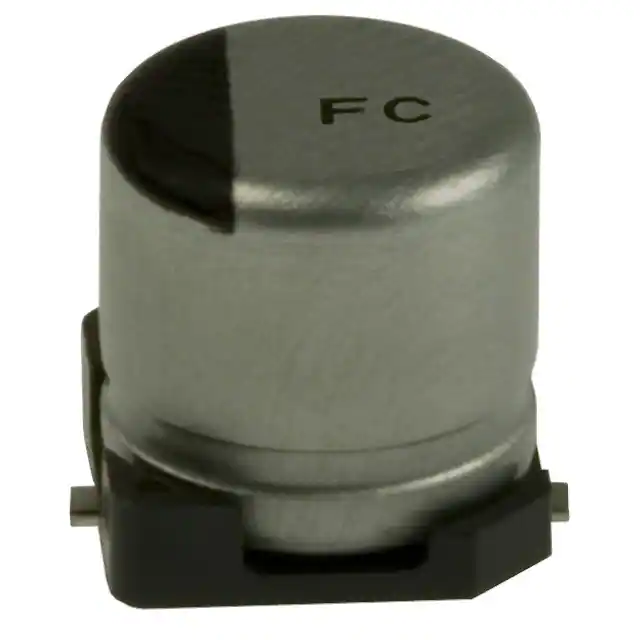

EEV-FC0J470RCAP ALUM 47UF 20% 6.3V SMD |
6,624 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71.25 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

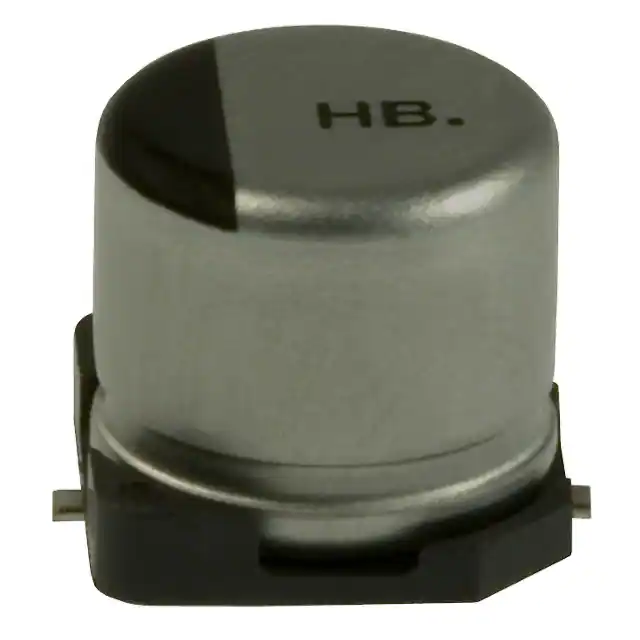

EEV-HB0G221PCAP ALUM 220UF 20% 4V SMD |
9,769 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Obsolete | 220 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 82 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-1HAR22NRCAP ALUM 0.22UF 20% 50V SMD |
5,723 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 3.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

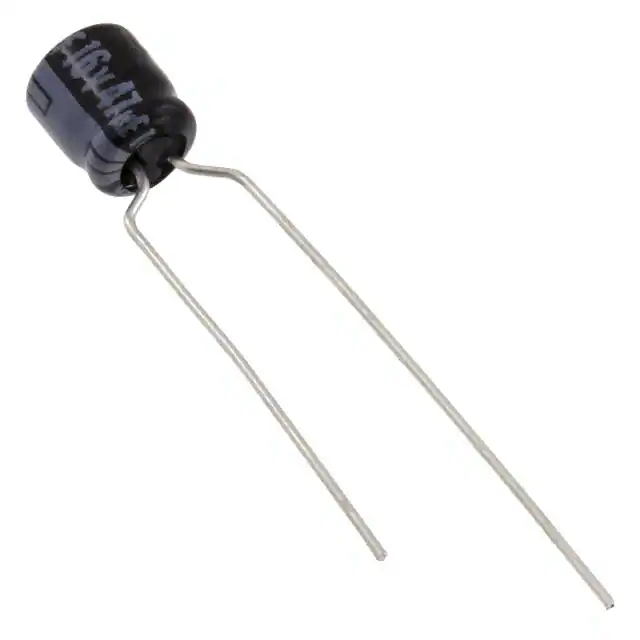

ECA-1CKS470UBCAP ALUM 47UF 20% 16V RADIAL |
98,000 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | KS | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | - | - | - | - | - | - | Through Hole |
|

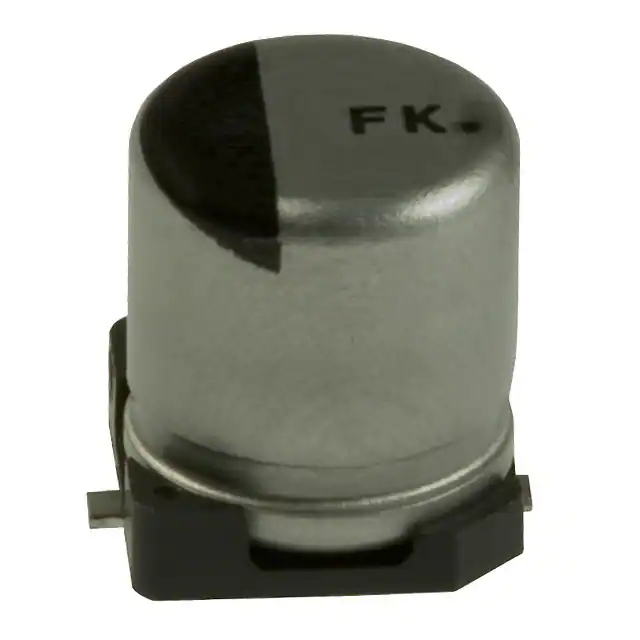

EEV-FK1K3R3RCAP ALUM 3.3UF 20% 80V SMD |
29,135 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 3.3 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 25 mA @ 100 kHz | 5 Ohms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEE-1HSR33SRCAP ALUM 0.33UF 20% 50V SMD |
4,097 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | 5.1 mA @ 10 kHz | - | - | 0.118 Dia (3.00mm) | 0.213 (5.40mm) | 0.130 L x 0.130 W (3.30mm x 3.30mm) | Surface Mount |
|
|
EEV-HA1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
906 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEA-GA1HR15BCAP ALUM 0.15UF 20% 50V RADIAL |
2,128 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | GA-A | Obsolete | 0.15 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.7 mA @ 120 Hz | 2.635 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEE-HA1HR22ARCAP ALUM 0.22UF 20% 50V SMD |
3,769 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 2.8 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEU-HD1HR22BCAP ALUM 0.22UF 20% 50V RADIAL |
3,284 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | HD | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.3 mA @ 120 Hz | 4.6 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

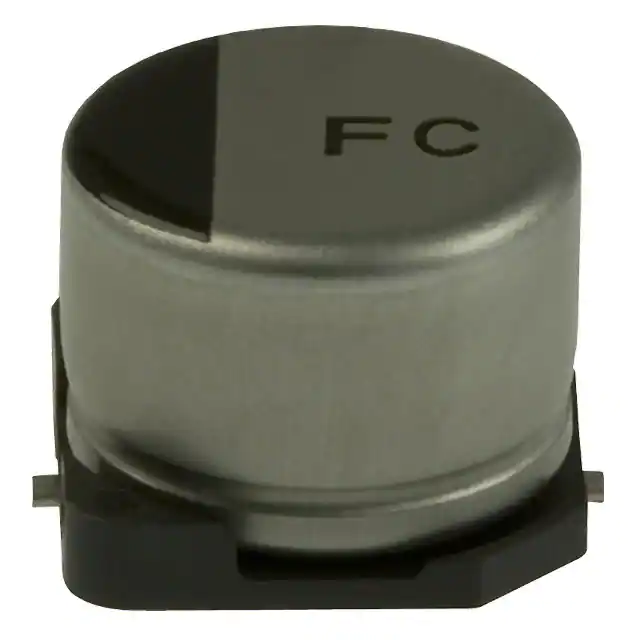

EEV-FC1E470PCAP ALUM 47UF 20% 25V SMD |
43,868 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-TG1V330PCAP ALUM 33UF 20% 35V SMD |
2,200 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 33 µF | ±20% | 35 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-HA0J152PCAP ALUM 1500UF 20% 6.3V SMD |
2,840 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Obsolete | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 480 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ECA-1CM330ICAP 33UF 16V ALUM LYTIC RADIAL |
1,029 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEU-FC1J180CAP ALUM 18UF 20% 63V RADIAL |
1,177 | - |
|
Техническая |
Bulk | FC | Obsolete | 18 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 200 mA @ 100 kHz | 1.3 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
ECA-1HHG100ICAP ALUM 10UF 20% 50V RADIAL |
41,704 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 78 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-1CM470ICAP ALUM 47UF 20% 16V RADIAL |
1,281 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1CKA470BCAP ALUM 47UF 20% 16V RADIAL |
1,999 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | KA | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
