+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2D102JACAP ALUM 1000UF 20% 200V SNAP |
3,730 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EET-UQ2D102KACAP ALUM 1000UF 20% 200V SNAP |
3,338 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EET-UQ2D102LACAP ALUM 1000UF 20% 200V SNAP |
3,502 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1000 µF | ±20% | 200 V | 232mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EET-UQ2D122HACAP ALUM 1200UF 20% 200V SNAP |
3,496 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-UQ2D122JACAP ALUM 1200UF 20% 200V SNAP |
2,974 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

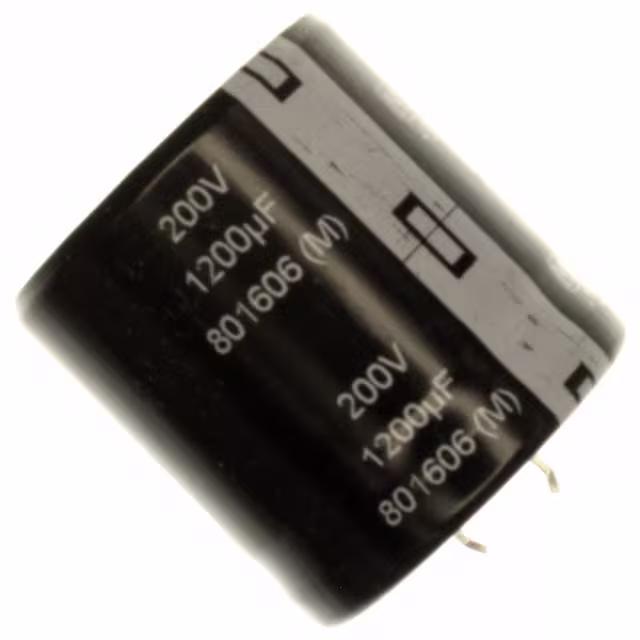

EET-UQ2D122KACAP ALUM 1200UF 20% 200V SNAP |
2,380 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
EET-UQ2D152JACAP ALUM 1500UF 20% 200V SNAP |
2,978 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.418 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

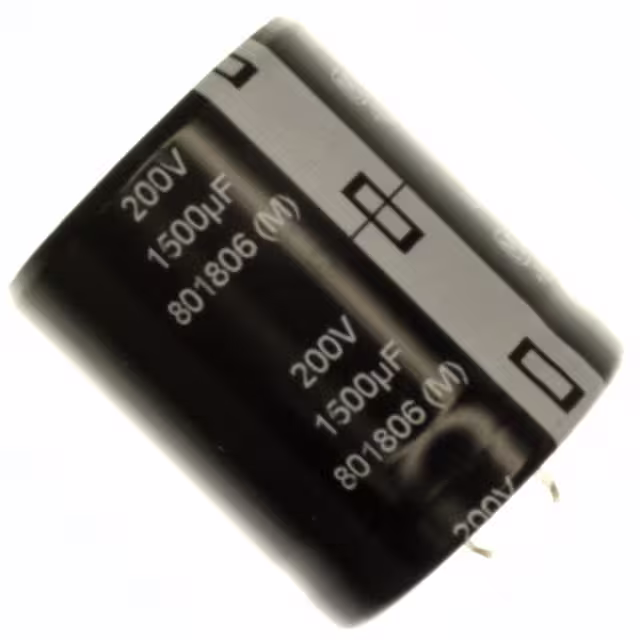

EET-UQ2D152KACAP ALUM 1500UF 20% 200V SNAP |
3,752 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1500 µF | ±20% | 200 V | 144mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.418 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
EET-UQ2D152LACAP ALUM 1500UF 20% 200V SNAP |
3,824 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1500 µF | ±20% | 200 V | 144mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.418 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EET-UQ2D182KACAP ALUM 1800UF 20% 200V SNAP |
3,863 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1800 µF | ±20% | 200 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.32 A @ 120 Hz | 6.048 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
EET-UQ2D182LACAP ALUM 1800UF 20% 200V SNAP |
3,844 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1800 µF | ±20% | 200 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.32 A @ 120 Hz | 6.048 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

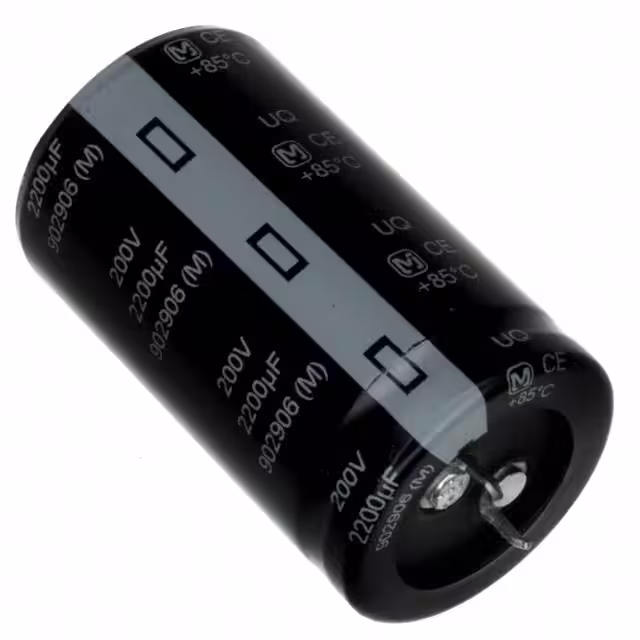

EET-UQ2D222KACAP ALUM 2200UF 20% 200V SNAP |
3,630 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 2200 µF | ±20% | 200 V | 98mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.92 A @ 120 Hz | 6.888 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-UQ2D222LACAP ALUM 2200UF 20% 200V SNAP |
2,618 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 2200 µF | ±20% | 200 V | 105mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.92 A @ 120 Hz | 6.888 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
EET-UQ2D272LACAP ALUM 2700UF 20% 200V SNAP |
2,201 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 2700 µF | ±20% | 200 V | 86mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.45 A @ 120 Hz | 7.63 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-UQ2E331HACAP ALUM 330UF 20% 250V SNAP |
3,151 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 250 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.45 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
EET-UQ2E471HACAP ALUM 470UF 20% 250V SNAP |
3,151 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.954 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
EET-UQ2E471JACAP ALUM 470UF 20% 250V SNAP |
2,304 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.954 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
EET-UQ2E561HACAP ALUM 560UF 20% 250V SNAP |
2,067 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
EET-UQ2E561JACAP ALUM 560UF 20% 250V SNAP |
3,421 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

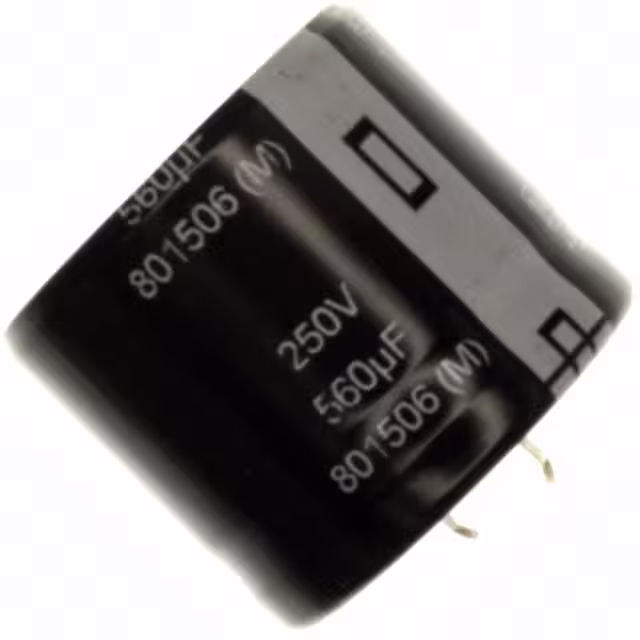

EET-UQ2E561KACAP ALUM 560UF 20% 250V SNAP |
2,906 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
