+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2G271KACAP ALUM 270UF 20% 400V SNAP |
3,417 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.338 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

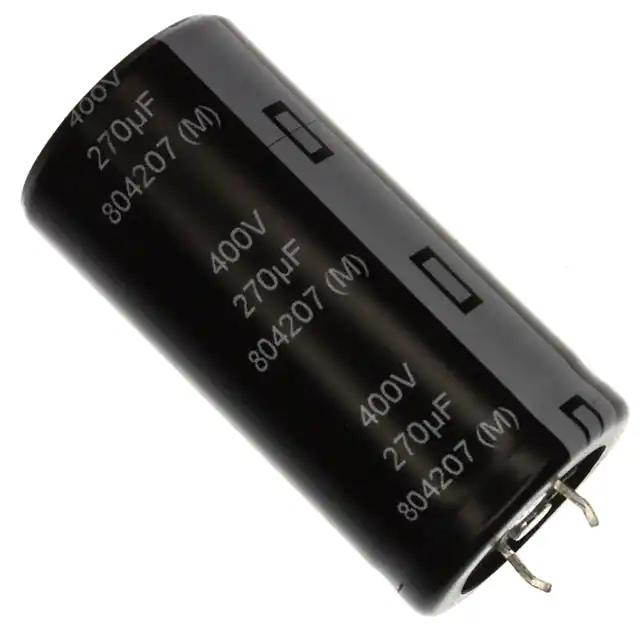

EET-UQ2G271KFCAP ALUM 270UF 20% 400V SNAP |
2,563 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.338 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EET-UQ2G331HACAP ALUM 330UF 20% 400V SNAP |
2,565 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
EET-UQ2G331JACAP ALUM 330UF 20% 400V SNAP |
3,137 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

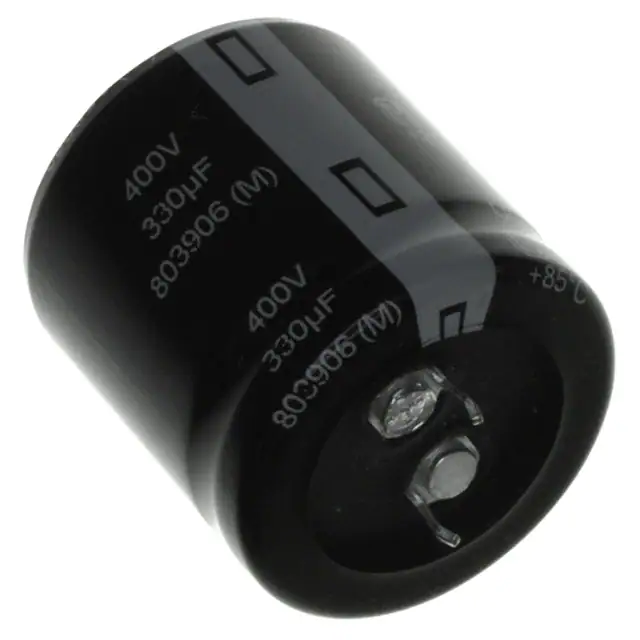

EET-UQ2G331KACAP ALUM 330UF 20% 400V SNAP |
3,990 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EET-UQ2G331LACAP ALUM 330UF 20% 400V SNAP |
2,536 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
EET-UQ2G391JACAP ALUM 390UF 20% 400V SNAP |
2,712 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|

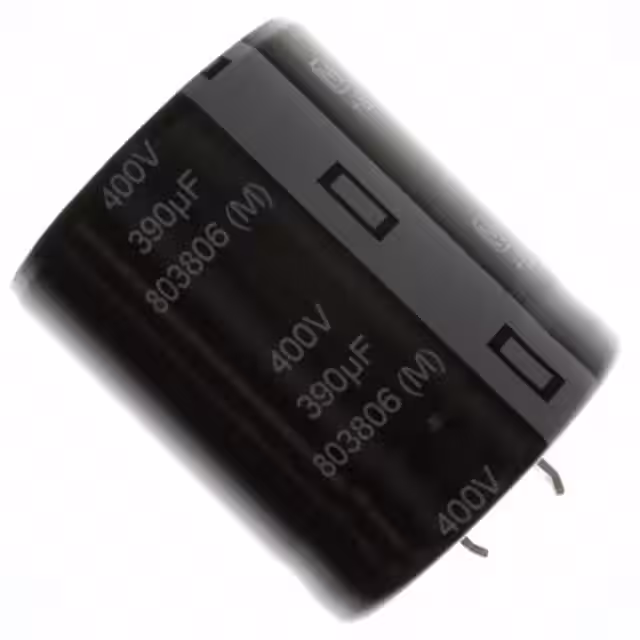

EET-UQ2G391KACAP ALUM 390UF 20% 400V SNAP |
3,952 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
EET-UQ2G391LACAP ALUM 390UF 20% 400V SNAP |
3,622 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
EET-UQ2G471JACAP ALUM 470UF 20% 400V SNAP |
2,254 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

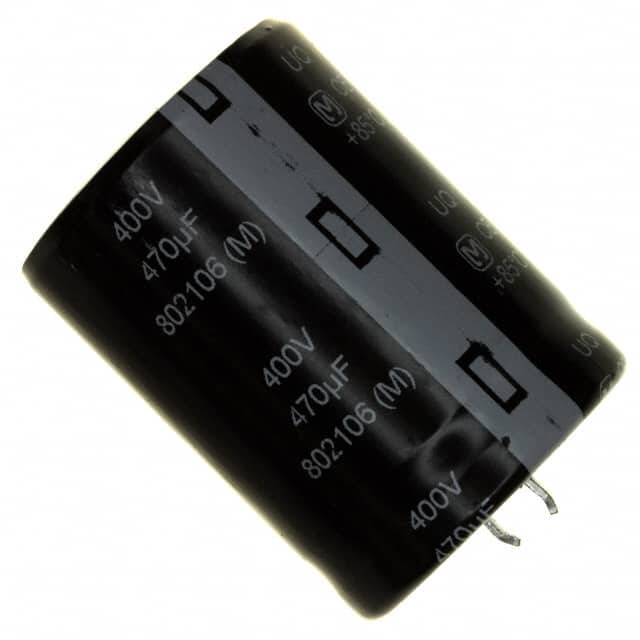

EET-UQ2G471KACAP ALUM 470UF 20% 400V SNAP |
2,405 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
EET-UQ2G471LACAP ALUM 470UF 20% 400V SNAP |
3,265 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

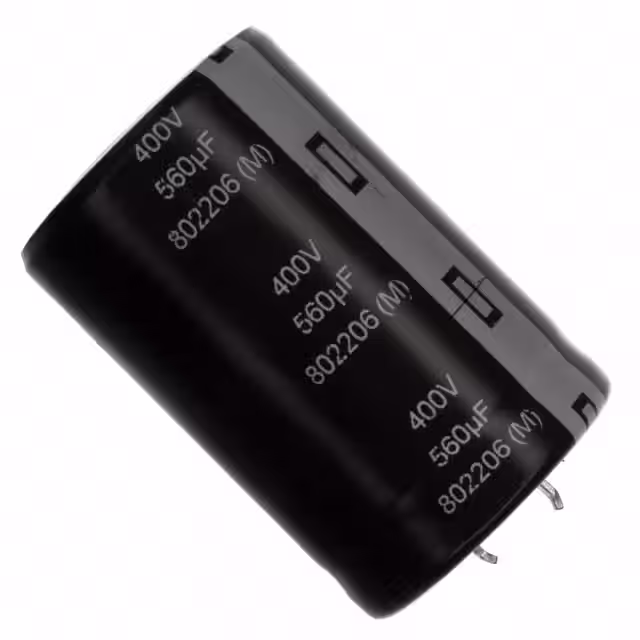

EET-UQ2G561KACAP ALUM 560UF 20% 400V SNAP |
3,108 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.766 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
EET-UQ2G561LACAP ALUM 560UF 20% 400V SNAP |
3,745 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.766 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
EET-UQ2G681LFCAP ALUM 680UF 20% 400V SNAP |
3,401 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

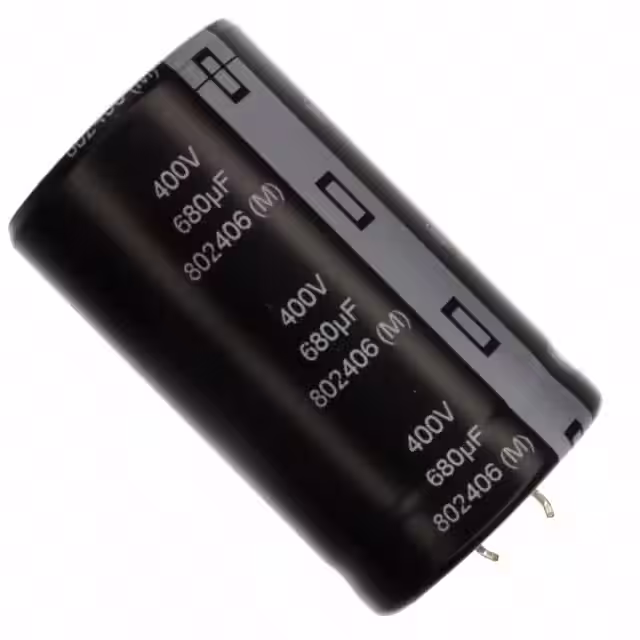

EET-UQ2G681KACAP ALUM 680UF 20% 400V SNAP |
3,769 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-UQ2G681LACAP ALUM 680UF 20% 400V SNAP |
2,644 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
EET-UQ2G821LFCAP ALUM 820UF 20% 400V SNAP |
3,912 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 820 µF | ±20% | 400 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
EET-UQ2G821LACAP ALUM 820UF 20% 400V SNAP |
3,630 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 820 µF | ±20% | 400 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
EET-UQ2S121HACAP ALUM 120UF 20% 420V SNAP |
2,412 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 120 µF | ±20% | 420 V | 1.658Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
