+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC0J102BCAP ALUM 1000UF 20% 6.3V RADIAL |
358 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 1000 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 566.3 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EEU-FC1E331LBCAP ALUM 330UF 20% 25V RADIAL |
881 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 474.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.807 (20.50mm) | - | Through Hole |
|
EEE-HAJ331UAPCAP ALUM 330UF 20% 6.3V SMD |
608 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEU-FC1E271BCAP ALUM 270UF 20% 25V RADIAL |
498 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 270 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 490.8 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EEU-FC1A561BCAP ALUM 560UF 20% 10V RADIAL |
450 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 560 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 566.3 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EEU-FC1J101BCAP ALUM 100UF 20% 63V RADIAL |
350 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 100 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 347.8 mA @ 120 Hz | 535 mA @ 100 kHz | 256 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EEU-FS2A330BCAP ALUM 33UF 20% 100V RADIAL |
978 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 33 µF | ±20% | 100 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 269.5 mA @ 120 Hz | 490 mA @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEE-FKE181XSPCAP ALUM 180UF 20% 25V SMD |
893 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 180 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FKH820XSPCAP ALUM 82UF 20% 50V SMD |
522 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 82 µF | ±20% | 50 V | 680mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 126.8 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECA-1HHG221BCAP ALUM 220UF 20% 50V RADIAL |
490 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
ECA-1JHG221BCAP ALUM 220UF 20% 63V RADIAL |
488 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 502.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
EEE-FKC271XSPCAP ALUM 270UF 20% 16V SMD |
446 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 270 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FR0J122BCAP ALUM 1200UF 20% 6.3V RADIAL |
240 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1200 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.032 A @ 120 Hz | 1.29 A @ 100 kHz | 43 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
ECA-1VHG471BCAP ALUM 470UF 20% 35V RADIAL |
370 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 690 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
EEU-FR1H121LBCAP ALUM 120UF 20% 50V RADIAL |
288 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 120 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 798 mA @ 120 Hz | 1.14 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
Series.jpg)
|

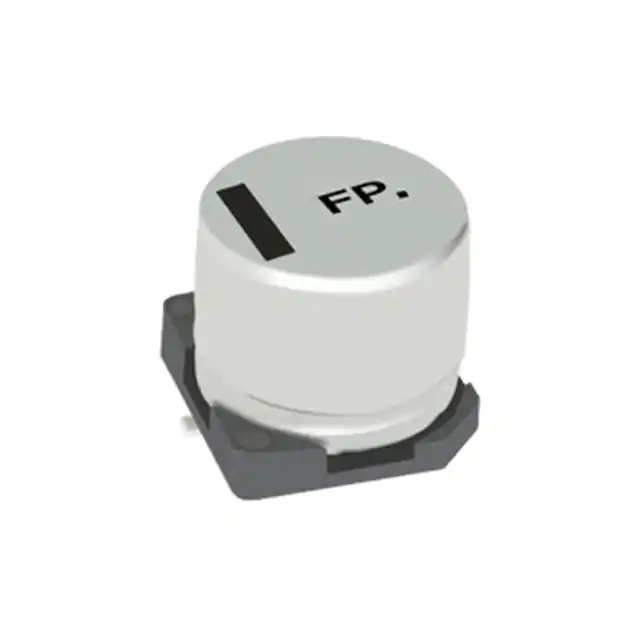

EEE-FPC151XALCAP ALUM 150UF 20% 16V SMD |
800 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 150 µF | ±20% | 16 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECA-1JM331BCAP ALUM 330UF 20% 63V RADIAL |
424 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 935 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-FT1E101AVCAP ALUM 100UF 20% 25V SMD |
3,855 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 100 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FS1H391LBCAP ALUM 390UF 20% 50V RADIAL |
1,731 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 390 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6125 A @ 120 Hz | 2.15 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEE-FK1C470AVCAP ALUM 47UF 20% 16V SMD |
2,883 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 47 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
