+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECA-1VHG472CAP ALUM 4700UF 20% 35V RADIAL |
2,249 | - |
|
Техническая |
Bulk | NHG-A | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.197 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
ECA-1JHG222CAP ALUM 2200UF 20% 63V RADIAL |
3,374 | - |
|
Техническая |
Bulk | NHG-A | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 1.852 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
ECA-2AHG102CAP ALUM 1000UF 20% 100V RADIAL |
3,669 | - |
|
Техническая |
Bulk | NHG-A | Active | 1000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
EEU-FC2A681CAP ALUM 680UF 20% 100V RADIAL |
2,650 | - |
|
Техническая |
Bulk | FC | Active | 680 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.725 A @ 120 Hz | 2.3 A @ 100 kHz | 36 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
EEE-FT1V101APCAP ALUM 100UF 20% 35V SMD |
2,537 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 100 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|

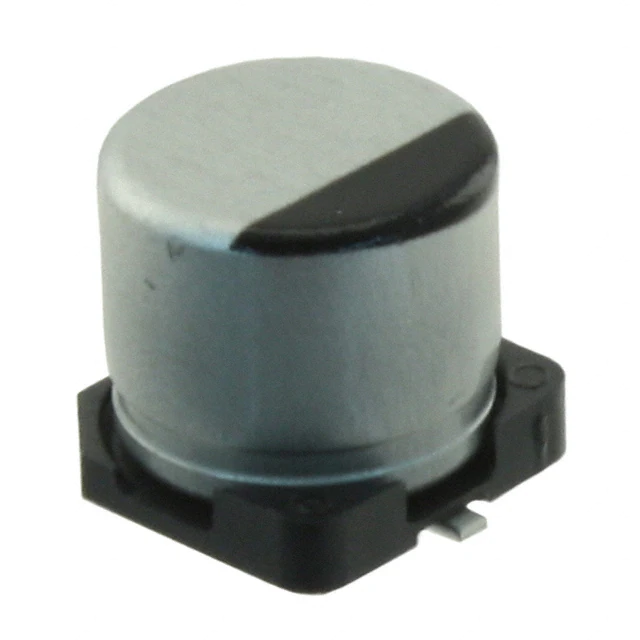

EEE-FT1H470APCAP ALUM 47UF 20% 50V SMD |
2,513 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 47 µF | ±20% | 50 V | 680mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 126.8 mA @ 120 Hz | 195 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FT0J331APCAP ALUM 330UF 20% 6.3V SMD |
3,308 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 330 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-FPE101XAPCAP ALUM 100UF 20% 25V SMD |
2,774 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FP | Active | 100 µF | ±20% | 25 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FPV101XAPCAP ALUM 100UF 20% 35V SMD |
3,516 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FP | Active | 100 µF | ±20% | 35 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FR1A152BCAP ALUM 1500UF 20% 10V RADIAL |
3,803 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1500 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.432 A @ 120 Hz | 1.79 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEE-FTE221XAPCAP ALUM 220UF 20% 25V SMD |
3,535 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 220 µF | ±20% | 25 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FTV151XAPCAP ALUM 150UF 20% 35V SMD |
3,908 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 150 µF | ±20% | 35 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FTH101XAPCAP ALUM 100UF 20% 50V SMD |
2,936 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 100 µF | ±20% | 50 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 227.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FTA471XAPCAP ALUM 470UF 20% 10V SMD |
2,954 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 470 µF | ±20% | 10 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEU-FR1V471BCAP ALUM 470UF 20% 35V RADIAL |
3,961 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 470 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.343 A @ 120 Hz | 1.79 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEU-FR1H331LBCAP ALUM 330UF 20% 50V RADIAL |
2,909 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 330 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.505 A @ 120 Hz | 2.15 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FT1V331APCAP ALUM 330UF 20% 35V SMD |
3,943 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FT1H221APCAP ALUM 220UF 20% 50V SMD |
3,149 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 220 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FK1V471SPCAP ALUM 470UF 20% 35V SMD |
3,916 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 470 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-FR1V102BCAP ALUM 1000UF 20% 35V RADIAL |
2,122 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1000 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
