+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

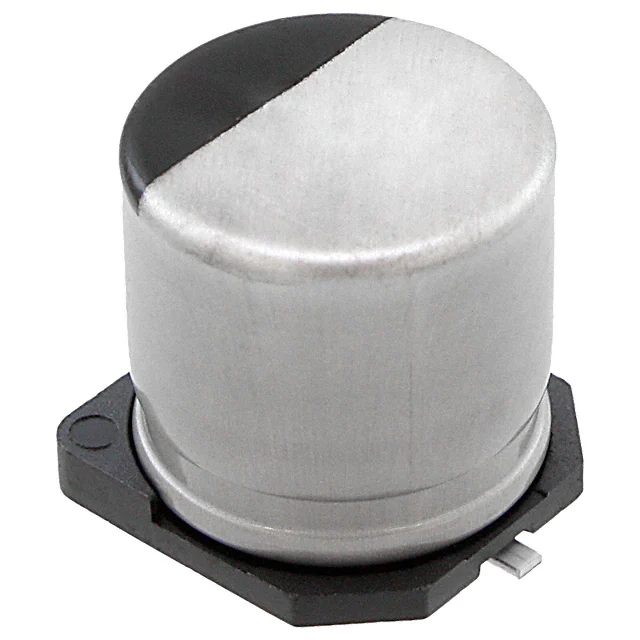

EEE-FT1H331APCAP ALUM 330UF 20% 50V SMD |
2,756 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 330 µF | ±20% | 50 V | 120mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-FT1H331GPCAP ALUM 330UF 20% 50V SMD |
3,264 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 330 µF | ±20% | 50 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-FR1E102CAP ALUM 1000UF 20% 25V RADIAL |
3,087 | - |
|
Техническая |
Bulk | FR-A | Active | 1000 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.635 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEV-FK1V102MCAP ALUM 1000UF 20% 35V SMD |
3,481 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-HD1V222BCAP ALUM 2200UF 20% 35V RADIAL |
2,162 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.449 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FK1H102AMCAP ALUM 1000UF 20% 50V SMD |
3,608 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.208 A @ 120 Hz | 1.61 A @ 100 kHz | 73 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEE-FK1H471AMCAP ALUM 470UF 20% 50V SMD |
2,016 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.208 A @ 120 Hz | 1.61 A @ 100 kHz | 73 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-FR1E222LCAP ALUM 2200UF 20% 25V RADIAL |
2,520 | - |
|
Техническая |
Bulk | FR-A | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
EEU-FR1V222LCAP ALUM 2200UF 20% 35V RADIAL |
3,975 | - |
|
Техническая |
Bulk | FR-A | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
ECE-A1CKA100IALUM ELECT CAP 10 UF 16V K/KA SE |
2,231 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | KA-A | Active | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
ECE-A1EKA470ICAP ALUM 47UF 20% 25V RADIAL |
12,430 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | KA | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|

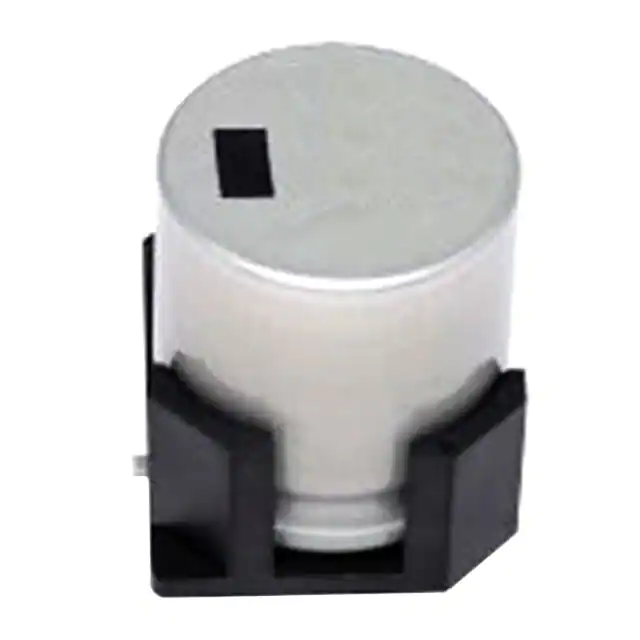

EEE-TP1J102VCAP ALUM 1000UF 20% 63V SMD |
2,909 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 1000 µF | ±20% | 63 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEE-0JA220SRCAP ALUM 22UF 20% 6.3V SMD |
309 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 29 mA @ 120 Hz | 49.3 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-1AA220WRCAP ALUM 22UF 20% 10V SMD |
17,795 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-1EA4R7SRCAP ALUM 4.7UF 20% 25V SMD |
3,168 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-1HA010SRCAP ALUM 1UF 20% 50V SMD |
3,925 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HA1C100RCAP ALUM 10UF 20% 16V SMD |
2,828 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HA1H1R0RCAP ALUM 1UF 20% 50V SMD |
7,890 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HA1V4R7RCAP ALUM 4.7UF 20% 35V SMD |
3,305 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HB1C100RCAP ALUM 10UF 20% 16V SMD |
2,169 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
