+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70A302KF400CAP ALUM 3000UF 20% 400V SCREW |
2,886 | - |
|
Техническая |
Bulk | ALS70 | Active | 3000 µF | ±20% | 400 V | 60mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | 16.3 A @ 10 kHz | 36 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS30A333KF063CAP ALUM 33000UF 20% 63V SCREW |
2,343 | - |
|
Техническая |
Bulk | ALS30 | Active | 33000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | 18 A @ 10 kHz | 9 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALC40A471DE400CAP ALUM 470UF 20% 400V SNAP |
2,590 | - |
|
Техническая |
Bulk | ALC40 | Active | 470 µF | ±20% | 400 V | 300mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 4.73 A @ 10 kHz | 192 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ALF80G682EF100CAP ALUM 6800UF 20% 100V SNAP |
3,871 | - |
|
Техническая |
Bulk | ALF80 | Active | 6800 µF | ±20% | 100 V | 52mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.56 A @ 100 Hz | 9.25 A @ 10 kHz | 44 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C682EF100CAP ALUM 6800UF 20% 100V SNAP |
3,681 | - |
|
Техническая |
Bulk | ALF80 | Active | 6800 µF | ±20% | 100 V | 52mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.56 A @ 100 Hz | 9.25 A @ 10 kHz | 44 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|

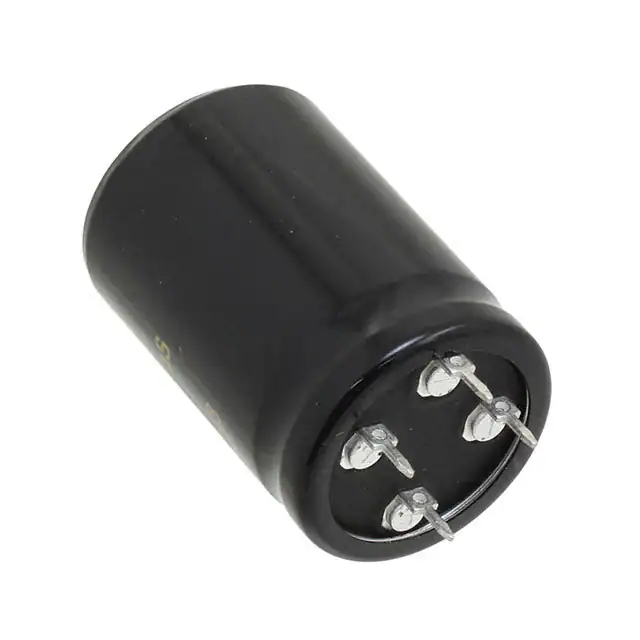

ALP22A472BB063CAP ALUM 4700UF 20% 63V SNAP |
2,459 | - |
|
Техническая |
Bulk | ALP22 | Active | 4700 µF | ±20% | 63 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ALS30A222DA100CAP ALUM 2200UF 20% 100V SCREW |
3,796 | - |
|
Техническая |
Box | ALS30 | Active | 2200 µF | ±20% | 100 V | 69mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | 5.4 A @ 10 kHz | 55 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
|
ALS71A184MF040CAP ALUM 180000UF 20% 40V SCREW |
2,170 | - |
|
Техническая |
Bulk | ALS71 | Active | 180000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | 29.2 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS80A823MF063CAP ALUM 82000UF 20% 63V SCREW |
2,764 | - |
|
Техническая |
Bulk | ALS80 | Active | 82000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.7 A @ 100 Hz | 25.2 A @ 10 kHz | 9 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS30A153DB040CAP ALUM 15000UF 20% 40V SCREW |
3,085 | - |
|
Техническая |
Bulk | ALS30 | Active | 15000 µF | ±20% | 40 V | 17mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | 10 A @ 10 kHz | 14 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
PEH205GA5180QU0CAP ALUM 18000UF 16V SCREW |
3,132 | - |
|
Техническая |
Bulk | PEH205 | Active | 18000 µF | -10%, +30% | 16 V | 23mOhm @ 100Hz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 16 mOhms | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
ALS40A222DB100CAP ALUM 2200UF 20% 100V SCREW |
2,403 | - |
|
Техническая |
Box | ALS40 | Active | 2200 µF | ±20% | 100 V | 56mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | 5.5 A @ 10 kHz | 44 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.441 (62.00mm) | - | Chassis Mount |
|
|
ALS80A243QC100CAP ALUM 24000UF 20% 100V SCREW |
3,512 | - |
|
Техническая |
Bulk | ALS80 | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS30A102DE250CAP ALUM 1000UF 20% 250V SCREW |
3,678 | - |
|
Техническая |
Box | ALS30 | Active | 1000 µF | ±20% | 250 V | 117mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 100 Hz | 7.4 A @ 10 kHz | 89 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
ALF80C303EL063CAP ALUM 30000UF 20% 63V SNAP |
2,912 | - |
|
Техническая |
Bulk | ALF80 | Active | 30000 µF | ±20% | 63 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.89 A @ 100 Hz | 13.89 A @ 10 kHz | 15 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|

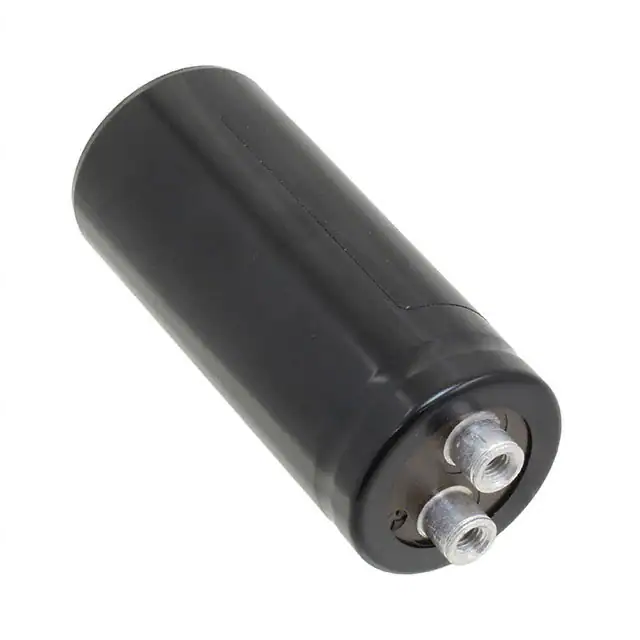

ALS30A471DE400CAP ALUM 470UF 20% 400V SCREW |
2,569 | - |
|
Техническая |
Bulk | ALS30 | Active | 470 µF | ±20% | 400 V | 267mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 100 Hz | 7.1 A @ 10 kHz | 182 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS30A103DE063CAP ALUM 10000UF 20% 63V SCREW |
2,235 | - |
|
Техническая |
Bulk | ALS30 | Active | 10000 µF | ±20% | 63 V | 17mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 100 Hz | 11.9 A @ 10 kHz | 14 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS30A331DF500CAP ALUM 330UF 20% 500V SCREW |
2,244 | - |
|
Техническая |
Box | ALS30 | Active | 330 µF | ±20% | 500 V | 420mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 100 Hz | 6.2 A @ 10 kHz | 258 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ALS36H103D3C050CAP ALUM 10000UF 50V SCREW |
3,734 | - |
|
Техническая |
Box | ALS36 | Active | 10000 µF | -10%, +30% | 50 V | 24mOhm @ 120Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 15.6 A @ 20 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
ALS70A513NF100CAP ALUM 51000UF 20% 100V SCREW |
3,226 | - |
|
Техническая |
Bulk | ALS70 | Active | 51000 µF | ±20% | 100 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.7 A @ 100 Hz | 27.9 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
