+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH534YDC3220M2CAP ALUM 220UF 20% 450V SNAP |
2,363 | - |
|
Техническая |
Bulk | PEH534 | Active | 220 µF | ±20% | 450 V | 390mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ALF70C103DD063CAP ALUM 10000UF 20% 63V SNAP |
2,723 | - |
|
Техническая |
Bulk | ALF70 | Active | 10000 µF | ±20% | 63 V | 44mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.55 A @ 100 Hz | 8.44 A @ 10 kHz | 34 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole, Press-Fit |
|

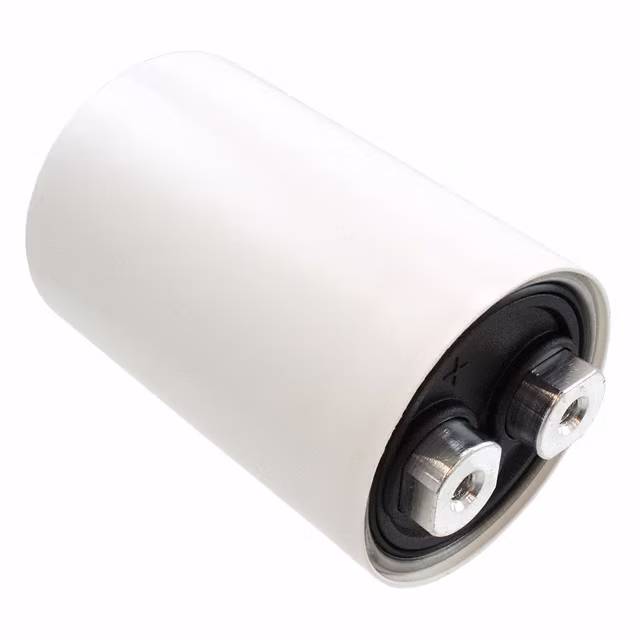

PEH169VH368VMU2CAP ALUM 680UF 20% 400V SCREW |
3,261 | - |
|
Техническая |
Bulk | PEH169 | Active | 680 µF | ±20% | 400 V | 120mOhm @ 100Hz | 14500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 74 mOhms | 0.866 (22.00mm) | 2.032 Dia (51.60mm) | 3.071 (78.00mm) | - | Chassis Mount |
|
ALC10C471EE400CAP ALUM 470UF 20% 400V SNAP |
2,729 | - |
|
Техническая |
Box | ALC10 | Active | 470 µF | ±20% | 400 V | 258mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 100 Hz | 5.49 A @ 10 kHz | 168 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ALA7DA471DC400CAP ALUM 470UF 20% 400V SNAP |
3,873 | - |
|
Техническая |
Bulk | ALA7D | Active | 470 µF | ±20% | 400 V | 379.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.18 A @ 100 Hz | 5.4 A @ 10 kHz | 233.4 mOhms | - | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ALS80A513KE040CAP ALUM 51000UF 20% 40V SCREW |
3,631 | - |
|
Техническая |
Bulk | ALS80 | Active | 51000 µF | ±20% | 40 V | 18mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 16.2 A @ 10 kHz | 16 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
ALF80C122DD200CAP ALUM 1200UF 20% 200V SNAP |
2,968 | - |
|
Техническая |
Bulk | ALF80 | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole, Press-Fit |
|
|
ALF70C561DF450CAP ALUM 560UF 20% 450V SNAP |
3,863 | - |
|
Техническая |
Bulk | ALF70 | Active | 560 µF | ±20% | 450 V | 253mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 6.45 A @ 10 kHz | 143 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALS80A124KE025CAP ALUM 120000UF 20% 25V SCREW |
2,960 | - |
|
Техническая |
Bulk | ALS80 | Active | 120000 µF | ±20% | 25 V | 18mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | 16.4 A @ 10 kHz | 17 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALA7DA561DE450CAP ALUM 560UF 20% 450V SNAP |
3,312 | - |
|
Техническая |
Bulk | ALA7D | Active | 560 µF | ±20% | 450 V | 275.2mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.19 A @ 100 Hz | 5.01 A @ 10 kHz | 207.2 mOhms | - | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
A431LH473M040ACAP ALUM 47000UF 20% 40V SCREW |
3,088 | - |
|
Bulk,Box | ALS31 | Active | 47000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 16.7 A @ 10 kHz | 11 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount | |
|
ALS70A753KE040CAP ALUM 75000UF 20% 40V SCREW |
2,435 | - |
|
Техническая |
Bulk | ALS70 | Active | 75000 µF | ±20% | 40 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | 18.6 A @ 10 kHz | 16 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
ALC70A182DF200CAP ALUM 1800UF 20% 200V SNAP |
3,535 | - |
|
Техническая |
Bulk | ALC70 | Active | 1800 µF | ±20% | 200 V | 127mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 100 Hz | 7.42 A @ 10 kHz | 81 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
ALA7DA471CF450CAP ALUM 470UF 20% 450V SNAP |
2,932 | - |
|
Техническая |
Bulk | ALA7D | Active | 470 µF | ±20% | 450 V | 322.4mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.99 A @ 100 Hz | 4.77 A @ 10 kHz | 506.4 mOhms | - | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
ALC70A561DF450CAP ALUM 560UF 20% 450V SNAP |
3,526 | - |
|
Техническая |
Bulk | ALC70 | Active | 560 µF | ±20% | 450 V | 253mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 6.45 A @ 10 kHz | 143 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALS30A102KE450CAP ALUM 1000UF 20% 450V SCREW |
3,287 | - |
|
Техническая |
Bulk | ALS30 | Active | 1000 µF | ±20% | 450 V | 118mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 79 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS80A473KF063CAP ALUM 47000UF 20% 63V SCREW |
2,182 | - |
|
Техническая |
Bulk | ALS80 | Active | 47000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | 18.7 A @ 10 kHz | 13 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70A332KF350CAP ALUM 3300UF 20% 350V SCREW |
2,955 | - |
|
Техническая |
Bulk | ALS70 | Active | 3300 µF | ±20% | 350 V | 59mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.7 A @ 100 Hz | 16.2 A @ 10 kHz | 36 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A184KF025CAP ALUM 180000UF 20% 25V SCREW |
2,673 | - |
|
Техническая |
Bulk | ALS80 | Active | 180000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 18.7 A @ 10 kHz | 13 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALC10A331DF500CAP ALUM 330UF 20% 500V SNAP |
2,477 | - |
|
Техническая |
Bulk | ALC10 | Active | 330 µF | ±20% | 500 V | 492mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.14 A @ 100 Hz | 3.75 A @ 10 kHz | 366 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
