+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41554E5229Q000CAP ALUM 22000UF 25V SCREW |
2,959 | - |
|
Bulk | B41554 | Obsolete | 22000 µF | -10%, +30% | 25 V | 20mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 15 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
B41554E7109Q000CAP ALUM 10000UF 40V SCREW |
3,651 | - |
|
Bulk | B41554 | Obsolete | 10000 µF | -10%, +30% | 40 V | 27mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | - | 17 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount | |
|
|
B41554E7159Q000CAP ALUM 15000UF 40V SCREW |
3,380 | - |
|
Bulk | B41554 | Obsolete | 15000 µF | -10%, +30% | 40 V | 20mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 8 A @ 100 Hz | - | 12 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
B41554E7478Q000CAP ALUM 4700UF 40V SCREW |
3,944 | - |
|
Bulk | B41554 | Obsolete | 4700 µF | -10%, +30% | 40 V | 33mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 24 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount | |
|
|
B41554E8228Q000CAP ALUM 2200UF 63V SCREW |
3,579 | - |
|
Bulk | B41554 | Obsolete | 2200 µF | -10%, +30% | 63 V | 60mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | - | 30 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount | |
|
|
B41554E8338Q000CAP ALUM 3300UF 63V SCREW |
2,065 | - |
|
Bulk | B41554 | Obsolete | 3300 µF | -10%, +30% | 63 V | 39mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | - | 24 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount | |
|

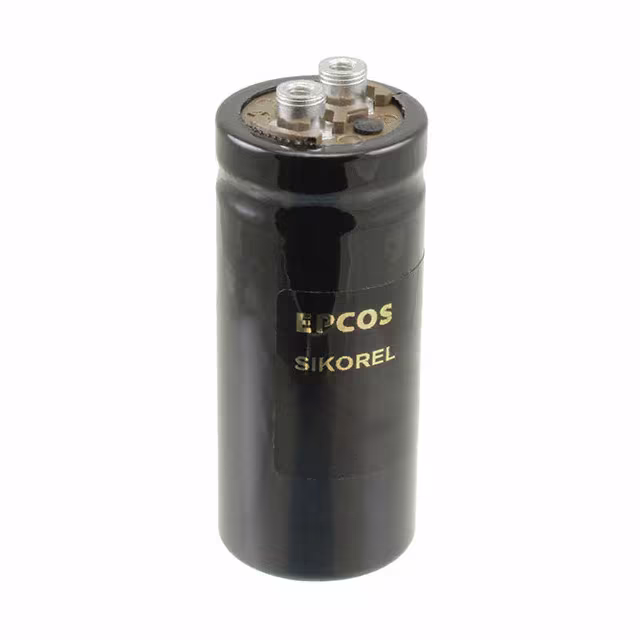

B41554E8478Q000CAP ALUM 4700UF 63V SCREW |
3,590 | - |
|
Bulk | B41554 | Obsolete | 4700 µF | -10%, +30% | 63 V | 31mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 20 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount | |
|
|
B41554E8688Q000CAP ALUM 6800UF 63V SCREW |
3,752 | - |
|
Bulk | B41554 | Obsolete | 6800 µF | -10%, +30% | 63 V | 23mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.2 A @ 100 Hz | - | 17 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
B41554E9228Q000CAP ALUM 2200UF 100V SCREW |
3,991 | - |
|
Техническая |
Bulk | B41554 | Obsolete | 2200 µF | -10%, +30% | 100 V | 57mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.2 A @ 100 Hz | - | 30 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E9338Q000CAP ALUM 3300UF 100V SCREW |
2,699 | - |
|
Bulk | B41554 | Obsolete | 3300 µF | -10%, +30% | 100 V | 37mOhm @ 100Hz | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.4 A @ 100 Hz | - | 24 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
B41560A5159M000CAP ALUM 15000UF 20% 25V SCREW |
3,523 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 15000 µF | ±20% | 25 V | 42mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | - | 31 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
B41560A5229M000CAP ALUM 22000UF 20% 25V SCREW |
3,516 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 22000 µF | ±20% | 25 V | 29mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | - | 22 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41560A5339M000CAP ALUM 33000UF 20% 25V SCREW |
3,014 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 33000 µF | ±20% | 25 V | 20mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 17 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B41560A5479M000CAP ALUM 47000UF 20% 25V SCREW |
2,518 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 47000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41560A7109M000CAP ALUM 10000UF 20% 40V SCREW |
3,552 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 10000 µF | ±20% | 40 V | 42mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | - | 37 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41560A7159M000CAP ALUM 15000UF 20% 40V SCREW |
2,203 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 15000 µF | ±20% | 40 V | 23mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | - | 16 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41560A7229M000CAP ALUM 22000UF 20% 40V SCREW |
2,359 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 22000 µF | ±20% | 40 V | 17mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 14 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41560A8109M000CAP ALUM 10000UF 20% 63V SCREW |
3,187 | - |
|
Техническая |
Bulk | B41560 | Obsolete | 10000 µF | ±20% | 63 V | 27mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 16 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B43455A5227M000CAP ALUM 220UF 20% 450V SCREW |
2,858 | - |
|
Техническая |
Bulk | B43455 | Obsolete | 220 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
|
B43455A5477M000CAP ALUM 470UF 20% 450V SCREW |
2,730 | - |
|
Техническая |
Bulk | B43455 | Obsolete | 470 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
