Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX42/26/13-3C90 FERRITE CORES ROUND Ferroxcube	286	-	запрос цен	Техническая	Bulk	-	Active	Toroid	TX 42 x 26 x 13	3C90	1.697 (43.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.531 (13.50mm)

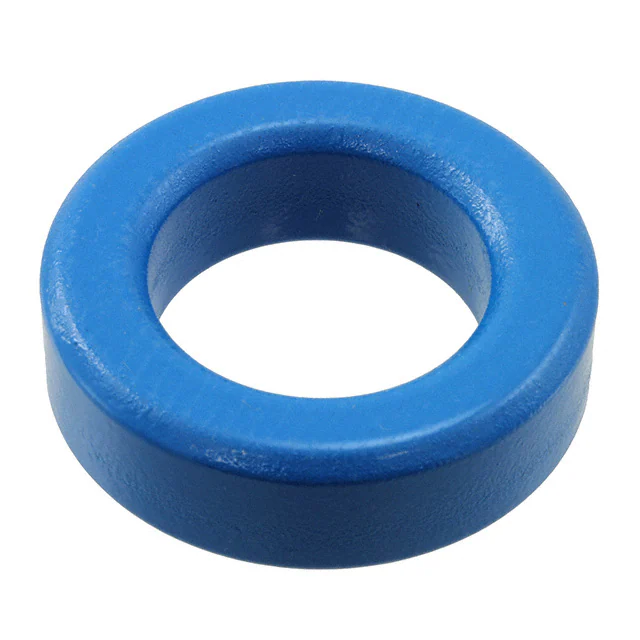

B64290L0022X087 FERRITE CORE TOROID 2.56UH N87 EPCOS - TDK Electronics	2,574	-	запрос цен	Техническая	Box	TX42/26/13	Active	Toroid	-	N87	1.717 (43.60mm)	2.56 µH	±25%	Ungapped	-	2200	1.08	103	95.75	-	9862	Epoxy	0.535 (13.60mm)

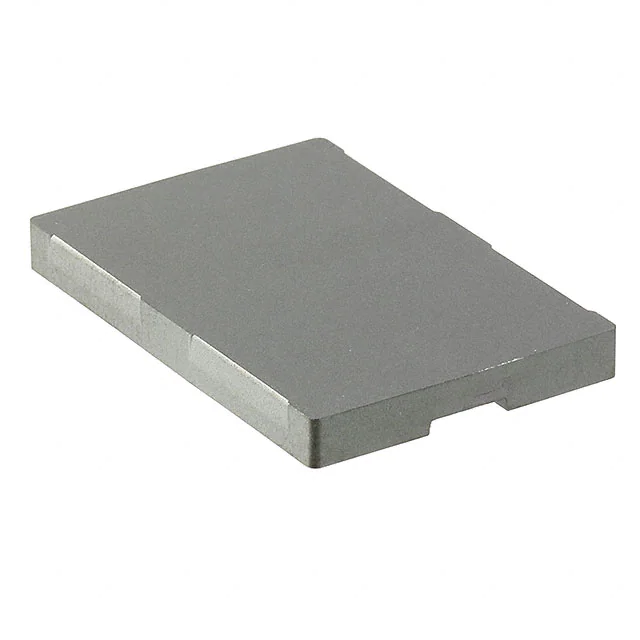

B66289K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	2,063	-	запрос цен	Техническая	Tray	I38/4/25	Active	I	I 38 x 4 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

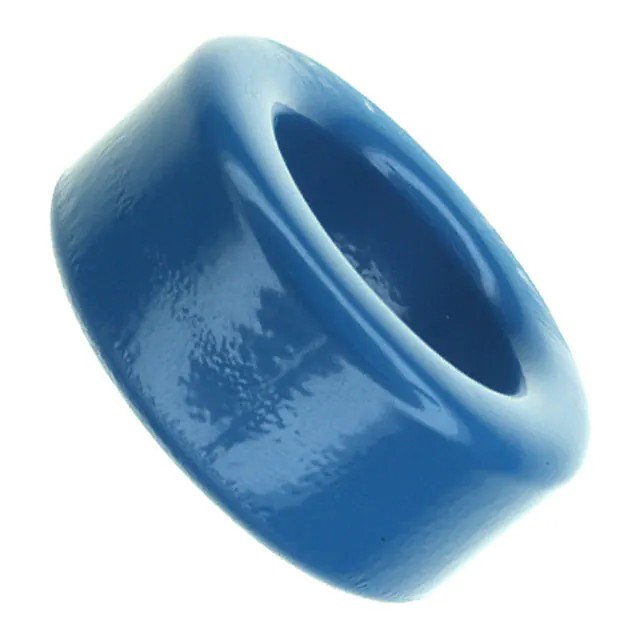

B64290L0674X830 FERRITE CORE TOROID 5.63UH N30 EPCOS - TDK Electronics	2,596	-	запрос цен	Техническая	Tray	TX36/23/15	Active	Toroid	-	N30	1.476 (37.50mm)	5.75 µH	±25%	Ungapped	-	4300	0.94	89.65	95.89	-	8597	Epoxy	0.638 (16.20mm)
PQ35/35-3C95 FERRITE CORE 2PC SET Ferroxcube	2,790	-	запрос цен	Техническая	Bulk	-	Active	PQ	PQ 35 x 35	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.366 (34.70mm)
PLT58/38/4-3C95 FERRITE CORE Ferroxcube	2,162	-	запрос цен	Техническая	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)

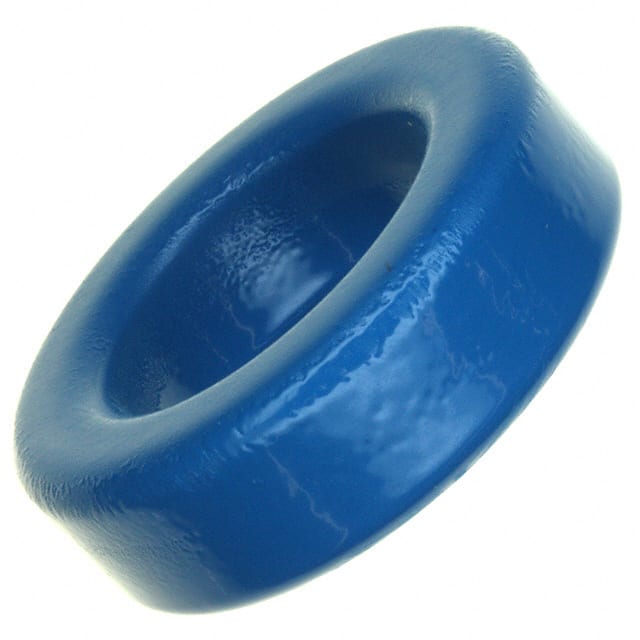

B64290L0022X830 FERRITE CORE TOROID 5UH N30 EPCOS - TDK Electronics	2,439	-	запрос цен	Техническая	Tray	TX42/26/13	Active	Toroid	-	N30	1.717 (43.60mm)	5 µH	±25%	Ungapped	-	4300	1.08	103	95.75	-	9862	Epoxy	0.535 (13.60mm)
B66335G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	674	-	запрос цен	Техническая	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
PQ35/35-3F36 FERRITE CORE 2PC SET Ferroxcube	649	-	запрос цен	Техническая	Bulk	-	Active	PQ	PQ 35 x 35	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.366 (34.70mm)
B65815E0000R087 FERRITE CORE RM 5.3UH N87 2PCS EPCOS - TDK Electronics	3,707	-	запрос цен	Техническая	Box	RM12	Active	RM	RM 12	N87	-	5.3 µH	-20%, +30%	Ungapped	1640	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65651T0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	3,222	-	запрос цен	Техническая	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	400 nH	±3%	Gapped	192	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
T60006L2030W358 NANOCRYSTALLINE CORE, 30X20X10 VACUUMSCHMELZE	3,640	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	1.299 (33.00mm)	15.5 µH	-	Ungapped	-	-	-	78.5	40	-	-	Uncoated	0.492 (12.50mm)

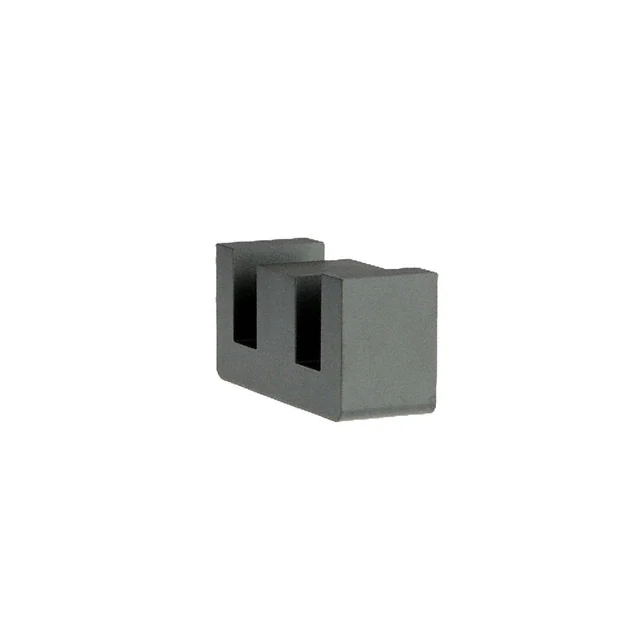

B66335G2000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	428	-	запрос цен	Техническая	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

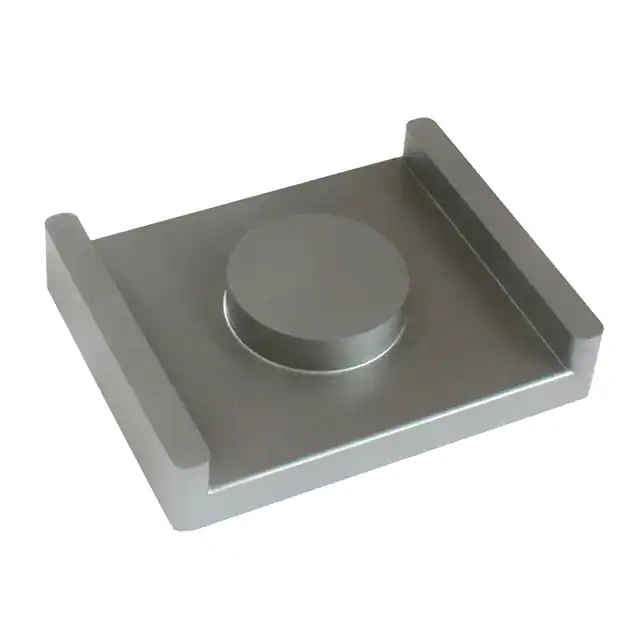

ER51/10/38-3C92 FERRITE CORE Ferroxcube	2,988	-	запрос цен	Техническая	Bulk	-	Active	ER	ER 51 x 10 x 38	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.400 (10.16mm)
PQ35/35-3C97 FERRITE CORE 2PC SET Ferroxcube	252	-	запрос цен	Техническая	Bulk	-	Active	PQ	PQ 35 x 35	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.366 (34.70mm)

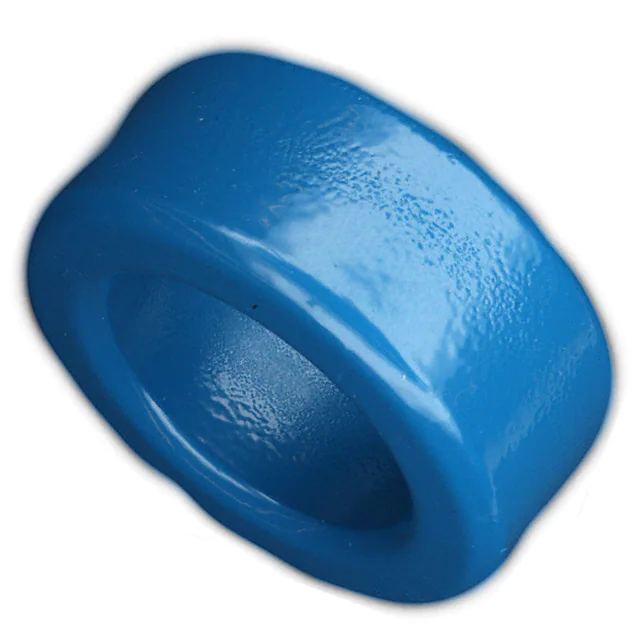

B64290L0674X038 FERRITE CORE TOROID 13.1UH T38 EPCOS - TDK Electronics	741	-	запрос цен	Техническая	Tray	TX36/23/15	Active	Toroid	-	T38	1.476 (37.50mm)	13.5 µH	±30%	Ungapped	-	10000	0.94	89.65	95.89	-	8597	Epoxy	0.638 (16.20mm)
B65671D0000R048 FERRITE CORE P 4.9UH N48 2PCS EPCOS - TDK Electronics	2,986	-	запрос цен	Техническая	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	4.9 µH	-20%, +30%	Ungapped	1560	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65701W0000R087 FERRITE CORE P 6.4UH N87 2PCS EPCOS - TDK Electronics	141	-	запрос цен	Техническая	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N87	1.200 (30.50mm)	6.4 µH	-20%, +30%	Ungapped	1620	2200	0.32	46	145	117	6670	Uncoated	0.374 (9.50mm)

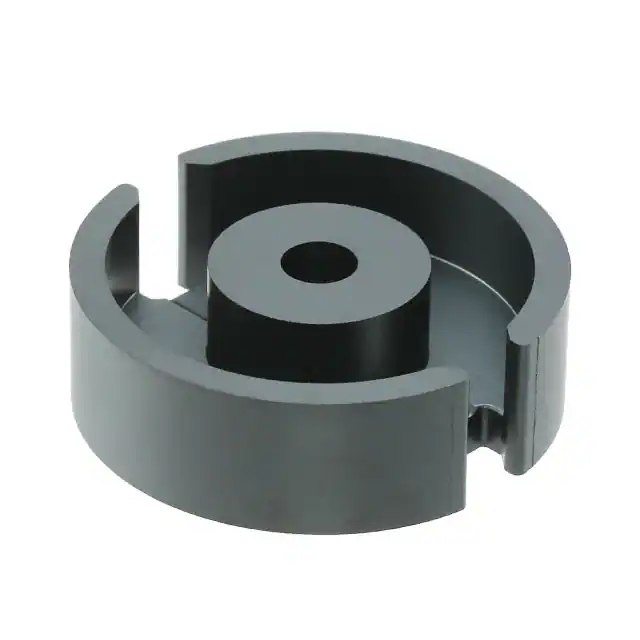

P30/19-3C91 FERRITE CORE 2PC SET Ferroxcube	812	-	запрос цен	Техническая	Bulk	-	Active	P (Pot Core)	P 30 x 19	3C91	1.181 (30.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.740 (18.80mm)
PQ40/40-3F36 FERRITE CORE 2PC SET Ferroxcube	161	-	запрос цен	Техническая	Bulk	-	Active	PQ	PQ 40 x 40	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567 (39.80mm)
