Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
T60006L2045V118 NANOCRYSTALLINE CORE, 45X30X15 VACUUMSCHMELZE	198	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	1.906 (48.40mm)	24.3 µH	-	Ungapped	-	-	-	118	85.5	-	-	Uncoated	0.717 (18.20mm)
P42/29-3C91 FERRITE CORE 2PC SET Ferroxcube	517	-	запрос цен	Техническая	Bulk	-	Active	P (Pot Core)	P 42 x 29	3C91	1.669 (42.40mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	1.157 (29.40mm)
T60006L2050W565 NANOCRYSTALLINE CORE, 50X40X20 VACUUMSCHMELZE	196	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	2.106 (53.50mm)	18 µH	-	Ungapped	-	-	-	141	76	-	-	Uncoated	0.921 (23.40mm)

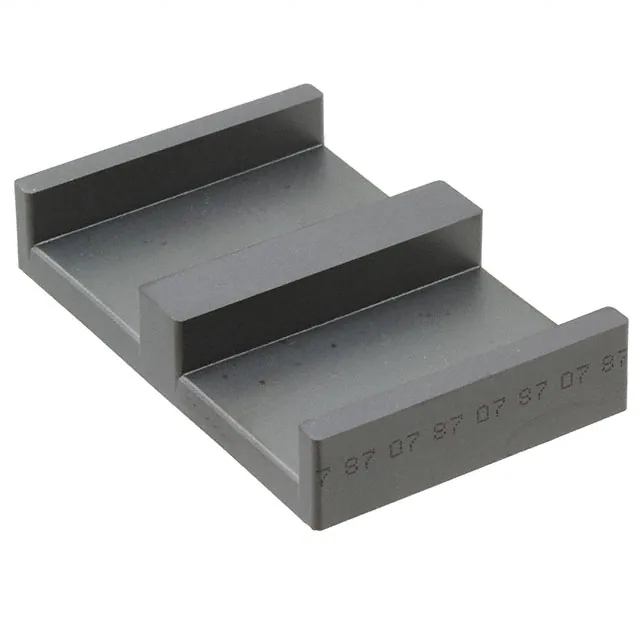

B66293G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	510	-	запрос цен	Техническая	Box	ELP58/11/38	Active	ELP	ELP 58 x 11 x 38	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
B67345B0004X087 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	310	-	запрос цен	Техническая	Box	I93/28/16	Active	I	I 93 x 28 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.102 (28.00mm)
B65981A0000R097 FERRITE CORE PQ 6.7UH N97 2PCS EPCOS - TDK Electronics	307	-	запрос цен	Техническая	Box	PQ50/50	Active	PQ	PQ 50 x 50	N97	-	6.7 µH	-20%, +30%	Ungapped	1825	-	0.342	113	330	290	37270	Uncoated	0.984 (25.00mm)
B64290L0699X087 FERRITE CORE TOROID 5UH N87 EPCOS - TDK Electronics	142	-	запрос цен	Техническая	Box	TX63/38/25	Active	Toroid	-	N87	2.571 (65.30mm)	5 µH	±25%	Ungapped	-	2200	0.5	152.1	305.9	-	46530	Epoxy	1.047 (26.60mm)
B64290L0082X038 FERRITE CORE TOROID 17.4UH T38 EPCOS - TDK Electronics	323	-	запрос цен	Техническая	Tray	TX50/30/20	Active	Toroid	-	T38	2.040 (51.80mm)	17.4 µH	±30%	Ungapped	-	8500	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)
B64290L0699X065 FERRITE CORE TOROID 12.6UH T65 EPCOS - TDK Electronics	107	-	запрос цен	Техническая	Box	TX63/38/25	Active	Toroid	-	T65	2.571 (65.30mm)	12.6 µH	±30%	Ungapped	-	5000	0.5	152.1	305.9	-	46530	Epoxy	1.047 (26.60mm)
B65684A0315A027 FERRITE CORE PM 315NH N27 2PCS EPCOS - TDK Electronics	216	-	запрос цен	Техническая	Box	PM62/49	Active	PM	PM 62 x 49	N27	2.441 (62.00mm)	315 nH	±3%	Gapped	48	2000	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)
B67385P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	189	-	запрос цен	Техническая	Box	I126/28/20	Active	I	I 126 x 28 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.102 (28.00mm)
E100/60/28-3C94 FERRITE CORE Ferroxcube	116	-	запрос цен	Техническая	Bulk	-	Active	E	E 100 x 60 x 28	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.339 (59.40mm)
U93/52/30-3C94 FERRITE CORE Ferroxcube	495	-	запрос цен	Техническая	Bulk	-	Active	U	U 93 x 52 x 30	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.047 (52.00mm)
B64290A0084X830 FERRITE CORE TOROID 5.5UH N30 EPCOS - TDK Electronics	241	-	запрос цен	Техническая	Tray	T102/66/15	Active	Toroid	R 102 x 65.8 x 15	N30	4.016 (102.00mm)	5.5 µH	±25%	Ungapped	-	4200	0.96	255.3	267.2	-	68220	Uncoated	0.591 (15.00mm)
U93/76/30-3C94 FERRITE CORE Ferroxcube	275	-	запрос цен	Техническая	Bulk	-	Active	U	U 93 x 76 x 30	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
T60006L2102W947 NANOCRYSTALLINE CORE, 102X76X25 VACUUMSCHMELZE	100	-	запрос цен	Техническая	Box	-	Active	-	-	-	4.256 (108.10mm)	4.2 µH	-	Ungapped	-	-	-	280	247	-	-	Uncoated	1.193 (30.30mm)
PM114/93-3C94 FERRITE CORE 2PC SET Ferroxcube	176	-	запрос цен	Техническая	Bulk	-	Active	PM	PM 114 x 93	3C94	4.488 (114.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	3.661 (93.00mm)
B64290L0038X027 FERRITE CORE EPCOS - TDK Electronics	144	-	запрос цен	Техническая	Box	TX10/6/4	Active	Toroid	-	N27	-	-	-	Gapped	-	2000	-	-	-	-	-	Epoxy	-
4052077111 52 ROD Fair-Rite Products Corp.	2,157	-	запрос цен	Техническая	Box	-	Active	ROD	-	52	0.079 (2.00mm)	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
5977000101 77 TOROID Fair-Rite Products Corp.	3,639	-	запрос цен	Техническая	Box	-	Active	Toroid	-	77	0.230 (5.84mm)	-	±25%	Ungapped	-	2000	-	13	2	-	27	Uncoated	0.060 (1.52mm)
