Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66457G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	965	-	запрос цен	Техническая	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B65807J0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	539	-	запрос цен	Техническая	Strip	RM6	Active	RM	RM 6	N48	-	250 nH	±3%	Gapped	171	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65803P0160J087 FERRITE CORE EPCOS - TDK Electronics	120	-	запрос цен	Техническая	Box	RM4/LP	Active	RM	RM 4 LP	N87	-	-	-	Gapped	-	2200	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)
B65805J0160A087 FERRITE CORE RM 160NH N87 2PCS EPCOS - TDK Electronics	2,190	-	запрос цен	Техническая	Box	RM5	Active	RM	RM 5	N87	-	160 nH	±3%	Gapped	118	-	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)
B66363G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	304	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B66363G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	293	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B65819J0000R030 FERRITE CORE RM 5UH N30 2PCS EPCOS - TDK Electronics	101	-	запрос цен	Техническая	Box	RM7	Active	RM	RM 7	N30	-	5 µH	-20%, +30%	Ungapped	2810	4300	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)

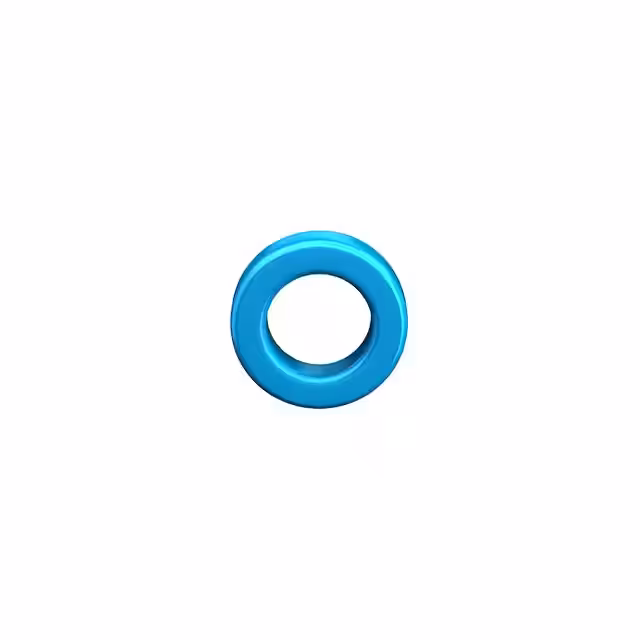

B64290L0651X038 FERRITE CORE TOROID 12UH T38 EPCOS - TDK Electronics	974	-	запрос цен	Техническая	Box	TX22/14/13	Active	Toroid	-	T38	0.917 (23.30mm)	12 µH	±30%	Ungapped	-	10000	1.05	54.15	51.15	-	2789	Epoxy	0.543 (13.80mm)
B66484K0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	861	-	запрос цен	Техническая	Box	I25/3/15	Active	I	I 25 x 3 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

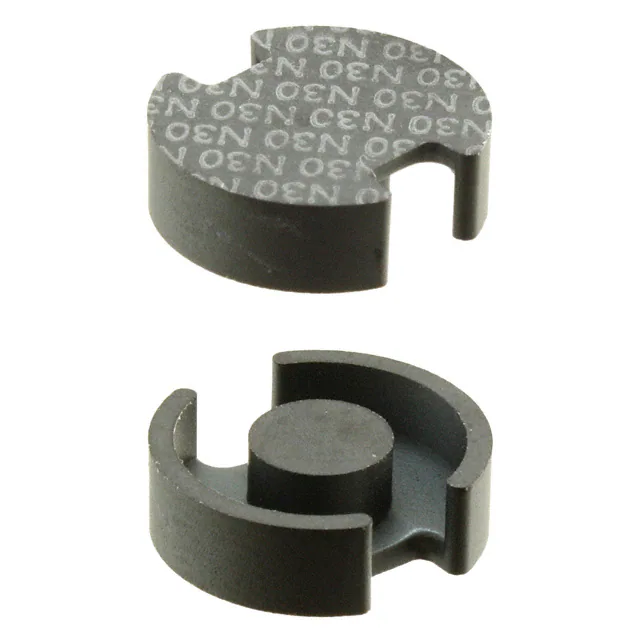

B65541W0000R030 FERRITE CORE P 4.6UH N30 2PCS EPCOS - TDK Electronics	421	-	запрос цен	Техническая	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N30	0.563 (14.30mm)	4.6 µH	-20%, +30%	Ungapped	2680	4300	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)
B66484K0000X149 FERRITE CORE I N49 1PC EPCOS - TDK Electronics	487	-	запрос цен	Техническая	Box	I25/3/15	Active	I	I 25 x 3 x 15	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B65491C0000Y030 FERRITE CORE P 500NH N30 2PCS EPCOS - TDK Electronics	473	-	запрос цен	Техническая	Box	P3.3/2.6	Active	P (Pot Core)	P 3.3 x 2.6	N30	0.132 (3.35mm)	500 nH	-30%, +40%	Ungapped	1480	4300	3.72	5.1	1.37	-	7	Uncoated	0.051 (1.29mm)

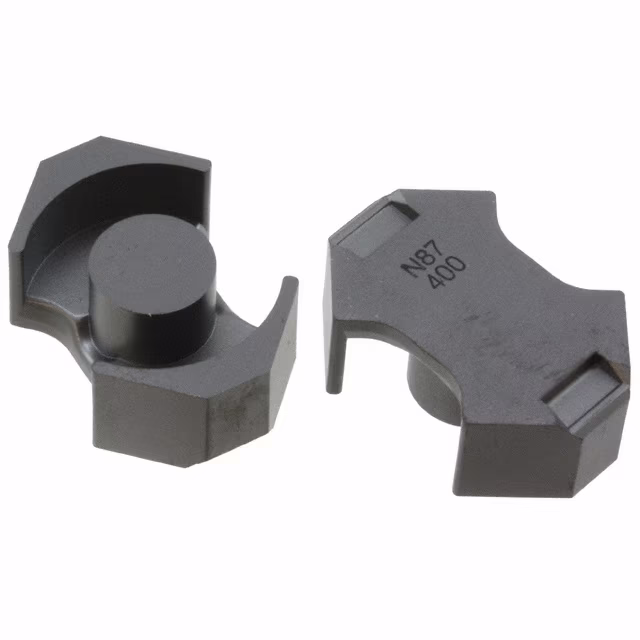

B65811J0400A087 FERRITE CORE RM 400NH N87 2PCS EPCOS - TDK Electronics	751	-	запрос цен	Техническая	Box	RM8	Active	RM	RM 8	N87	-	400 nH	±3%	Gapped	189	2200	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B66363G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	370	-	запрос цен	Техническая	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B65803N0100A048 FERRITE CORE RM 100NH N48 2PCS EPCOS - TDK Electronics	140	-	запрос цен	Техническая	Box	RM4	Active	RM	RM 4	N48	-	100 nH	±3%	Gapped	152	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B66287G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	940	-	запрос цен	Техническая	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)

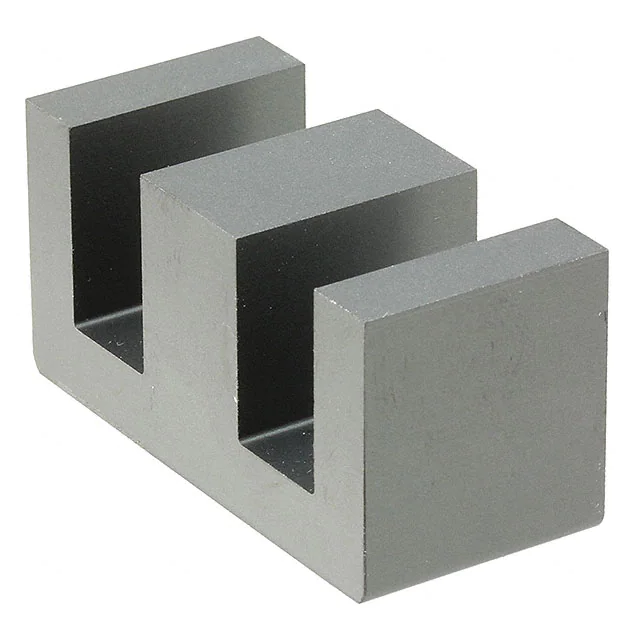

B66329G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	159	-	запрос цен	Техническая	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

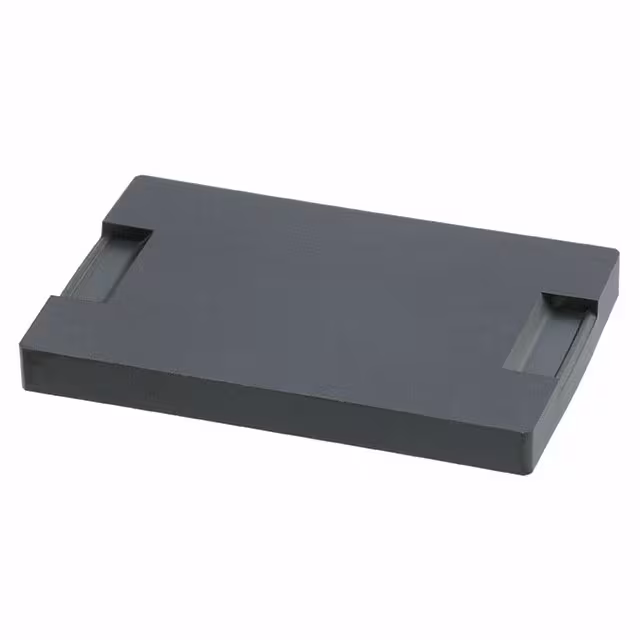

B66457K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	947	-	запрос цен	Техническая	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B65811J0250J041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	639	-	запрос цен	Техническая	Box	RM8	Active	RM	RM 8	N41	-	250 nH	±5%	Gapped	118	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

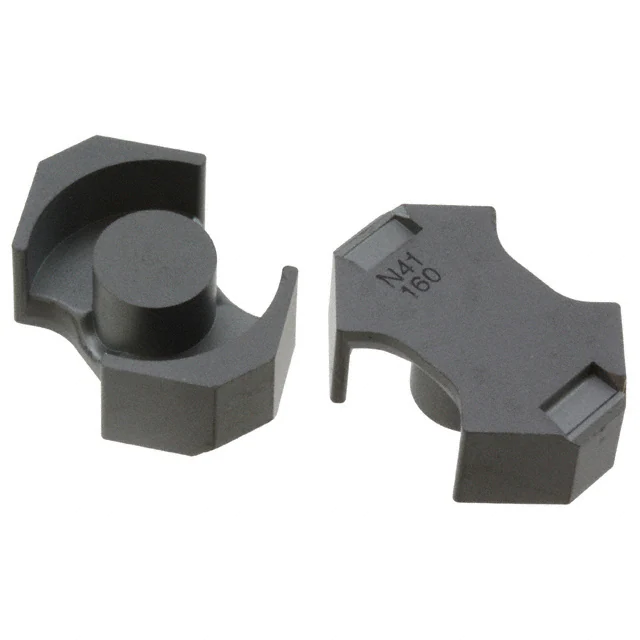

B65811J0160A041 FERRITE CORE RM 160NH N41 2PCS EPCOS - TDK Electronics	2,681	-	запрос цен	Техническая	Box	RM8	Active	RM	RM 8	N41	-	160 nH	±3%	Gapped	76	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
