Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65686A0000R027 FERRITE CORE PM 10UH N27 2PCS EPCOS - TDK Electronics	3,555	-	запрос цен	Техническая	Box	PM74/59	Active	PM	PM 74 x 59	N27	2.913 (74.00mm)	10 µH	-20%, +30%	Ungapped	1290	2000	0.162	128	790	630	101000	Uncoated	1.161 (29.50mm)
B65713A0000R087 FERRITE CORE PM 12UH N87 2PCS EPCOS - TDK Electronics	2,083	-	запрос цен	Техническая	Box	PM87/70	Active	PM	PM 87 x 70	N87	3.425 (87.00mm)	12 µH	-20%, +30%	Ungapped	1530	2200	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)
B65733A0000R027 FERRITE CORE PM 16UH N27 2PCS EPCOS - TDK Electronics	3,055	-	запрос цен	Техническая	Tray	PM114/93	Active	PM	PM 114 x 93	N27	4.488 (114.00mm)	16 µH	-20%, +30%	Ungapped	1480	2000	0.116	200	1720	1380	344000	Uncoated	1.831 (46.50mm)
B66307G0060X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	474	-	запрос цен	Техническая	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
B66317G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	351	-	запрос цен	Техническая	Box	E25/13/7	Active	E	E 25 x 13 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B66483P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	920	-	запрос цен	Техническая	Box	I20/2.3/14	Active	I	I 20 x 2	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B65523J0000R092 FERRITE CORE ER 660NH N92 2PCS EPCOS - TDK Electronics	587	-	запрос цен	Техническая	Box	ER9.5	Active	ER	ER 9.5 x 5	N92	-	660 nH	-20%, +30%	Ungapped	811	1500	1.54	13.6	8.81	-	120	Uncoated	0.098 (2.50mm)
B66483P0000X149 FERRITE CORE I N49 1PC EPCOS - TDK Electronics	253	-	запрос цен	Техническая	Box	I20/2.3/14	Active	I	I 20 x 2	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B66483P0000X192 FERRITE CORE I N92 1PC EPCOS - TDK Electronics	510	-	запрос цен	Техническая	Box	I20/2.3/14	Active	I	I 20 x 2	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B66381G0000X172 FERRITE CORE E N72 1PC EPCOS - TDK Electronics	611	-	запрос цен	Техническая	Box	B66381	Not For New Designs	E	E 40 x 16 x 12	N72	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.650 (16.50mm)
B66479G0000X197 FERRITE CORE EQ N97 1PC EPCOS - TDK Electronics	671	-	запрос цен	Техническая	Box	EQ13/9/3	Active	EQ	EQ 13 x 3	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)
B66283K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	329	-	запрос цен	Техническая	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
B66453K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	964	-	запрос цен	Техническая	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
B66453G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	524	-	запрос цен	Техническая	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B64290A0618X033 FERRITE CORE EPCOS - TDK Electronics	532	-	запрос цен	Техническая	Box	T25.3/14.8/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B66484K0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	370	-	запрос цен	Техническая	Box	I25/3/15	Active	I	I 25 x 3 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B65819J0000R087 FERRITE CORE RM 2.7UH N87 2PCS EPCOS - TDK Electronics	862	-	запрос цен	Техническая	Box	RM7	Active	RM	RM 7	N87	-	2.7 µH	-20%, +30%	Ungapped	1520	2200	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)
B66455G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	425	-	запрос цен	Техническая	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)

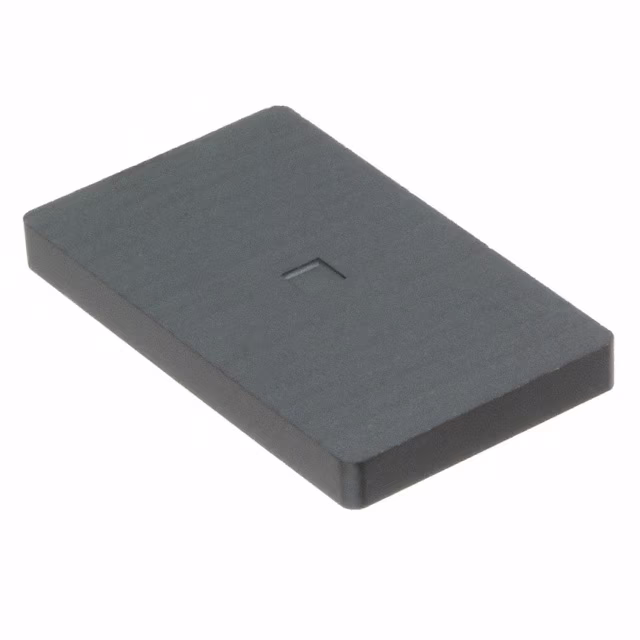

B66482K0000X192 FERRITE CORE I N92 1PC EPCOS - TDK Electronics	2,533	-	запрос цен	Техническая	Box	I23/2/13	Active	I	I 23 x 2 x 13	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.083 (2.10mm)
B66285K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	416	-	запрос цен	Техническая	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
