Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65843A0160B097 FERRITE CORE EPCOS - TDK Electronics	3,330	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	N97	-	-	-	Gapped	-	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65517D0000R030 FERRITE CORE P 2.5UH N30 2PCS EPCOS - TDK Electronics	2,635	-	запрос цен	Техническая	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N30	0.366 (9.30mm)	2.5 µH	-20%, +30%	Ungapped	2490	4300	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517W0000R030 FERRITE CORE P 2.5UH N30 2PCS EPCOS - TDK Electronics	2,000	-	запрос цен	Техническая	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N30	0.366 (9.30mm)	2.5 µH	-20%, +30%	Ungapped	2490	4300	1.13	13.4	11.9	9.3	159	Uncoated	0.106 (2.70mm)
B64290L0626X035 FERRITE CORE TOROID 4.2UH T35 EPCOS - TDK Electronics	2,096	-	запрос цен	Техническая	Box	TX22.6/14.7/9.2	Active	Toroid	-	T35	0.937 (23.80mm)	4.2 µH	±25%	Ungapped	-	5300	1.59	56.82	35.78	-	2033	Epoxy	0.402 (10.20mm)
B65517D0000R033 FERRITE CORE EPCOS - TDK Electronics	3,121	-	запрос цен	Техническая	Box	P9/5	Active	-	P 9 x 5	M33	0.366 (9.30mm)	-	-	-	-	750	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B66361G0100X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,269	-	запрос цен	Техническая	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B66361G0200X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,625	-	запрос цен	Техническая	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B66432G0000X187 FERRITE CORE EV N87 1PC EPCOS - TDK Electronics	3,944	-	запрос цен	Техническая	Box	EV30/16/13	Active	EV	EV 30 x 16 x 13	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
B65843P0000Y038 FERRITE CORE EPO 6.6UH T38 2PCS EPCOS - TDK Electronics	3,916	-	запрос цен	Техническая	Box	EP13/LP	Active	EPO	EPO 13	T38	-	6.6 µH	-30%, +40%	Ungapped	7020	2300	1.34	25.8	19.3	14.9	498	Uncoated	0.256 (6.50mm)
B65843A0000R035 FERRITE CORE EPCOS - TDK Electronics	2,272	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T35	-	-	-	-	-	6000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65531D0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	3,611	-	запрос цен	Техническая	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	100 nH	±3%	Gapped	80	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)

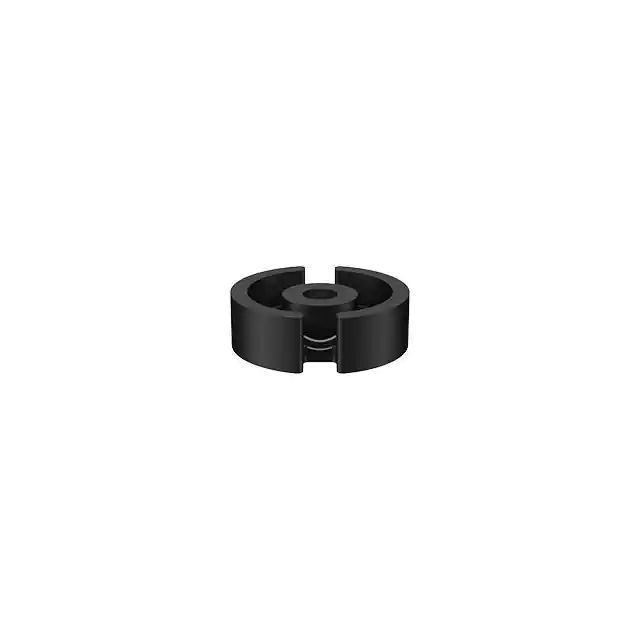

B65531W0000Y038 FERRITE CORE P 7UH T38 2PCS EPCOS - TDK Electronics	3,237	-	запрос цен	Техническая	Box	P11/7	Active	P (Pot Core)	P 11 x 7	T38	0.445 (11.30mm)	7 µH	-30%, +40%	Ungapped	5130	10000	0.92	16.3	17.7	14.1	289	Uncoated	0.130 (3.30mm)
B65843A0100A038 FERRITE CORE EP 100NH T38 2PCS EPCOS - TDK Electronics	3,052	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T38	-	100 nH	±3%	Gapped	99	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0200B038 FERRITE CORE EP 200NH T38 2PCS EPCOS - TDK Electronics	3,202	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T38	-	200 nH	±4%	Gapped	198	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0200J038 FERRITE CORE EPCOS - TDK Electronics	2,855	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T38	-	-	-	Gapped	-	10000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0250J038 FERRITE CORE EP 250NH T38 2PCS EPCOS - TDK Electronics	2,670	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T38	-	250 nH	±5%	Gapped	247	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0315C038 FERRITE CORE EP 315NH T38 2PCS EPCOS - TDK Electronics	2,783	-	запрос цен	Техническая	Box	EP13	Active	EP	EP 13	T38	-	315 nH	±6%	Gapped	311	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B64290A0618X037 FERRITE CORE TOROID 6.97UH T37 EPCOS - TDK Electronics	2,748	-	запрос цен	Техническая	Box	T25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 10	T37	0.996 (25.30mm)	6.97 µH	±25%	Ungapped	-	6500	1.17	60.07	51.26	-	3079	Uncoated	0.394 (10.00mm)
B65805C0000R041 FERRITE CORE EPCOS - TDK Electronics	3,563	-	запрос цен	Техническая	Box	RM5	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B65517D0040A033 FERRITE CORE EPCOS - TDK Electronics	3,897	-	запрос цен	Техническая	Box	P9/5	Active	-	P 9 x 5	M33	0.366 (9.30mm)	-	-	Gapped	-	750	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
