Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX14/9/5-4C65 FERRITE CORES ROUND Ferroxcube	3,567	-	запрос цен	Техническая	Bulk	-	Active	Toroid	TX 14 x 9 x 5	4C65	0.561 (14.25mm)	-	±30%	Ungapped	-	-	2.84	35	12.3	-	430	Epoxy	0.207 (5.25mm)

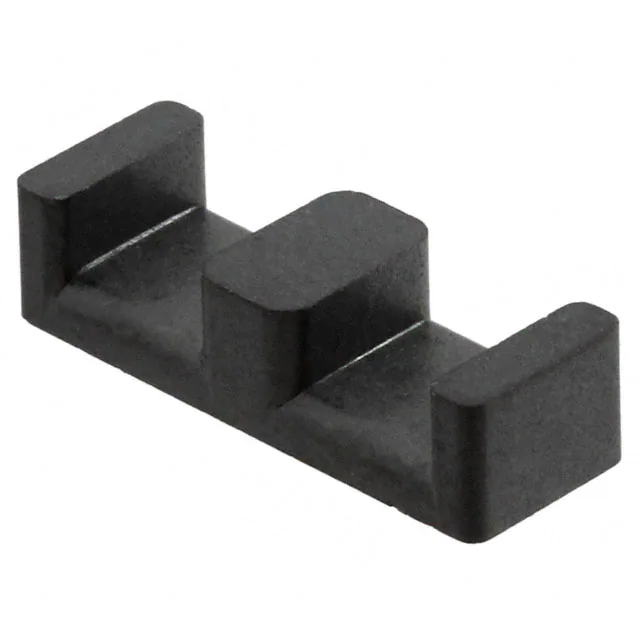

B66453G0000X608 ELP18/4/10-PC200 EPCOS - TDK Electronics	3,968	-	запрос цен	Техническая	Bulk	ELP18/4/10	Active	ELP	-	PC200	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

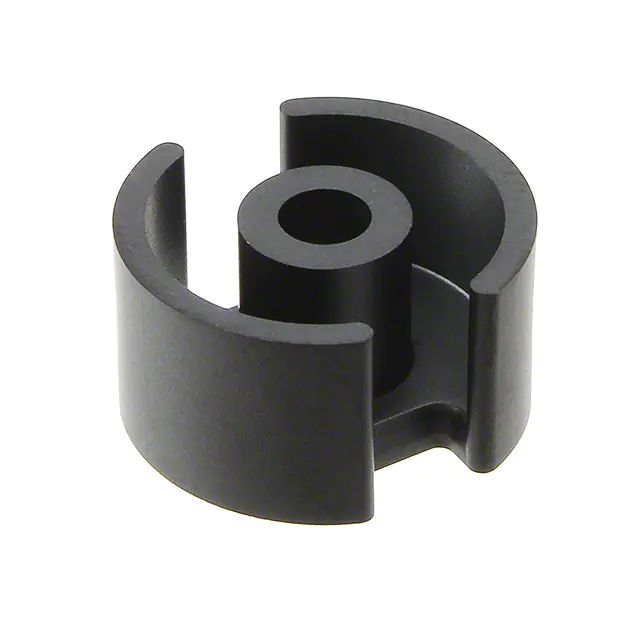

B65937A0000X022 FERRITE CORE P N22 EPCOS - TDK Electronics	3,141	-	запрос цен	Техническая	Box	PCH14.4/7.5	Active	P (Pot Core)	P Core Half 14 x 7.5	N22	0.567 (14.40mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)
EQ20/R-3C95 FERRITE CORE Ferroxcube	3,801	-	запрос цен	Техническая	Bulk	-	Active	EQ	EQ 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.248 (6.30mm)
5943001001 43 TOROID Fair-Rite Products Corp.	3,583	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	43	1.142 (29.00mm)	-	±20%	Ungapped	-	800	-	73	37	-	2700	Uncoated	0.295 (7.50mm)
ETD34/17/11-3C97 FERRITE CORE Ferroxcube	2,510	-	запрос цен	Техническая	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)

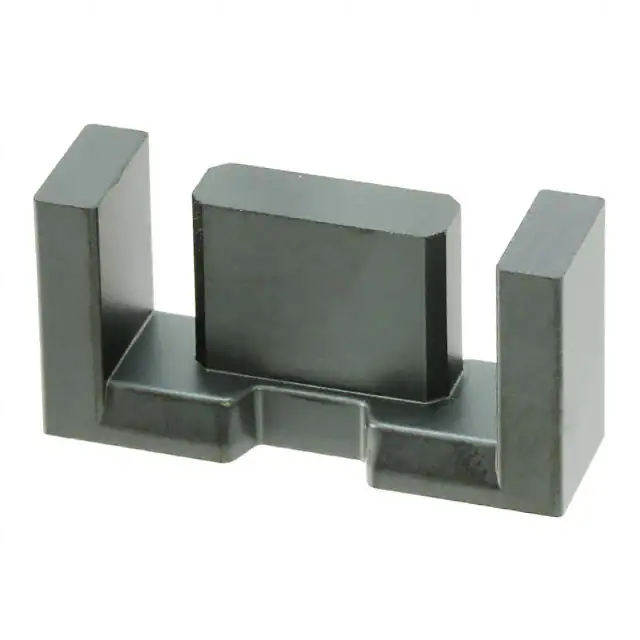

B66423U0160K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,802	-	запрос цен	Техническая	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

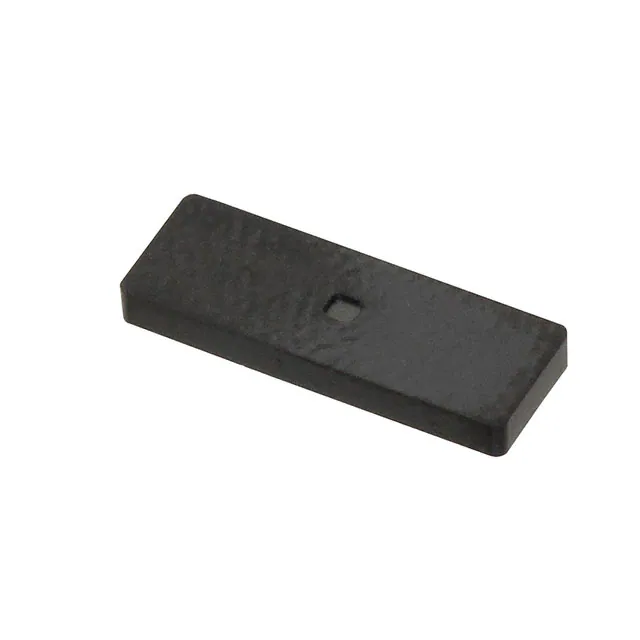

B66281K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	3,480	-	запрос цен	Техническая	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
B62152A0007X001 FERRITE CORE 2 HOLE 140NH K1 EPCOS - TDK Electronics	3,993	-	запрос цен	Техническая	Box	MHB2-7.25/4.2/6.2	Active	Multi-Hole (2)	-	K1	-	140 nH	±30%	Ungapped	-	80	0.75	7.6	10.2	-	78	Uncoated	0.244 (6.20mm)

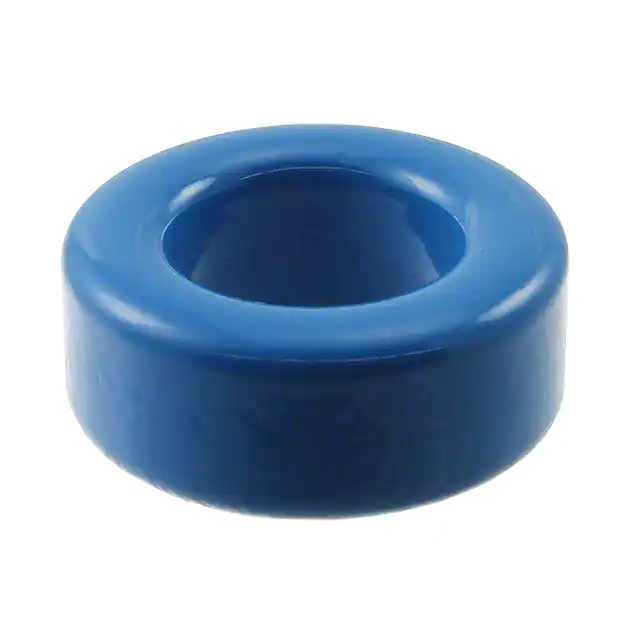

B64290L0618X027 FERRITE CORE TOROID EPCOS - TDK Electronics	3,524	-	запрос цен	Техническая	Box	TX25.3/14.8/10	Active	Toroid	-	N27	1.047 (26.60mm)	2.15 µH	±25%	Ungapped	-	2000	1.17	60.07	51.26	51.26	3079	Epoxy	0.433 (11.00mm)
E22/6/16/R-3C95 FERRITE CORE Ferroxcube	916	-	запрос цен	Техническая	Bulk	-	Active	E	E 22 x 6 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
4061378111 61 ROD Fair-Rite Products Corp.	3,641	-	запрос цен	Техническая	Bulk	-	Active	ROD	-	61	0.374 (9.50mm)	-	-	Ungapped	-	125	-	-	-	-	-	Uncoated	-
ETD39/20/13-3C94 FERRITE CORE Ferroxcube	3,636	-	запрос цен	Техническая	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)

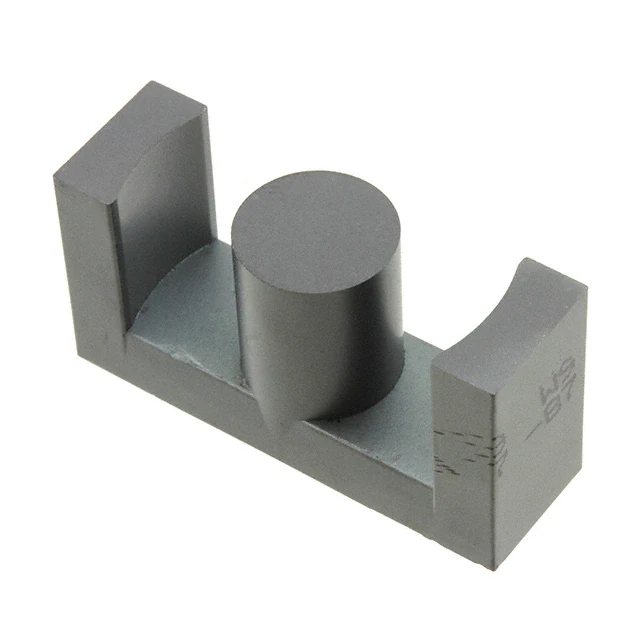

B66361G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,255	-	запрос цен	Техническая	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)

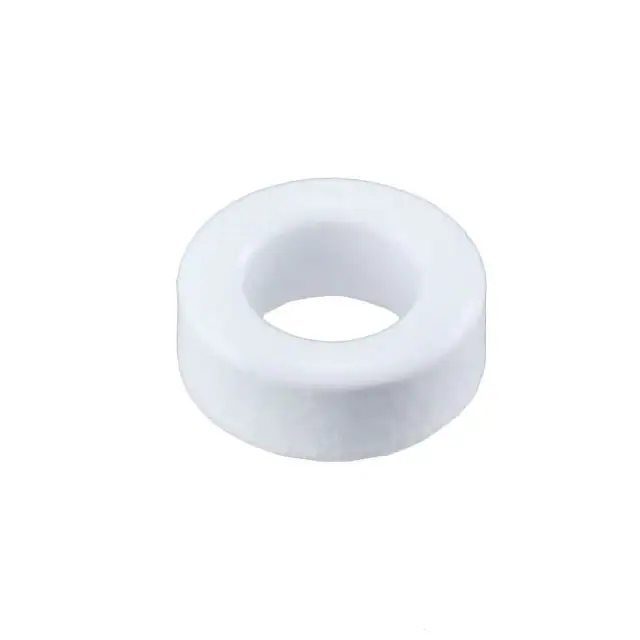

TX13/7.9/6.4-4C65 FERRITE CORES ROUND Ferroxcube	3,366	-	запрос цен	Техническая	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	4C65	0.526 (13.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.275 (7.00mm)
B64290A0719X049 FERRITE CORE TOROID 1.13UH N49 EPCOS - TDK Electronics	3,066	-	запрос цен	Техническая	Box	T22.1/13.7/7.9	Active	Toroid	R 22.1 x 13.7 x 7.9	N49	0.870 (22.10mm)	1.13 µH	±25%	Ungapped	-	1500	1.66	54.2	32.6	-	1763	Uncoated	0.311 (7.90mm)
T60006L2015W865 NANOCRYSTALLINE CORE, 15X10X4.5 VACUUMSCHMELZE	3,000	-	запрос цен	Техническая	Box	-	Active	Toroid	-	-	0.673 (17.10mm)	27 µH	-	Ungapped	-	-	-	39.3	9	-	-	Uncoated	0.256 (6.50mm)
5961000621 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	3,232	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	61	0.860 (21.84mm)	75 nH	±25%	Ungapped	-	125	213	52	24.3	-	1260	Plastic	0.280 (7.11mm)
5977001201 77 TOROID Fair-Rite Products Corp.	2,961	-	запрос цен	Техническая	Bulk	-	Active	Toroid	-	77	1.142 (29.00mm)	-	±25%	Ungapped	-	2000	-	73	68	-	5000	Uncoated	0.545 (13.84mm)
B66358G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	3,109	-	запрос цен	Техническая	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
