| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

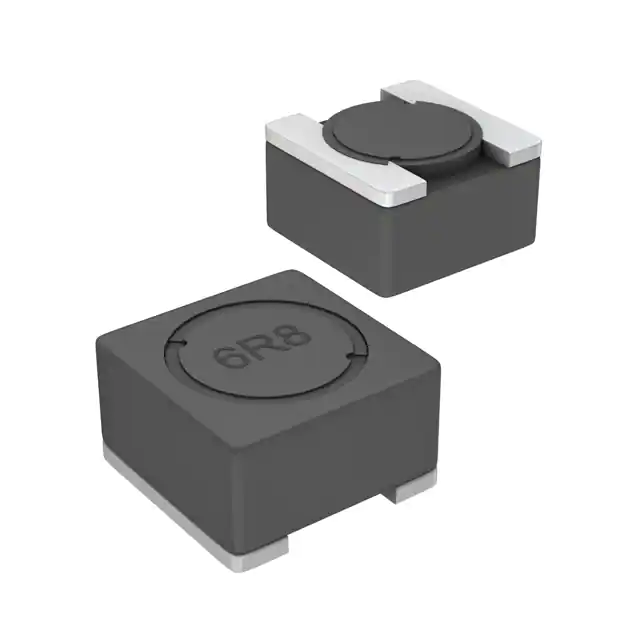

SRR4028-101YFIXED IND 100UH 510MA 600MOHM SM |
13,232 | - |
|
Техническая |
1919 (4848 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRR4028 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 510 mA | 300mA | Shielded | 600mOhm Max | 8.78 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

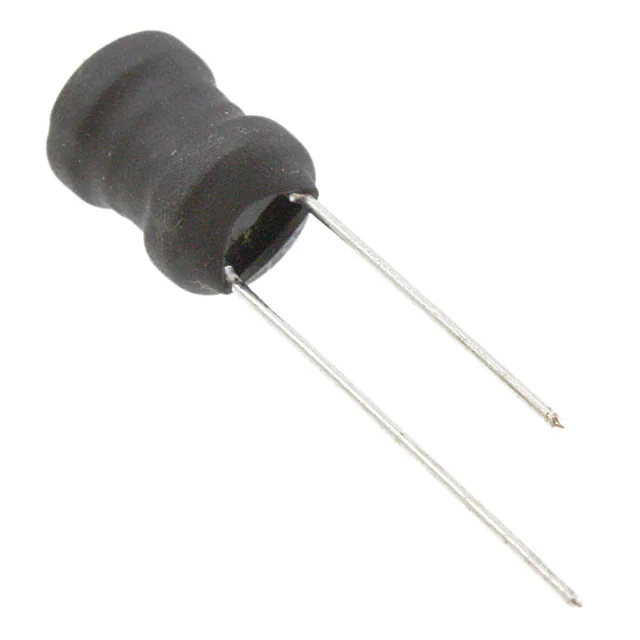

RLB0914-681KLFIXED IND 680UH 490MA 1.6 OHM TH |
122,757 | - |
|
Техническая |
Radial, Vertical Cylinder | Bulk | RLB | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 490 mA | 900mA | Unshielded | 1.6Ohm Max | 20 @ 796kHz | 1.6MHz | - | -40°C ~ 105°C | 796 kHz | - | Through Hole | - |
|

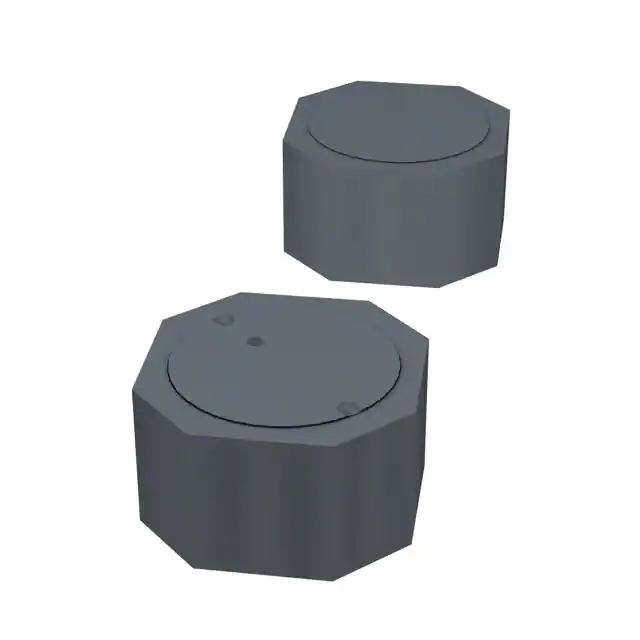

SRU5028-3R3YFIXED IND 3.3UH 2.8A 24 MOHM SMD |
3,240 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU5028 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.1A | Shielded | 24mOhm | 10 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

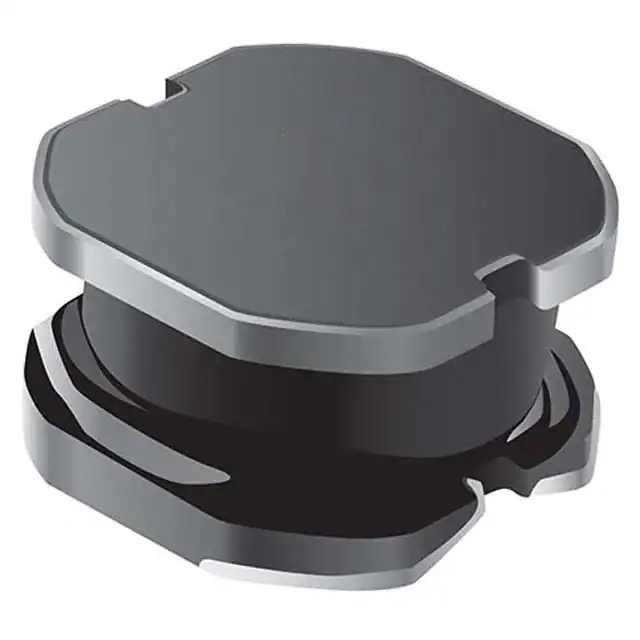

SRN1060-151MFIXED IND 150UH 1.25A 300MOHM SM |
26,954 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN1060 | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.25 A | 1.35A | Semi-Shielded | 300mOhm Max | 13 @ 2.52MHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRN1060-100MFIXED IND 10UH 5.4A 29 MOHM SMD |
13,550 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN1060 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 5.2A | Semi-Shielded | 29mOhm Max | 25 @ 7.96MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRN1060-470MFIXED IND 47UH 2.5A 110 MOHM SMD |
14,719 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN1060 | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | 2.3A | Semi-Shielded | 110mOhm Max | 16 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

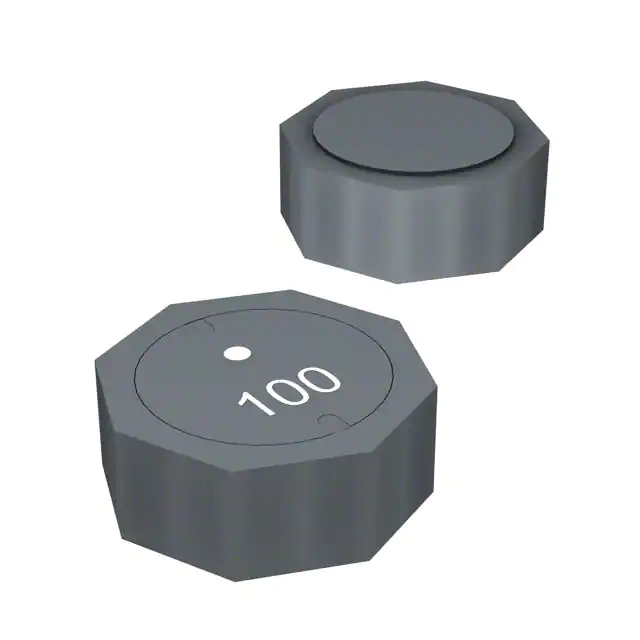

SRU1038-151YFIXED IND 150UH 900MA 358MOHM SM |
65,204 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU1038 | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 900 mA | 800mA | Shielded | 358mOhm | 20 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRU1038-220YFIXED IND 22UH 2.2A 55.8MOHM SMD |
26,786 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU1038 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.2 A | 2.3A | Shielded | 55.8mOhm | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRU1038-331YFIXED IND 330UH 550MA 773MOHM SM |
10,591 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU1038 | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 550 mA | 520mA | Shielded | 773mOhm | 20 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRU1038-100YFIXED IND 10UH 3.8A 25 MOHM SMD |
1,918 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU1038 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.8 A | 3.6A | Shielded | 25mOhm | 24 @ 7.96MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

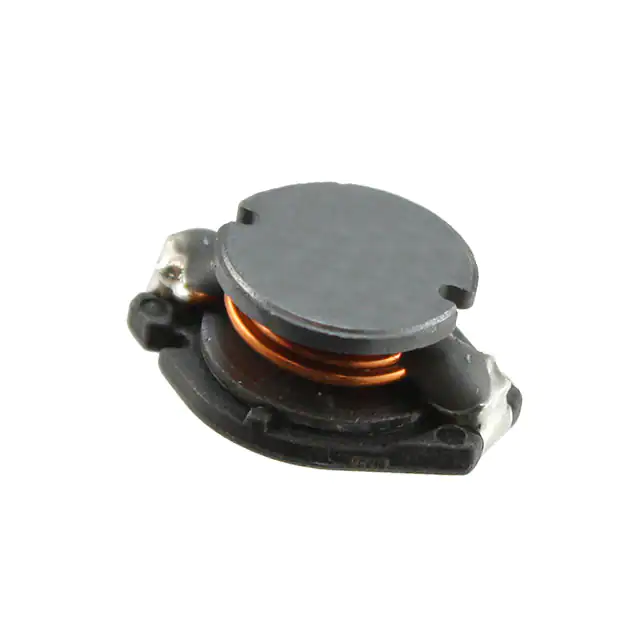

SDR1005-102KLFIXED IND 1MH 300MA 3.9 OHM SMD |
26,695 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR1005 | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 300 mA | 350mA | Unshielded | 3.9Ohm Max | 78 @ 122kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
SDR1005-103KLFIXED IND 10MH 100MA 39 OHM SMD |
27,437 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR1005 | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 100 mA | 110mA | Unshielded | 39Ohm Max | 102 @ 138kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
SDR1005-222KLFIXED IND 2.2MH 200MA 8.2OHM SMD |
11,893 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR1005 | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 200 mA | 240mA | Unshielded | 8.2Ohm Max | 85 @ 128kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|

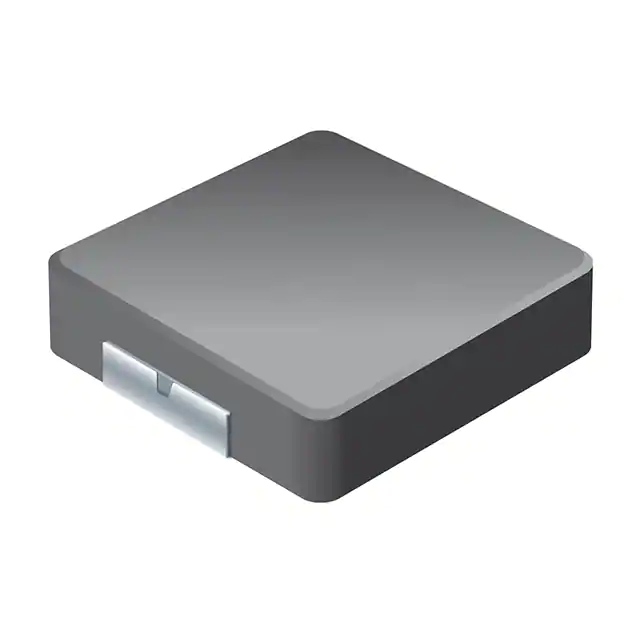

SRP3020TA-1R0MFIXED IND 1UH 4A 38 MOHM SMD |
5,754 | - |
|
Техническая |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | SRP3020TA | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 4 A | 5A | Shielded | 38mOhm Max | 10 @ 100kHz | 82MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD |
|

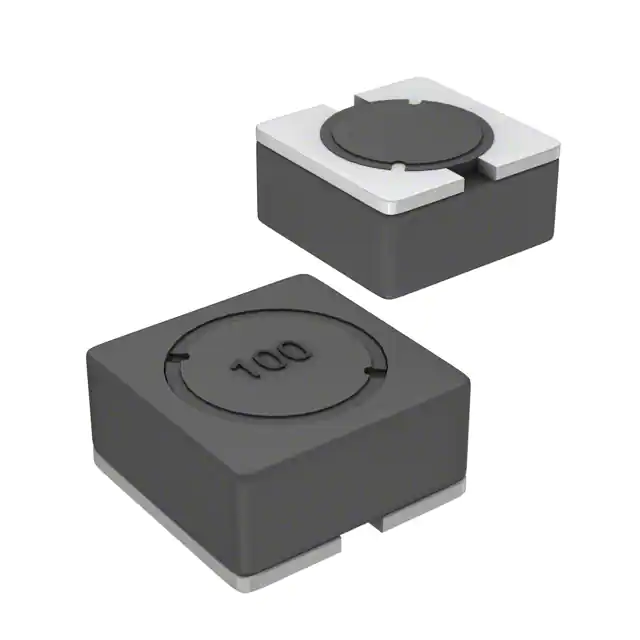

SRR5028-330YFIXED IND 33UH 900MA 190MOHM SMD |
54,528 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR5028 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 900 mA | 780mA | Shielded | 190mOhm Max | 11 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR5028-150YFIXED IND 15UH 1.37A 100MOHM SMD |
9,165 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR5028 | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.37 A | 1.15A | Shielded | 100mOhm Max | 9 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR5028-100YFIXED IND 10UH 1.5A 70 MOHM SMD |
5,826 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR5028 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.5 A | 1.4A | Shielded | 70mOhm Max | 9 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR5028-220YFIXED IND 22UH 1.15A 120MOHM SMD |
2,124 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR5028 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.15 A | 1A | Shielded | 120mOhm Max | 7 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

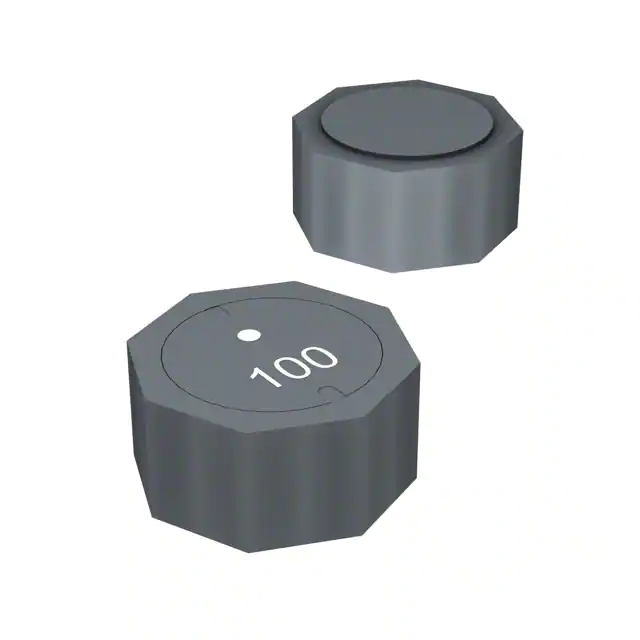

SRU1048-6R8YFIXED IND 6.8UH 4.8A 13.6MOHM SM |
14,852 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU1048 | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | 4.1A | Shielded | 13.6mOhm | 10 @ 7.96MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

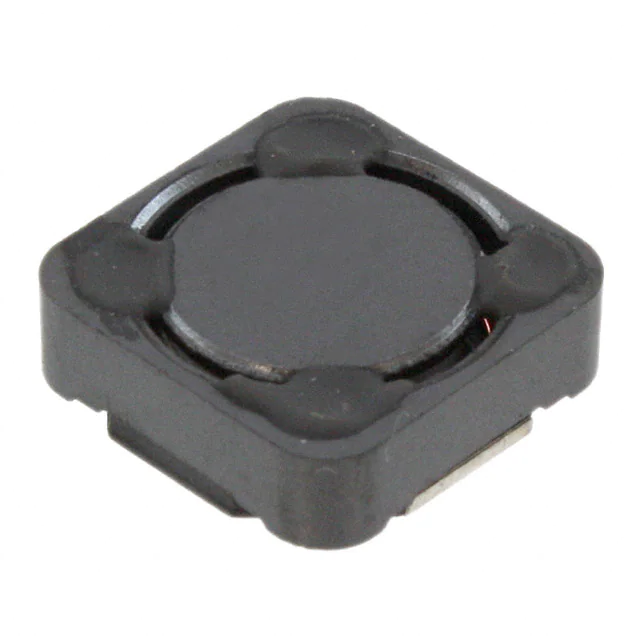

PM124SH-100M-RCFIXED IND 10UH 4A 32 MOHM SMD |
10,427 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PM124SH | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 32mOhm Max | 17 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
