| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

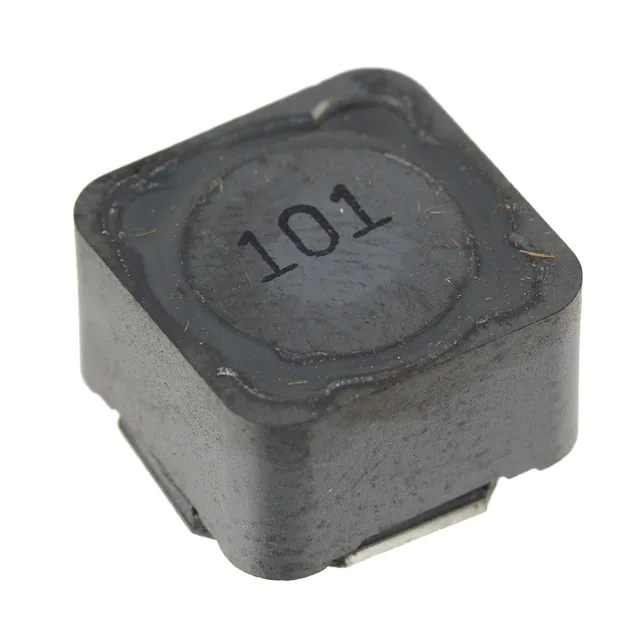

SRR1280-101MFIXED IND 100UH 2.1A 150MOHM SMD |
14,505 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.1 A | 2A | Shielded | 150mOhm Max | 18 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR1280-330MFIXED IND 33UH 3.5A 57 MOHM SMD |
11,918 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | 3.3A | Shielded | 57mOhm Max | 28 @ 2.52MHz | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR1280-220MFIXED IND 22UH 4.3A 38.6MOHM SMD |
6,318 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

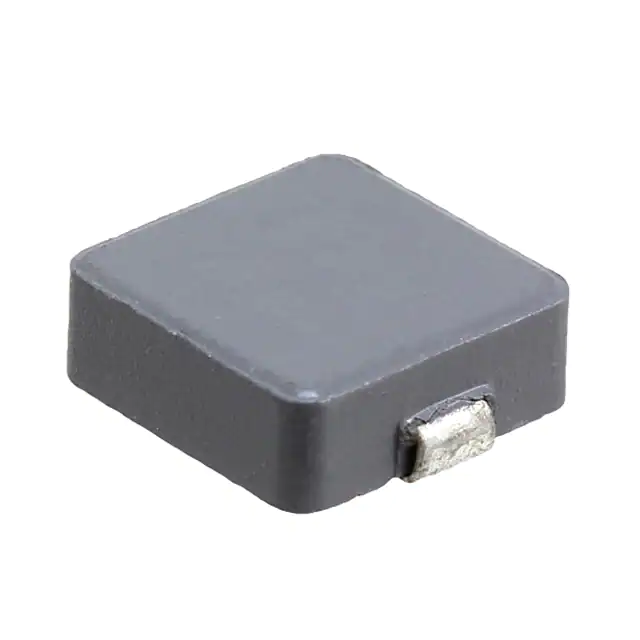

SRP1038A-100MFIXED IND 10UH 7.5A 30 MOHM SMD |
78,738 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038A | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038A-470MFIXED IND 47UH 3A 167 MOHM SMD |
41,971 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038A | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038A-220MFIXED IND 22UH 5A 74 MOHM SMD |
36,231 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038A | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038A-330MFIXED IND 33UH 3.5A 112 MOHM SMD |
30,410 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038A | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038A-150MFIXED IND 15UH 6.25A 45 MOHM SMD |
3,367 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038A | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRR1210-151MFIXED IND 150UH 2.2A 190MOHM SMD |
69,886 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210 | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 2.2 A | 1.8A | Shielded | 190mOhm Max | 12 @ 796kHz | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR1210-820MFIXED IND 82UH 2.8A 112 MOHM SMD |
15,121 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210 | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.8 A | 2.5A | Shielded | 112mOhm Max | 15 @ 2.52MHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR1210-470MFIXED IND 47UH 3.8A 72 MOHM SMD |
7,997 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210 | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3.8 A | 3.1A | Shielded | 72mOhm Max | 16 @ 2.52MHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|

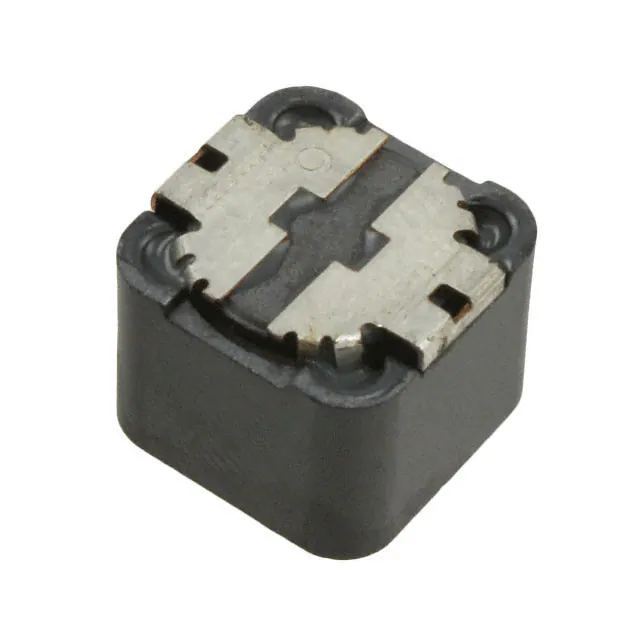

SRR1210-330MFIXED IND 33UH 4.4A 52 MOHM SMD |
4,517 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 4.4 A | 3.7A | Shielded | 52mOhm Max | 16 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRR1210-101MFIXED IND 100UH 2.5A 135MOHM SMD |
3,753 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.5 A | 2.2A | Shielded | 135mOhm Max | 16 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRP5050FA-5R6MFIXED IND 5.6UH 7.2A 24.2MOHM SM |
10,900 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP5050FA | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 7.2 A | 8.6A | Shielded | 24.2mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|

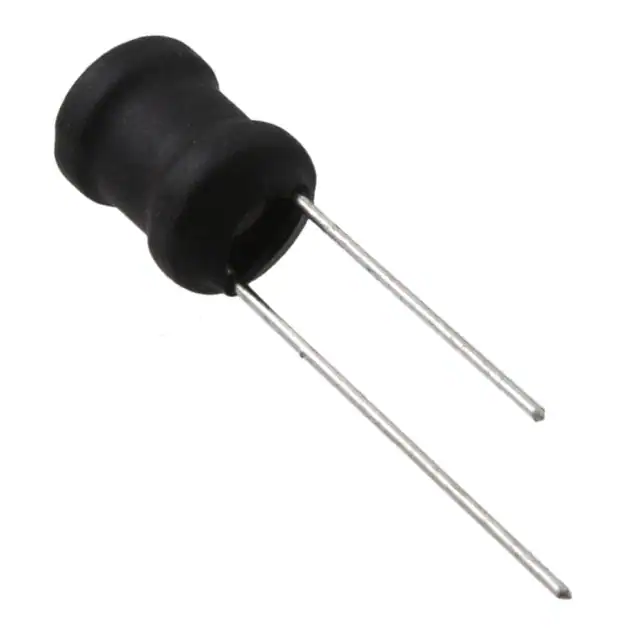

RLB9012-222KLFIXED IND 2.2MH 360MA 5.9 OHM TH |
40,625 | - |
|
Техническая |
Radial, Vertical Cylinder | Tray | RLB9012 | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 360 mA | - | Unshielded | 5.9Ohm Max | 15 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|

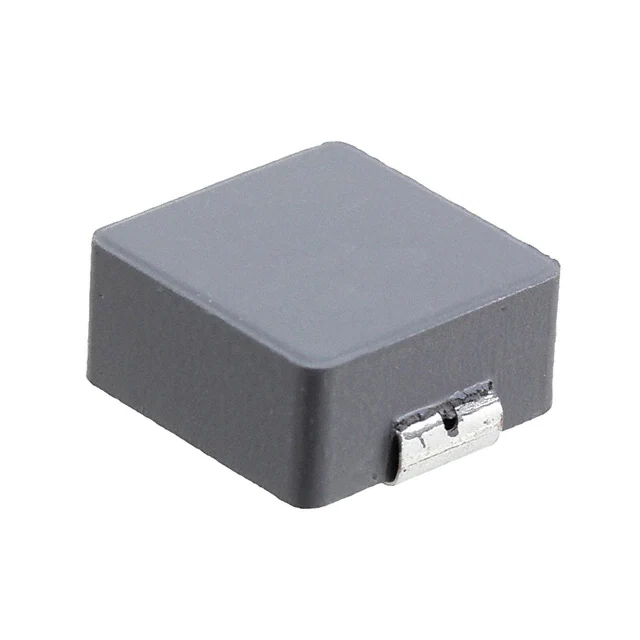

SRP1265A-100MFIXED IND 10UH 10A 16.5 MOHM SMD |
33,710 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1265A | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1265A-3R3MFIXED IND 3.3UH 18A 6.8 MOHM SMD |
22,611 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1265A | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 18 A | 30A | Shielded | 6.8mOhm Max | 20 @ 100kHz | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1265A-4R7MFIXED IND 4.7UH 13.5A 8.4MOHM SM |
12,873 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1265A | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 13.5 A | 28A | Shielded | 8.4mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|

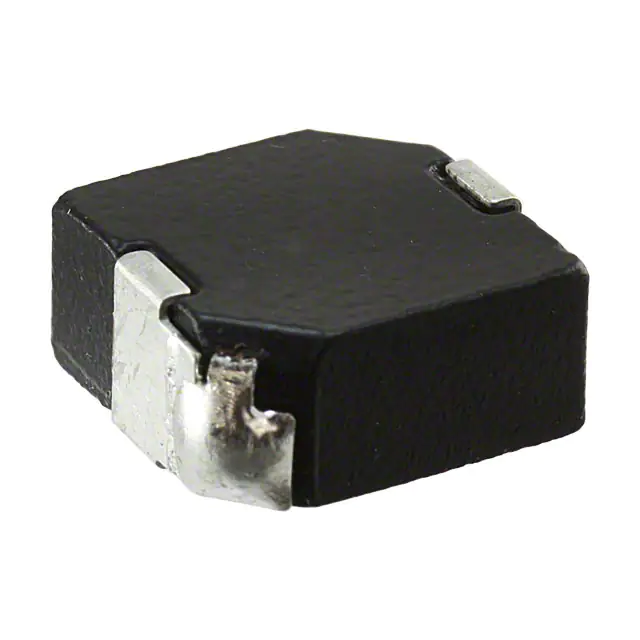

SRP1270-100MFIXED IND 10UH 10A 16.8 MOHM SMD |
13,259 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1270 | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 10 A | 16A | Shielded | 16.8mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRP1250-100MFIXED IND 10UH 9A 25.5 MOHM SMD |
10,957 | - |
|
Техническая |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1250 | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
