Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

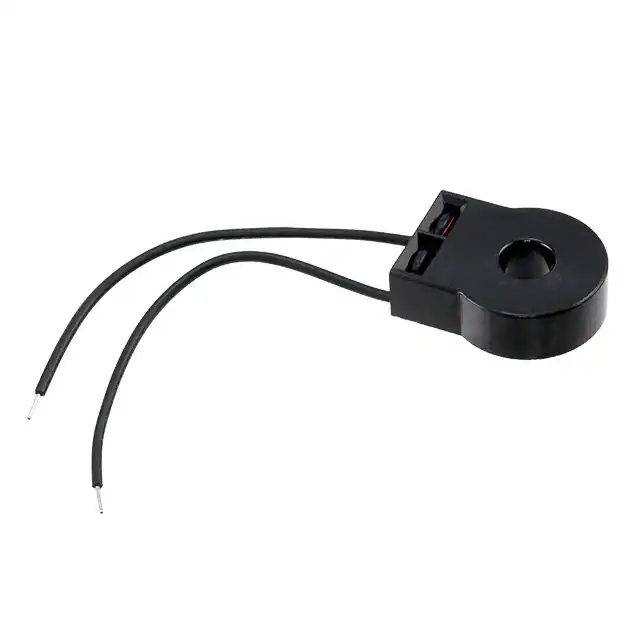

CT-06-100 CURR SENSE XFMR T/H KEMET	147	-	запрос цен	Техническая	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	1000:1	1000:1	-	-	Through Hole	0.882 L x 0.709 W (22.40mm x 18.00mm)	0.280 (7.10mm)
CT-1100 CURR SENSE XFMR 100A T/H Amgis, LLC	207	-	запрос цен	Техническая	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	1000:1	21.3Ohm	-	Through Hole	1.752 L x 0.563 W (44.50mm x 14.30mm)	1.752 (44.50mm)

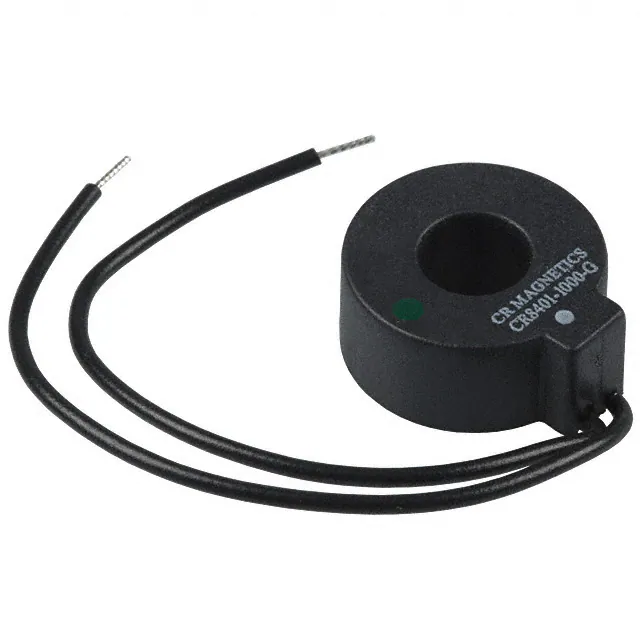

CR8401-1000-G CURR SENSE XFMR 4A IN-LINE CR Magnetics Inc.	3,075	-	запрос цен	Техническая	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	4 A	-	-	-	1000:1	49Ohm	-	Free Hanging (In-Line)	0.880 L x 0.690 W (22.35mm x 17.53mm)	0.325 (8.26mm)

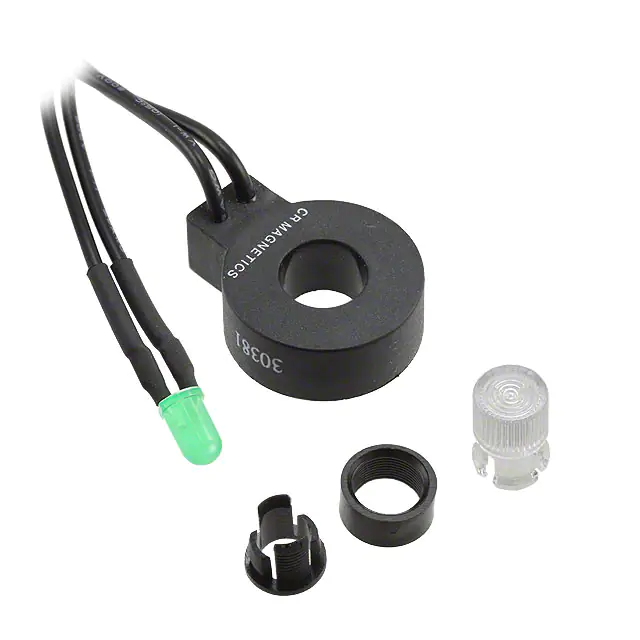

CR2550-G CURR SENSE XFMR IN-LINE CR Magnetics Inc.	232	-	запрос цен	Техническая	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-

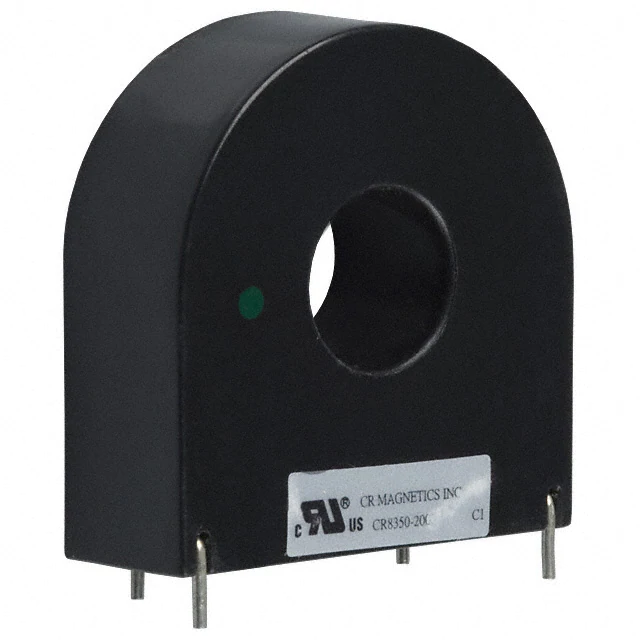

CR8350-2000 CURR SENSE XFMR 200A T/H CR Magnetics Inc.	170	-	запрос цен	Техническая	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	73Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)
ART-B22-D70 CURR SENSE XFMR FLEXIBLE COIL LEM USA Inc.	3,453	-	запрос цен	Техническая	Bulk	ART	Active	50/60Hz	Non-Invasive (Split Core)	-	180 µH	-	Rogowski Coil	-	55Ohm	-	Free Hanging (In-Line)	2.205 L x 1.326 W (56.01mm x 33.69mm)	0.744 (18.91mm)
PH9505.100NLT XFRMR CURRENT SENSE 1:100 SMD Pulse Electronics Power	3,505	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	7 mH	-	1:100	-	0.5mOhm Primary, 3.1Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
PH9505.180NLT XFRMR CURRENT SENSE 1:180 SMD Pulse Electronics Power	2,297	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	25 mH	-	1:180	-	0.5mOhm Primary, 9Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
54200C CURR SENSE XFMR 1:1:200 15A SMD Murata Power Solutions Inc.	2,362	-	запрос цен	Техническая	Tape & Reel (TR)	5400	Active	50kHz ~ 500kHz	Invasive	-	60 mH	-	1:1:200	-	7mOhm Primary, 6.6Ohm Secondary	-	Surface Mount	0.354 L x 0.425 W (9.00mm x 10.80mm)	0.323 (8.20mm)
PB0027NLT CURR SENSE XFMR 200:1 35A SMD Pulse Electronics Power	2,971	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	22.4 mH	-	200:1	-	0.42mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PA1005.030QNL CURR SENSE XFMR 1:30 20A SMD Pulse Electronics Power	3,963	-	запрос цен	Техническая	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801A1135A125 EE4.2 SMD TRANSFORMER_P301769 EPCOS - TDK Electronics	2,903	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	1.28 mH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

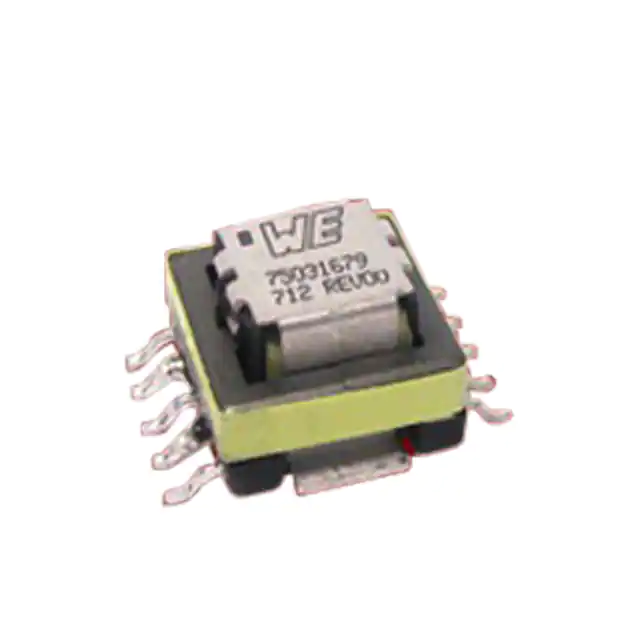

750316796 CURRENT SENSE TRANSFORMER Würth Elektronik	2,625	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	50kHz ~ 500kHz	Invasive	40 A	22.4 mH	-	1:200	-	280mOhm	-	Surface Mount	0.570 L x 0.795 W (14.48mm x 20.20mm)	0.413 (10.50mm)
B82801C0145A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	329	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	1.4 mH	-	1:50	-	0.28mOhm Primary, 400mOhm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)
PE-68210NL CURR SENSE XFMR 1:1:50 SMD Pulse Electronics Power	2,415	-	запрос цен	Техническая	Tube	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PB0027NL CURR SENSE XFMR 200:1 35A SMD Pulse Electronics Power	2,202	-	запрос цен	Техническая	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	22.4 mH	-	200:1	-	0.42mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PB0026NL CURR SENSE XFMR 100:1 35A SMD Pulse Electronics Power	844	-	запрос цен	Техническая	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	5.6 mH	-	100:1	-	0.42mOhm Primary, 1.4Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
CSE185L CURR SENSE XFMR 1:50 3A T/H Triad Magnetics	2,095	-	запрос цен	Техническая	Bulk	-	Active	50Hz ~ 400Hz	Invasive	3 A	-	-	1:50	-	19.5mOhm Primary, 23Ohm Secondary	-	Through Hole	0.846 L x 0.945 W (21.50mm x 24.00mm)	0.709 (18.00mm)
CSE184L CURR SENSE XFMR 1A T/H Triad Magnetics	464	-	запрос цен	Техническая	Bulk	-	Active	50Hz ~ 400Hz	Invasive	1 A	-	-	-	-	125mOhm Primary, 23Ohm Secondary	-	Through Hole	0.846 L x 0.945 W (21.50mm x 24.00mm)	0.709 (18.00mm)
PA3655NL CURR SENSE XFMR 34A T/H Pulse Electronics Power	453	-	запрос цен	Техническая	Tray	-	Active	50kHz ~ 500kHz	Invasive	34 A	76 mH	-	-	200:200:1	15.8Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810 L x 0.580 W (20.57mm x 14.73mm)	0.750 (19.05mm)

Общий 1107 Записывать«Предыдущая 1 2 3 456 7 8...56 Следующий»
