Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CT-1015 CURR SENSE XFMR 15A T/H Amgis, LLC	342	-	запрос цен	Техническая	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

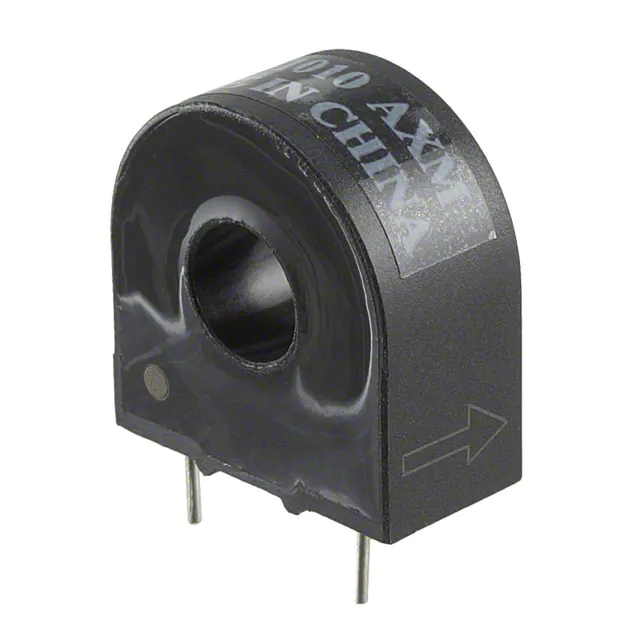

CST-1010 CURR SENSE XFMR 10A T/H Triad Magnetics	475	-	запрос цен	Техническая	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CT-1025 CURR SENSE XFMR 25A T/H Amgis, LLC	192	-	запрос цен	Техническая	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	25 A	-	-	-	1000:1	48Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)

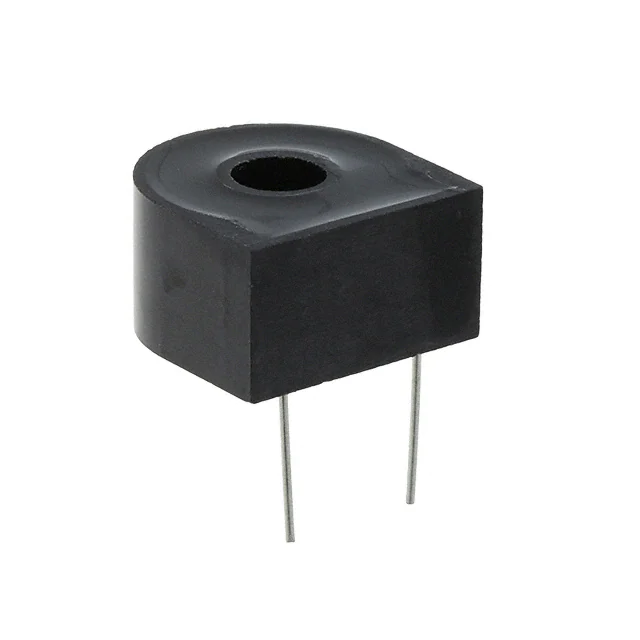

CT-05 CURR SENSE XFMR T/H KEMET	2,213	-	запрос цен	Техническая	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	500:1	500:1	-	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.394 (10.00mm)

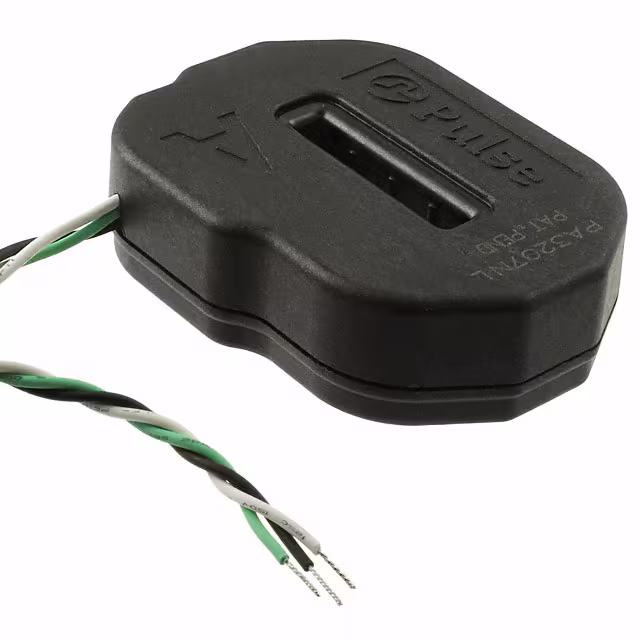

PA3207NL CURR SENSE XFMR ROGOWSKI 200A Pulse Electronics Power	314	-	запрос цен	Техническая	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	1.86 mH	-	Rogowski Coil	-	66Ohm Max	-	Chassis Mount	1.437 L x 1.913 W (36.50mm x 48.60mm)	0.559 (14.20mm)
CT-1050 CURR SENSE XFMR 50A T/H Amgis, LLC	434	-	запрос цен	Техническая	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	49.3Ohm	-	Through Hole	1.374 L x 0.563 W (34.90mm x 14.30mm)	1.374 (34.90mm)

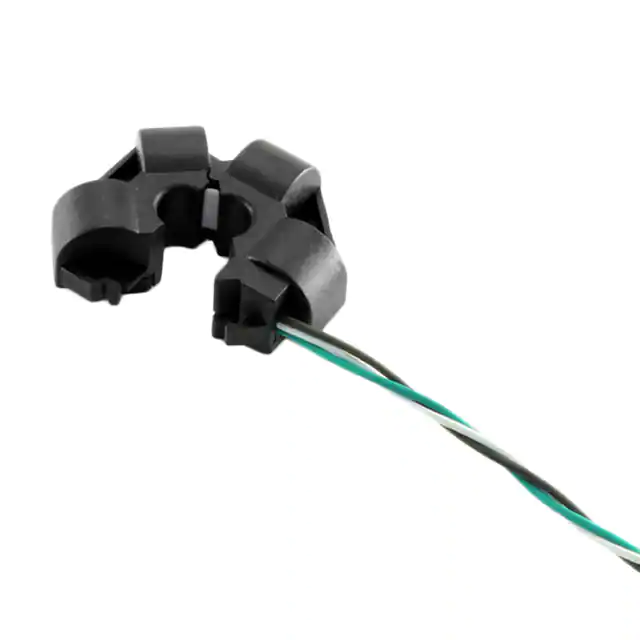

PA3828NL CURR SENSE XFMR 100A Pulse Electronics Power	967	-	запрос цен	Техническая	Tray	-	Active	-	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	-	1.280 L x 1.280 W (32.50mm x 32.50mm)	0.532 (13.50mm)
CCT272440-80-10-02 CURR SENSE XFMR 80A CHAS MNT TDK Corporation	141	-	запрос цен	Техническая	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	80 A	-	-	-	3000:1	352Ohm	-	Chassis Mount	1.201 L x 1.083 W (30.50mm x 27.50mm)	1.634 (41.50mm)
ART-B22-D125 CURR SENSE XFMR FLEXIBLE COIL LEM USA Inc.	3,282	-	запрос цен	Техническая	Bulk	ART	Active	50/60Hz	Non-Invasive (Split Core)	-	258 µH	-	Rogowski Coil	-	81Ohm	-	Free Hanging (In-Line)	2.205 L x 1.326 W (56.01mm x 33.69mm)	0.744 (18.91mm)
B82801A1333A020 CURR SENSE XFMR 1:20 SMD EPCOS - TDK Electronics	2,106	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	33 µH	-	1:20	-	2.5mOhm Primary, 320mOhm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)

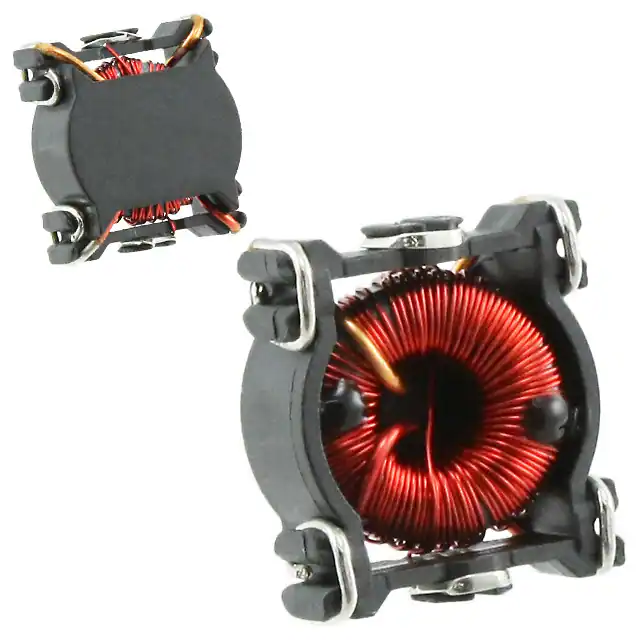

PE-68280NL CURR SENSE XFMR 1:1:100 SMD Pulse Electronics Power	730	-	запрос цен	Техническая	Tube	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	14.8 mH	-	1:1:100	-	1.15mOhm Primary, 930mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
T60404E4658X043 CURRENT TRANSFORMER, 6A 1500:1 VACUUMSCHMELZE	2,097	-	запрос цен	Техническая	Box	-	Active	50Hz	Non-Invasive (Solid Core)	6 A	35 H	-	1:1500	1500:1	45.5Ohm	-	Through Hole	0.661 L x 0.354 W (16.80mm x 9.00mm)

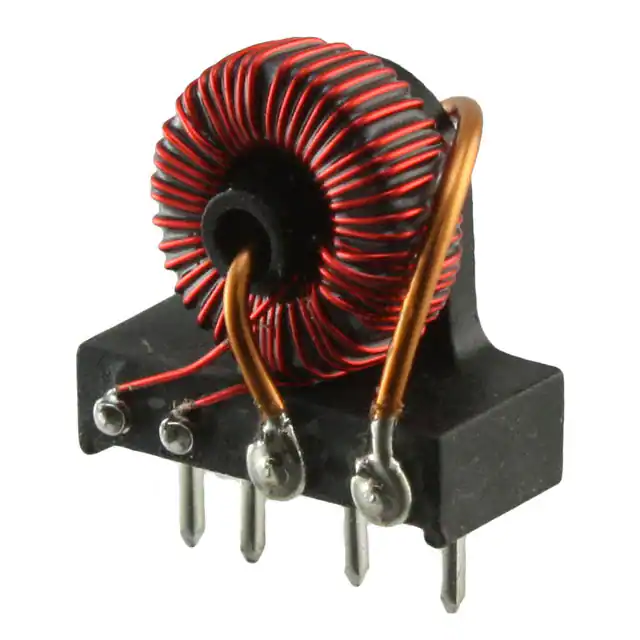

PE-64978NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	602	-	запрос цен	Техническая	Tube	THT	Active	200kHz ~ 500kHz	Invasive	20 A	4 mH	-	-	50:1	6mOhm Primary, 240mOhm Secondary	-	Through Hole	0.550 L x 0.380 W (13.97mm x 9.65mm)	0.580 (14.73mm)

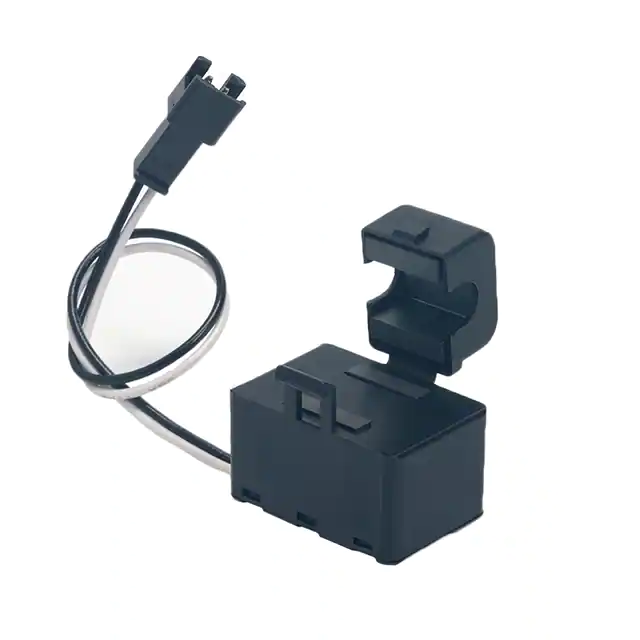

C/CT-0306 CURRENT SENSORS, SNAP-ON TYPE KEMET	140	-	запрос цен	Техническая	Bulk	C/CT	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	30 A	-	-	-	-	-	-	Chassis Mount	1.134 L x 0.764 W (28.80mm x 19.40mm)	1.114 (28.30mm)

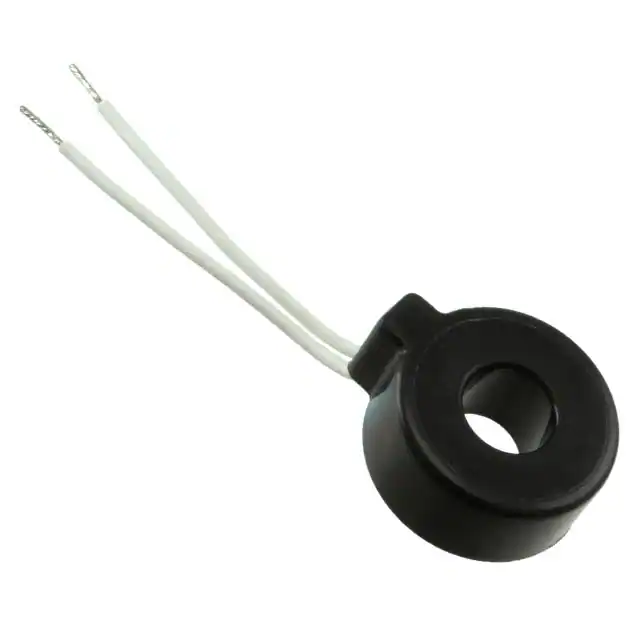

MR-4 CURR SENSE XFMR CHAS MNT KEMET	270	-	запрос цен	Техническая	Bulk	MR	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Chassis Mount	1.358 L x 1.260 W (34.50mm x 32.00mm)	0.425 (10.80mm)
PA0368.125NLT CURR SENSE XFMR 1:125 SMD Pulse Electronics Power	3,891	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PA0368NL	Active	50kHz ~ 1MHz	Invasive	-	10.4 mH	-	1:125	-	4mOhm Primary, 1.9Ohm Secondary	-	Surface Mount	0.325 L x 0.325 W (8.25mm x 8.25mm)	0.134 (3.40mm)
PA1005.040QNLT XFMR CURR SENSE 1:40 AECQ SMD Pulse Electronics Power	3,137	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PA1005QNL	Active	50kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary Max	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
ACST-260-1 CURR SENSE XFMR 30A TH Zettler Magnetics	313	-	запрос цен	Техническая	Box	ACST-200	Active	50Hz	Invasive	30 A	730 mH	-	1:500	500:1	0.6mOhm	-	Through Hole	0.807 L x 0.690 W (20.50mm x 17.53mm)	0.650 (16.51mm)
PE-68383NLT CURR SENSE XFMR 1:1:200 SMD Pulse Electronics Power	545	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	59.2 mH	-	1:1:200	-	1.15mOhm Primary, 3.9Ohm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PA0368.050NL CURR SENSE XFMR 1:50 4A SMD Pulse Electronics Power	2,012	-	запрос цен	Техническая	Tube	-	Active	50kHz ~ 1MHz	Invasive	4 A	1.7 mH	-	1:50	-	4mOhm Primary, 900mOhm Secondary	-	Surface Mount	0.285 L x 0.352 W (7.25mm x 8.25mm)	0.124 (3.15mm)

Общий 1107 Записывать«Предыдущая 1 2 3 4 5 678 9 10...56 Следующий»
