Производитель Часть #	Доступность	Цена	Количество	Техническая	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
FIS155NL CURR SENSE XFMR 1:500 25A T/H Pulse Electronics Power	674	-	запрос цен	Техническая	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	470 mH	1750VµS	1:500	-	16Ohm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)

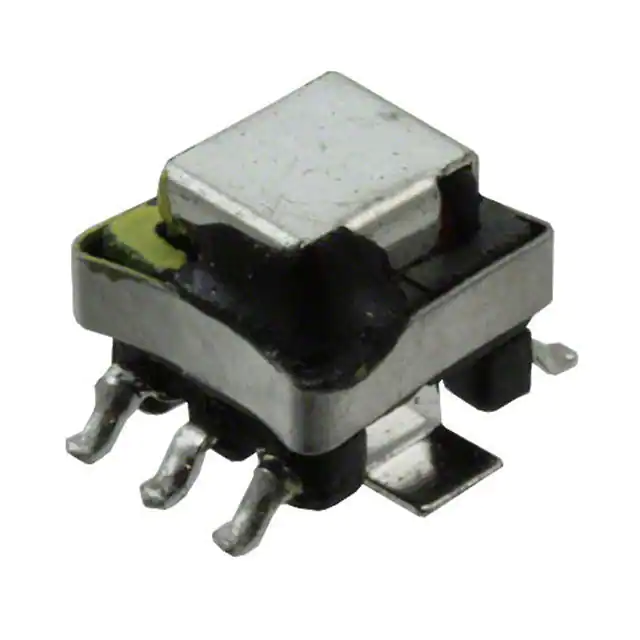

749251100 CURR SENSE XFMR 1:100 10A SMD Würth Elektronik	3,765	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	-	Invasive	-	2 mH	50VµS	1:100	-	6mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.303 L x 0.272 W (7.70mm x 6.90mm)	0.210 (5.33mm)
P0581NL CURR SENSE XFMR 200:1:1 34A T/H Pulse Electronics Power	610	-	запрос цен	Техническая	Tray	THT	Active	50kHz ~ 500kHz	Invasive	34 A	76 mH	-	200:1:1	-	2.8Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810 L x 0.580 W (20.57mm x 14.73mm)	0.750 (19.05mm)

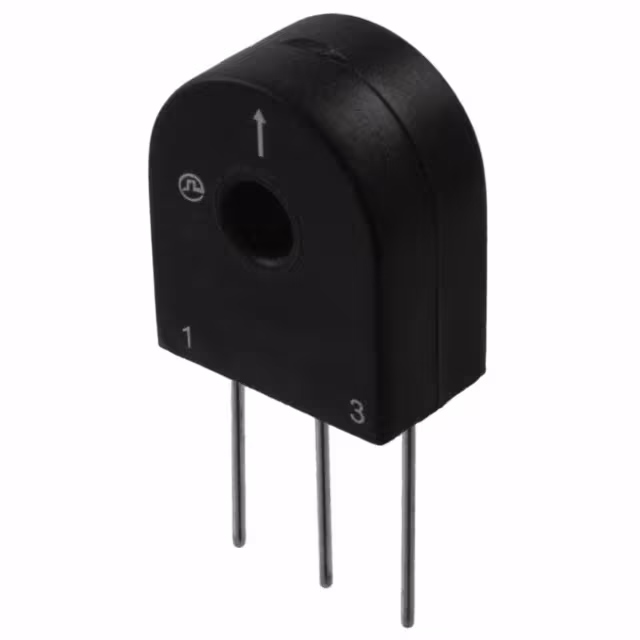

PE-51719NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	907	-	запрос цен	Техническая	Tray	-	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	80 mH	-	-	200CT:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
B78417A2285A003 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	2,218	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	1.7 mH	-	1:50	-	1.9mOhm Primary, 2.1Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
B78417A2287A003 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	320	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	11 mH	-	1:125	-	1.9mOhm Primary, 5.3Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
B78419A2251A003 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,795	-	запрос цен	Техническая	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	7 mH	-	1:100	-	0.5mOhm Primary, 3.1Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)

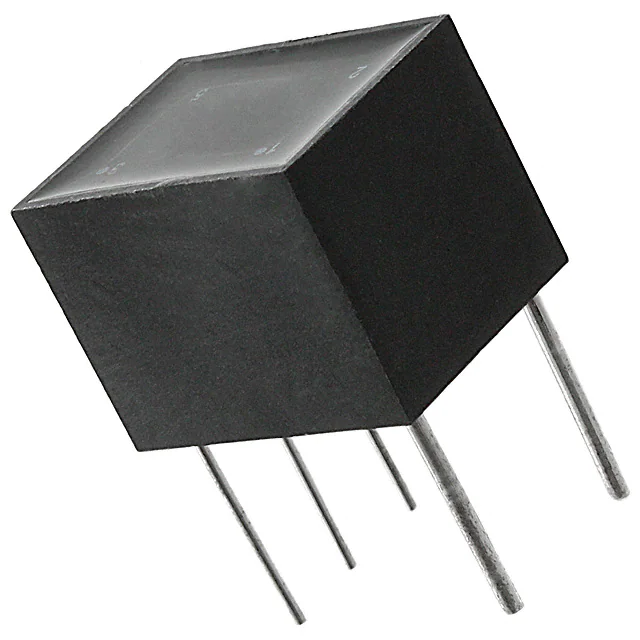

PE-63619NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	584	-	запрос цен	Техническая	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200CT:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
CST306-1T CURR SENSE XFMR 35A T/H Triad Magnetics	643	-	запрос цен	Техническая	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50CT:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)

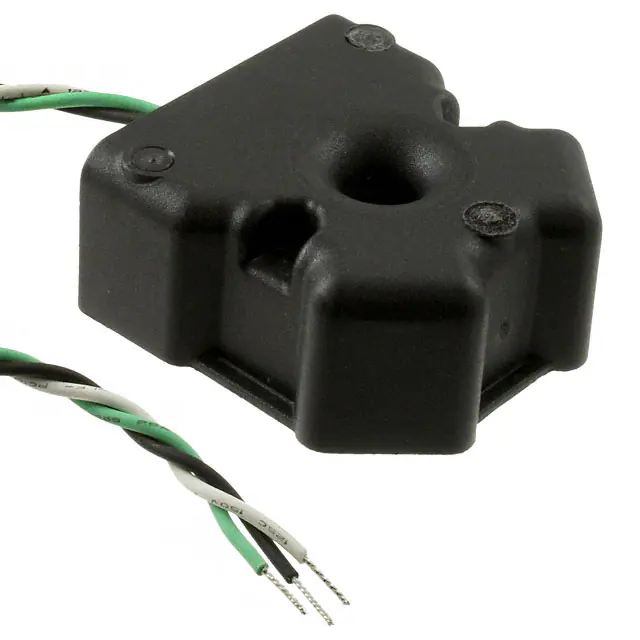

PA3208NL CURR SENSE XFMR ROGOWSKI 100A Pulse Electronics Power	753	-	запрос цен	Техническая	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	100 A	1.14 mH	-	Rogowski Coil	-	54Ohm Max	-	Chassis Mount	1.205 L x 1.189 W (30.60mm x 30.20mm)	0.580 (14.73mm)

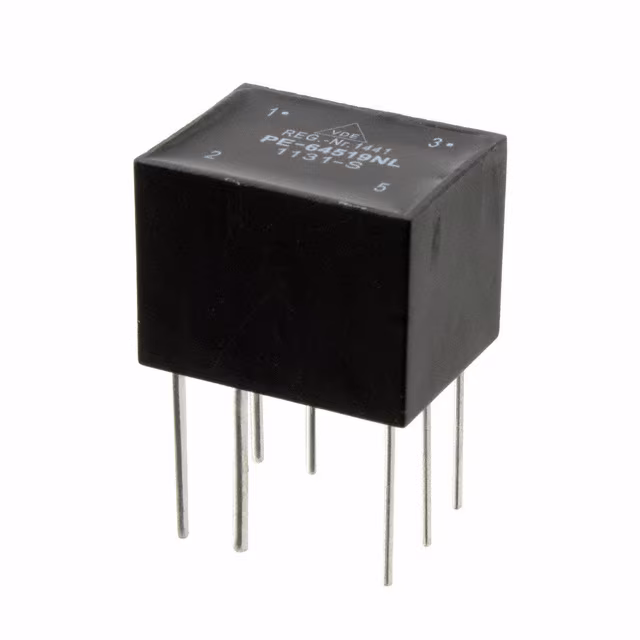

PE-64519NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,319	-	запрос цен	Техническая	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200CT:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-67300NL CURR SENSE XFMR 37A T/H Pulse Electronics Power	364	-	запрос цен	Техническая	Tray	-	Active	10kHz ~ 200kHz	Invasive	37 A	180 mH	-	-	300:1	510Ohm Primary, 11Ohm Secondary	-	Through Hole	0.565 L x 0.750 W (14.35mm x 19.05mm)	0.750 (19.05mm)

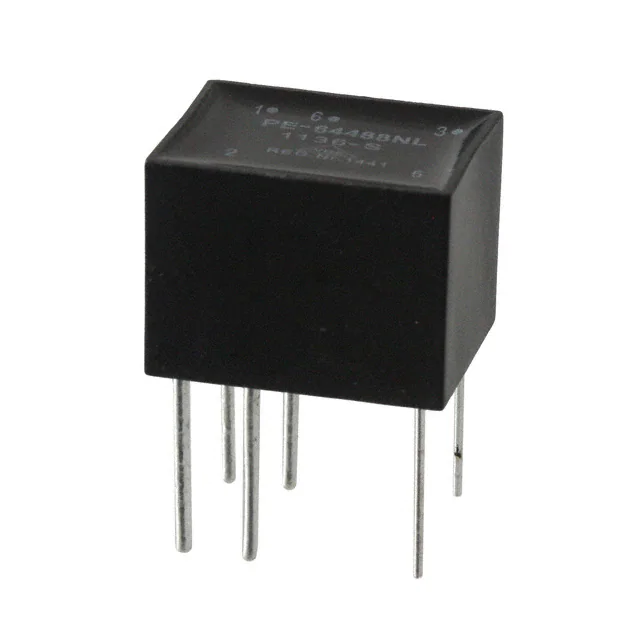

PE-64488NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	342	-	запрос цен	Техническая	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-64487NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	206	-	запрос цен	Техническая	Tube	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)

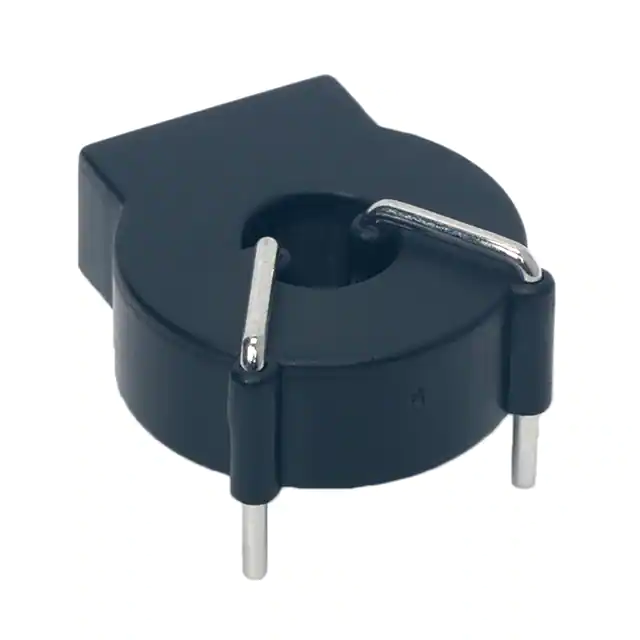

MR/C-01B ZERO-PHASE CURRENT TRANSFORMERS KEMET	649	-	запрос цен	Техническая	Bulk	MR	Active	60Hz	Non-Invasive (Solid Core)	-	-	-	-	-	30Ohm	-	Through Hole	0.748 L x 0.689 W (19.00mm x 17.50mm)	0.311 (7.90mm)
101990059 CURR SENSE XFMR 10A CHAS MNT Seeed Technology Co., Ltd	366	-	запрос цен	Техническая	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	10 A	-	-	-	-	-	-	Chassis Mount	-	-
101990064 CURR SENSE XFMR 60A CHAS MNT Seeed Technology Co., Ltd	2,237	-	запрос цен	Техническая	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	60 A	-	-	-	-	-	-	Chassis Mount	-	-
101990061 CURR SENSE XFMR 1800:1 20A CHAS Seeed Technology Co., Ltd	133	-	запрос цен	Техническая	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	20 A	-	-	1800:1	-	-	-	Chassis Mount	-	-
101990065 CURR SENSE XFMR 70A CHAS MNT Seeed Technology Co., Ltd	118	-	запрос цен	Техническая	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	70 A	-	-	-	-	-	-	Chassis Mount	-	-
101990058 CURR SENSE XFMR 5A CHAS MNT Seeed Technology Co., Ltd	120	-	запрос цен	Техническая	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	5 A	-	-	-	-	-	-	Chassis Mount	-	-

Общий 1107 Записывать«Предыдущая 1 2 3 4 567 8 9...56 Следующий»
