+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2V821EACAP ALUM 820UF 20% 350V SNAP |
148 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 820 µF | ±20% | 350 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | - | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
EET-HC2W391DFCAP ALUM 390UF 20% 450V SNAP |
883 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 450 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
EEU-HD1V682CAP ALUM 6800UF 20% 35V RADIAL |
2,578 | - |
|
Техническая |
Bulk | HD | Active | 6800 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.358 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
EEE-FT0J221ARCAP ALUM 220UF 20% 6.3V SMD |
824 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 220 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEU-FC1V221LBCAP ALUM 220UF 20% 35V RADIAL |
966 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 474.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEE-HAV221UAPCAP ALUM 220UF 20% 35V SMD |
727 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 170 mA @ 120 Hz | 289 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-EB1J221BCAP ALUM 220UF 20% 63V RADIAL |
500 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | EB-A | Active | 220 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 292 mA @ 120 Hz | 379.6 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEA-GA1A470CAP ALUM 47UF 20% 10V RADIAL |
504 | - |
|
Техническая |
Bulk | GA-A | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 100.8 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEU-FR0J221CAP ALUM 220UF 20% 6.3V RAD TH |
375 | - |
|
Техническая |
Bulk | FR-A | Active | 220 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
EEU-FC2A120CAP ALUM 12UF 20% 100V RADIAL |
681 | - |
|
Техническая |
Bulk | FC | Active | 12 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 74.1 mA @ 120 Hz | 114 mA @ 100 kHz | 1.8 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
EEU-FC1J331BCAP ALUM 330UF 20% 63V RADIAL |
993 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 835.3 mA @ 120 Hz | 1.285 A @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-HD1V101CAP ALUM 100UF 20% 35V RADIAL |
799 | - |
|
Техническая |
Bulk | HD | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 225 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
EEU-FR1E681CAP ALUM 680UF 20% 25V RADIAL |
2,777 | - |
|
Техническая |
Bulk | FR-A | Active | 680 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.343 A @ 120 Hz | 1.79 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEU-FR1C152CAP ALUM 1500UF 20% 16V RADIAL |
483 | - |
|
Техническая |
Bulk | FR-A | Active | 1500 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-TA1C221CAP ALUM 220UF 20% 16V RADIAL |
281 | - |
|
Техническая |
Bulk | TA | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 500 mA @ 100 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-TA1H330CAP ALUM 33UF 20% 50V RADIAL |
113 | - |
|
Техническая |
Bulk | TA | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 300 mA @ 100 kHz | 450 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ECA-2VM220CAP ALUM 22UF 20% 350V RADIAL |
491 | - |
|
Техническая |
Bulk | M-A | Active | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 331.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

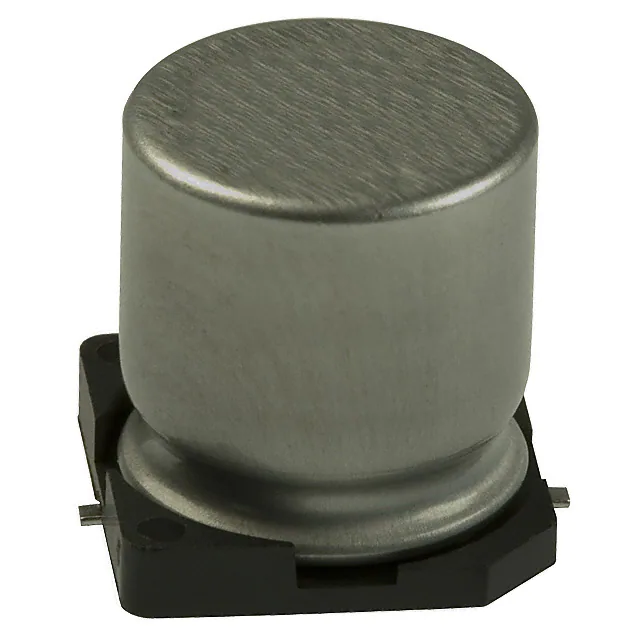

EEE-FK2A470AQCAP ALUM 47UF 20% 100V SMD |
619 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 47 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 375 mA @ 120 Hz | 500 mA @ 100 kHz | 320 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEV-FK2A680VCAP ALUM 68UF 20% 100V SMD |
239 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 375 mA @ 120 Hz | 500 mA @ 100 kHz | 320 mOhms | - | 0.492 Dia (12.50mm) | 0.543 (13.80mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEU-FP1V511CAP ALUM 510UF 20% 35V RADIAL |
561 | - |
|
Техническая |
Bulk | FP | Active | 510 µF | ±20% | 35 V | 68mOhm @ 100kHz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
