+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FR1V391LBCAP ALUM 390UF 20% 35V RADIAL |
1,577 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 390 µF | ±20% | 35 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

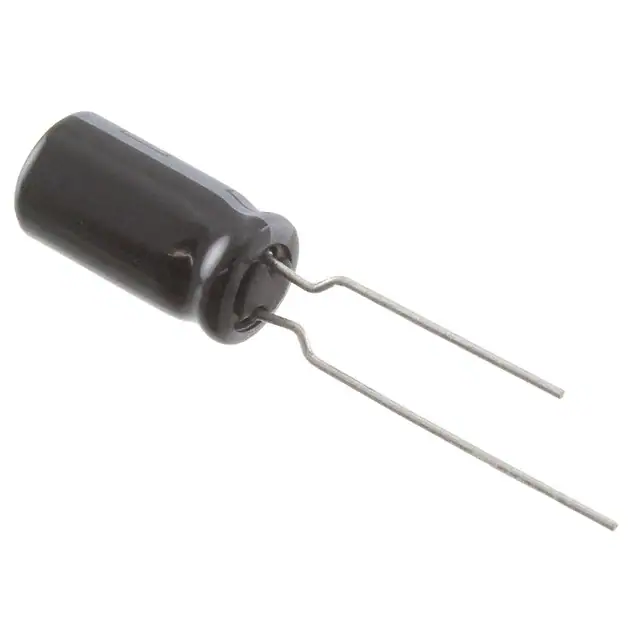

EEU-FS1K820BCAP ALUM 82UF 20% 80V RADIAL |
1,925 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 82 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EEU-FR1E561LBCAP ALUM 560UF 20% 25V RADIAL |
1,431 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 560 µF | ±20% | 25 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FR0J152LBCAP ALUM 1500UF 20% 6.3V RADIAL |
1,304 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1500 µF | ±20% | 6.3 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.248 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS1K560BCAP ALUM 56UF 20% 80V RADIAL |
1,042 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 56 µF | ±20% | 80 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 343 mA @ 120 Hz | 490 mA @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-FR1A102LBCAP ALUM 1000UF 20% 10V RADIAL |
1,995 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1000 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
ECA-1EHG471BCAP ALUM 470UF 20% 25V RADIAL |
1,831 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 570 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
Series.jpg)
|

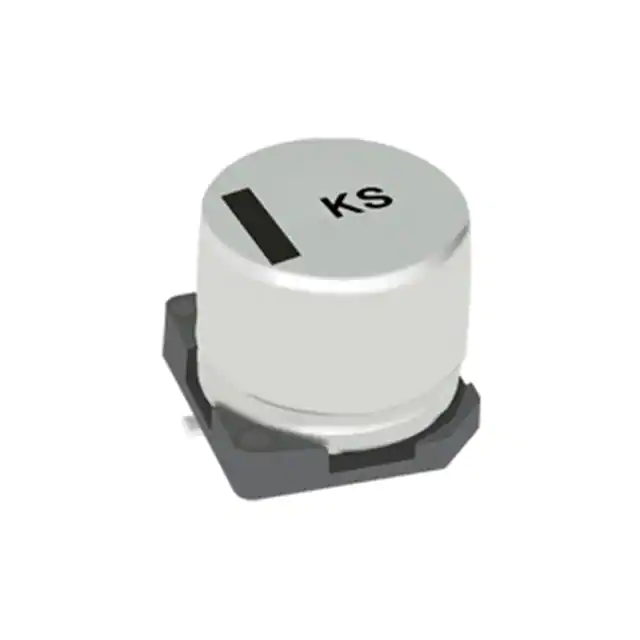

EEE-FKV121XSLCAP ALUM 120UF 20% 35V SMD |
1,734 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS, Halogen Free | Active | 120 µF | ±20% | 35 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FC1A102BCAP ALUM 1000UF 20% 10V RADIAL |
1,186 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 1000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEU-HD1A331BCAP ALUM 330UF 20% 10V RADIAL |
1,504 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 330 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
EEE-HA0J331PCAP ALUM 330UF 20% 6.3V SMD |
1,432 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS1K101BCAP ALUM 100UF 20% 80V RADIAL |
1,128 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 100 µF | ±20% | 80 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEU-FS1A122LBCAP ALUM 1200UF 20% 10V RADIAL |
4,986 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 1200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 992 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEU-FS0J202BCAP ALUM 2000UF 20% 6.3V RADIAL |
1,487 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.432 A @ 120 Hz | 1.79 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEE-FN1V680UVCAP ALUM 68UF 20% 35V SMD |
1,990 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FN, Anti-Vibration | Active | 68 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FS1A202BCAP ALUM 2000UF 20% 10V RADIAL |
1,107 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2000 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

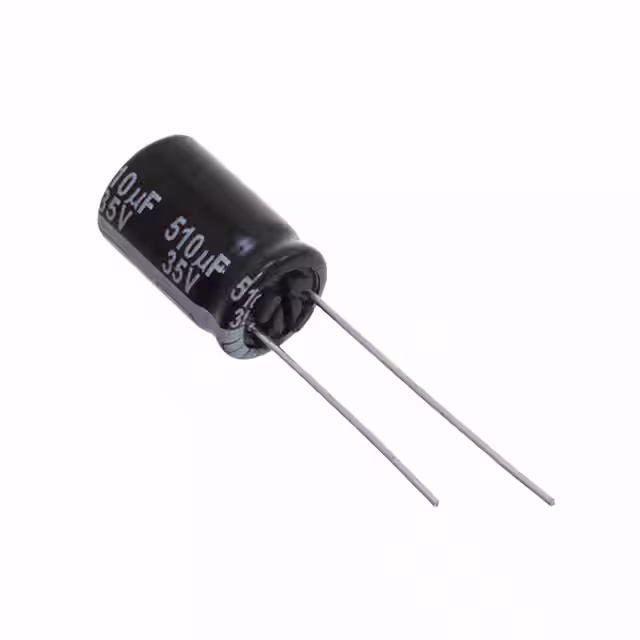

EEU-FP1V511BCAP ALUM 510UF 20% 35V RADIAL |
1,311 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FP | Active | 510 µF | ±20% | 35 V | 68mOhm @ 100kHz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEU-FS1K221LBCAP ALUM 220UF 20% 80V RADIAL |
1,360 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 220 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2 A @ 100 kHz | 44 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V271LBCAP ALUM 270UF 20% 35V RADIAL |
1,573 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 270 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 689 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-TP1V121BCAP ALUM 120UF 20% 35V RADIAL |
1,287 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 120 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 377 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
