+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2G271HACAP ALUM 270UF 20% 400V SNAP |
625 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 270 µF | ±20% | 400 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
EET-HC2W181BACAP ALUM 180UF 20% 450V SNAP |
267 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.22 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
EET-UQ2V391KACAP ALUM 390UF 20% 350V SNAP |
132 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EET-HC2S391EACAP ALUM 390UF 20% 420V SNAP |
1,346 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 420 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
EET-UQ2S221DACAP ALUM 220UF 20% 420V SNAP |
2,590 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.128 A @ 10 kHz | - | - | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EET-HC2W181DACAP ALUM 180UF 20% 450V SNAP |
519 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.22 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
EET-UQ2S331JACAP ALUM 330UF 20% 420V SNAP |
393 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
EET-UQ2S331CACAP ALUM 330UF 20% 420V SNAP |
445 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.73 A @ 10 kHz | - | - | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
EET-HC2G391JACAP ALUM 390UF 20% 400V SNAP |
471 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 400 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
EET-HC2S271LACAP ALUM 270UF 20% 420V SNAP |
137 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

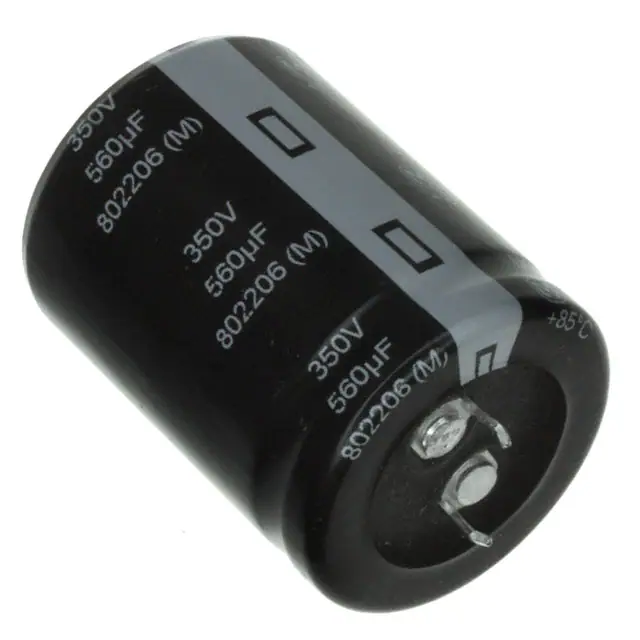

EET-UQ2V561KACAP ALUM 560UF 20% 350V SNAP |
143 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.64 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

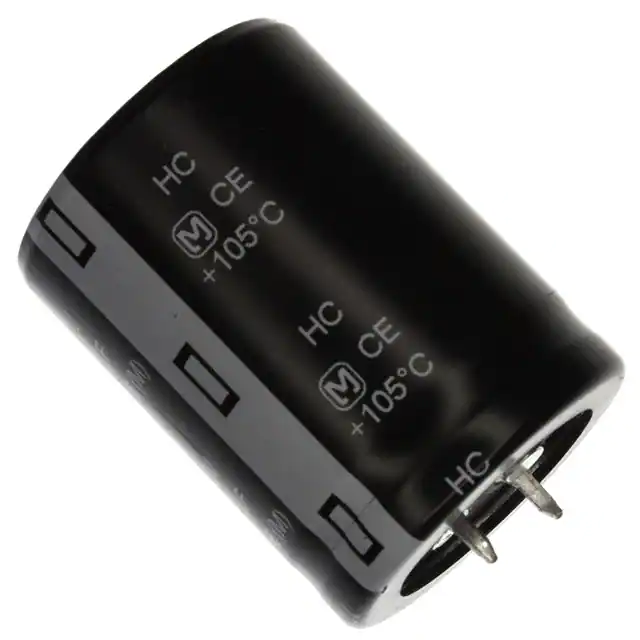

EET-HC2G391KACAP ALUM 390UF 20% 400V SNAP |
360 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 400 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

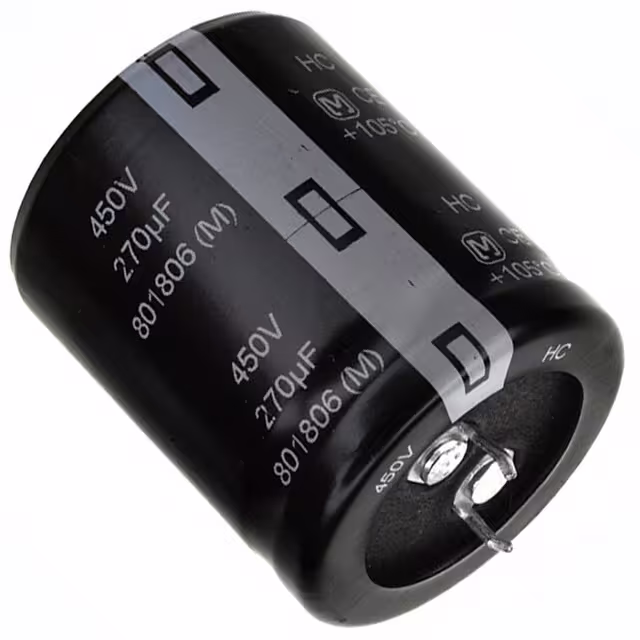

EET-HC2W271KFCAP ALUM 270UF 20% 450V SNAP |
105 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
EET-HC2V561LACAP ALUM 560UF 20% 350V SNAP |
145 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 560 µF | ±20% | 350 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

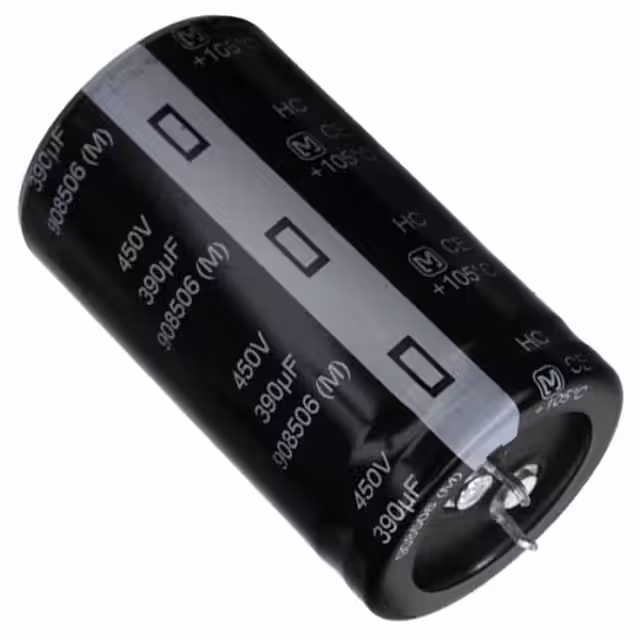

EET-HC2W391KACAP ALUM 390UF 20% 450V SNAP |
601 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
EET-HC2S391DACAP ALUM 390UF 20% 420V SNAP |
244 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 420 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

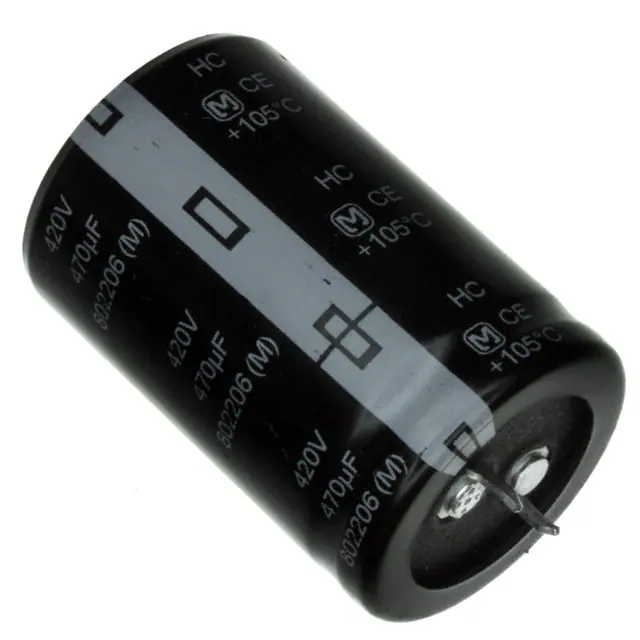

EET-HC2S471KACAP ALUM 470UF 20% 420V SNAP |
628 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 470 µF | ±20% | 420 V | 388mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.394 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

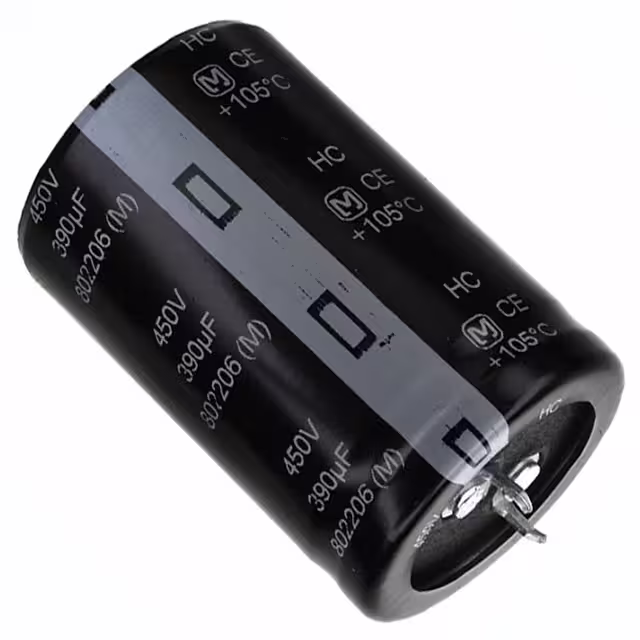

EET-HC2W391KFCAP ALUM 390UF 20% 450V SNAP |
543 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
EET-HC2V681EACAP ALUM 680UF 20% 350V SNAP |
233 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 680 µF | ±20% | 350 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
EET-HC2W391DACAP ALUM 390UF 20% 450V SNAP |
1,269 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 450 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
