+86 15815556552ёмкость алюминиевого электролиза пластыря
| Фото | Производитель Часть # | Доступность | Цена | Количество | Техническая | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

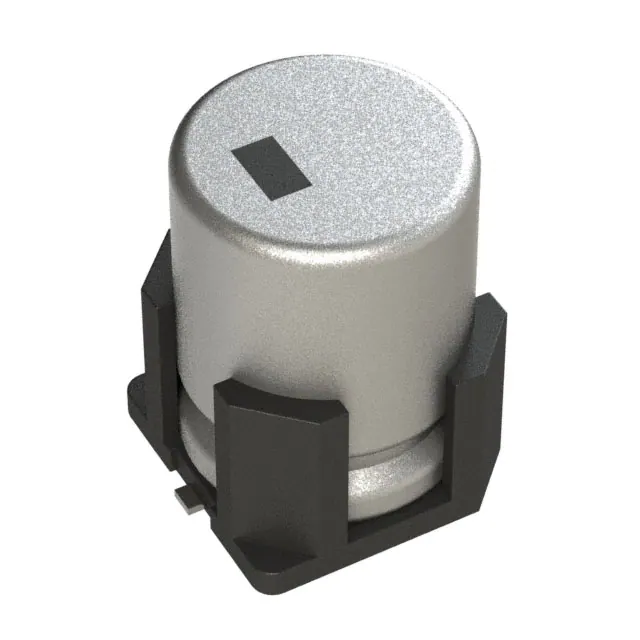

EEE-FTE221XAVCAP ALUM 220UF 20% 25V SMD |
3,423 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 220 µF | ±20% | 25 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.327 (8.30mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FTE151XAVCAP ALUM 150UF 20% 25V SMD |
808 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 150 µF | ±20% | 25 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.327 (8.30mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FS2A221BCAP ALUM 220UF 20% 100V RADIAL |
1,594 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 220 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.8 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-TK1C331UPCAP ALUM 330UF 20% 16V SMD |
1,284 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 330 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

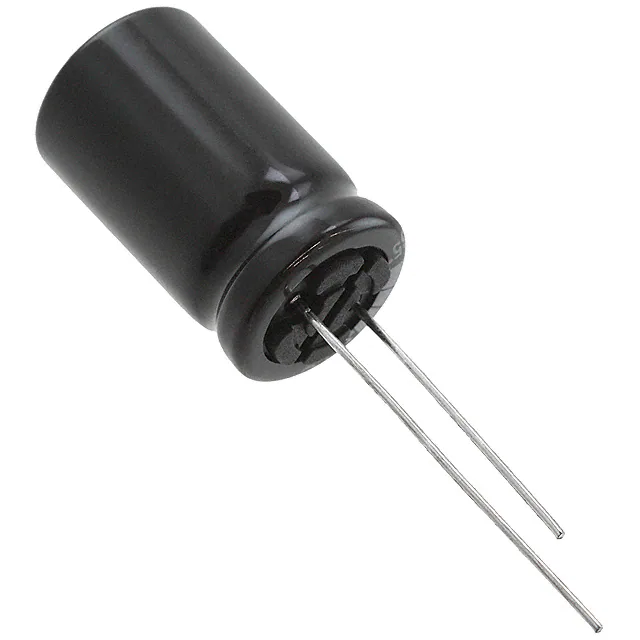

EEU-TP1V471BCAP ALUM 470UF 20% 35V RADIAL |
1,110 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 470 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.395 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FR1E332BCAP ALUM 3300UF 20% 25V RADIAL |
1,374 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 3300 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FT1E821AVCAP ALUM 820UF 20% 25V SMD |
2,372 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

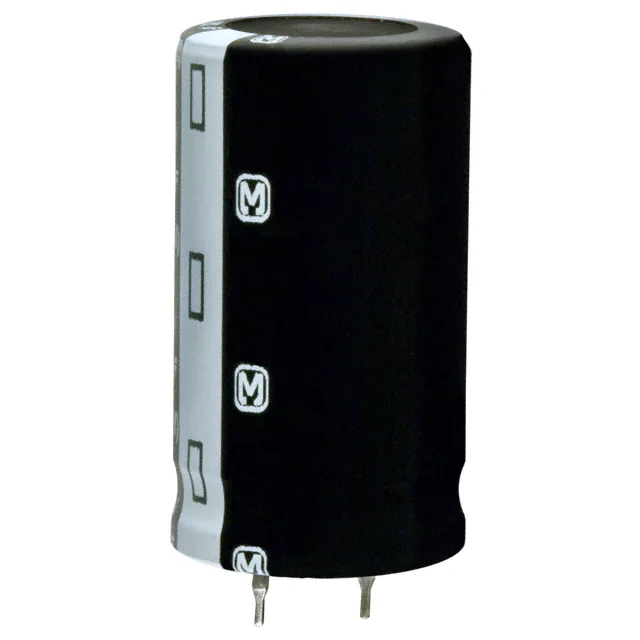

ECO-S2GA820CACAP ALUM 82UF 20% 400V SNAP |
5,605 | - |
|
Техническая |
Bulk | TS-HA | Obsolete | 82 µF | ±20% | 400 V | 1.617Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1E182BCAP ALUM 1800UF 20% 25V RADIAL |
1,008 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 1800 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.744 A @ 120 Hz | 1.75 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

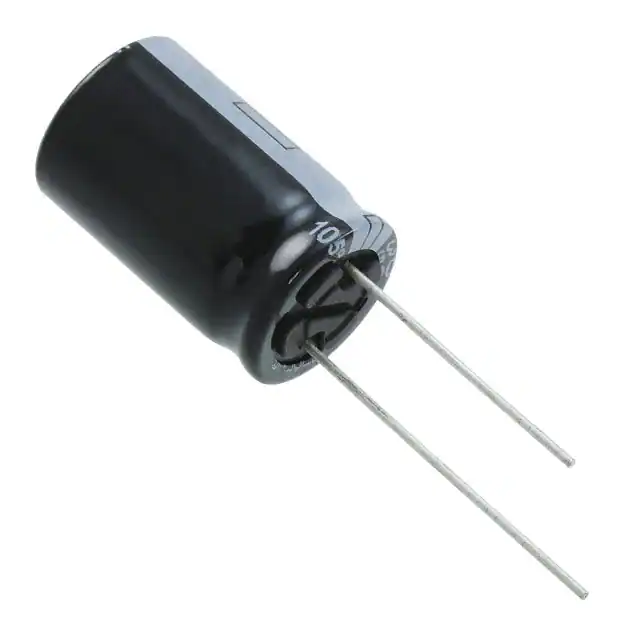

EEU-FS1V272BCAP ALUM 2700UF 20% 35V RADIAL |
751 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1E222BCAP ALUM 2200UF 20% 25V RADIAL |
248 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECO-S2GA181CACAP ALUM 180UF 20% 400V SNAP |
200 | - |
|
Техническая |
Bulk | TS-HA | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
EET-UQ2E561BACAP ALUM 560UF 20% 250V SNAP |
176 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.15 A @ 10 kHz | - | - | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
EET-HC2E391BFCAP ALUM 390UF 20% 250V SNAP |
316 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 390 µF | ±20% | 250 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
EET-HC2S151BACAP ALUM 150UF 20% 420V SNAP |
1,640 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 150 µF | ±20% | 420 V | 1.216Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
EEU-TP1E332SBCAP ALUM 3300UF 20% 25V RADIAL |
101 | - |
|
Техническая |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EET-UQ2S151CACAP ALUM 150UF 20% 420V SNAP |
177 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 150 µF | ±20% | 420 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | - | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEE-FK1E472SVCAP ALUM 4700UF 20% 25V SMD |
2,198 | - |
|
Техническая |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 4700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.98 A @ 120 Hz | 2.64 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EET-HC2C152CACAP ALUM 1500UF 20% 160V SNAP |
104 | - |
|
Техническая |
Bulk | TS-HC | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
EET-UQ2D122CACAP ALUM 1200UF 20% 200V SNAP |
122 | - |
|
Техническая |
Bulk | TS-UQ | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | - | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
